Main purpose

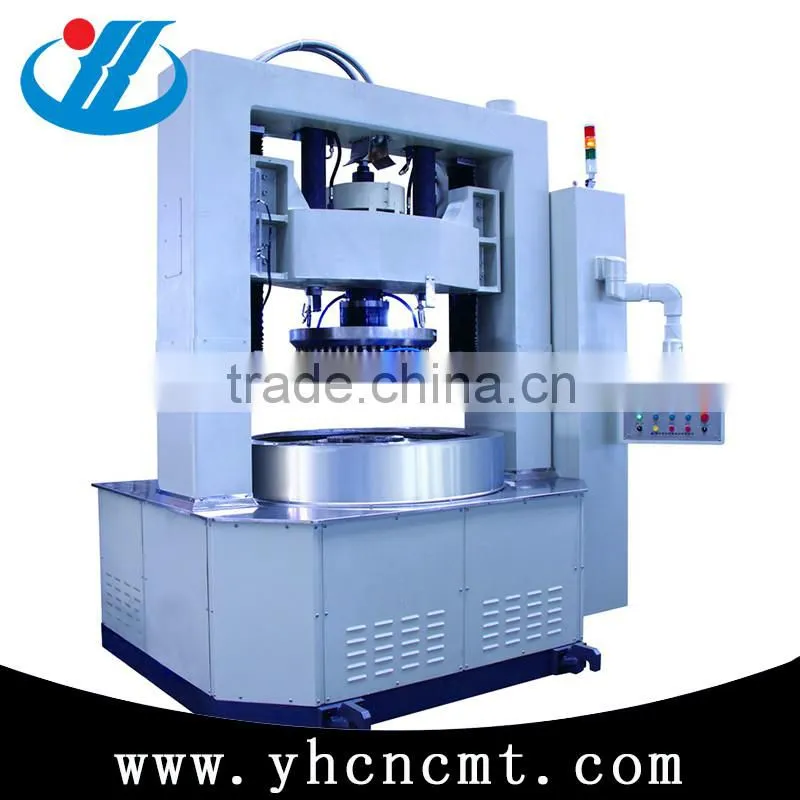

YHM77110 high precision vertical double-side surface polishing/lapping for sapphire glass
This equipment is mainly used for grinding and polishing both sides of the parallel surface of hard brittle nonmetal parts and thin metal, such as sapphire glass, valve plate, friction plate, oil pump blades etc.
Technical characters
A) It uses Gantry structure, with good stability and strong rigidity.
B) Maximum pressure is 1500 kg, with double oil cylinder, precisely control of pressure by electro-hydraulic proportional valve.
C) Upper tray adopts 304 stainless steel, strong corrosion resistance.
D) Both the upper and lower plates are equipped with cooling-heating structure, The surface temperature is controllable.
E) The speed of the sun gear, inner gear ring, the upper and lower plates can be adjusted independently, and the overall speed can match each other.
F) The machine is compact in size, space saving.
Item | Unit | Spec. |
Size of upper plate(OD*ID*T) | mm | φ1070×φ495×φ45 |
Size of lower plate(OD*ID*T) | mm | φ1070×φ495×φ45 |
Size of dressing wheel 4 pcs | Thickness=δ=20 diamond modify wheel=δ=25 | |
Pin gear | outer diameter φ327.5mm Z=64 | |
planet wheel 7 pcs | thickness size according to the thickness of workpiece. | |
Min. thickness of workpiece | mm | 0.6 |
Max size of work piece | mm | φ280 diagonal |
The precision of processed piece | mm | The precision of processed piece: single flatness and parallelism is within 0.006mm whole workpiece is within 0.008mm. workpiece with dia 50mm |
The roughness of work piece surface | no larger than Ra0.15 m polishing workpiece no larger than Ra0.125 m. | |
Flatness of upper and lower lapping plate | 0.035 | |
Vibration of lower lapping plate | 0.03 | |
The lower grinding disc speed | 10-80rpm stepless regulation | |
The upper grinding disc speed | 8-50rpm stepless | |
The sun wheel speed | 5-35rpm stepless | |
Gear speed | 3-35rpm stepless | |
The motor of lower plate | 15Kw rated speed 1440 rpm | |
The motor of upper plate | 11Kw rated speed 1440 rpm | |
The motor of sun wheel and inner gear | 3Kw rated speed 1430rpm | |
Overall dimension L*W*H | mm | 2500×2000×3000 |
Total weight | kg | 9000 |
