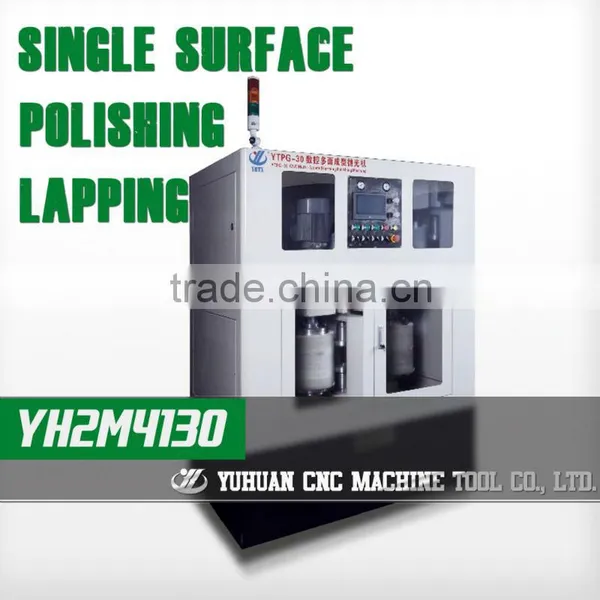

Help CenterYH2M4130 CNC Multi-faced Polishing Machine
Related Products
-
YH2M13SA-5L Vertical Double Surface Polishing MachineUS$ 20,000 - 100,000MOQ: 1 Set -
Professional Single Side Polishing Machine for CeramicUS$ 2 - 80,000MOQ: 1 Set
-
YH2M8419 High-precise Vertical Double Surface Lapping MachineUS$ 1 - 30,000MOQ: 1 Set
-
YH2M8426A1 High-precise Vertical Double Surface Lapping MachineUS$ 1 - 20,000MOQ: 1 Set
-
Good Quality Surface Grinding Machine Surface Lapping Machine Glass Grinding Machine for Double Side Polish of Thin WorkpieceUS$ 15,000 - 25,000MOQ: 1 Set
Specifications
Widely used for multi-faced surface polishing for silicon, germanium, quartz crystal, glass, ceramics, sapphire
Technical characters:
Put the workpiece on the fixture driven by servo motor to rotate, the speed is 0-8rpm. The two heads are driven by two exclusive reducer motors to rotate, the speed is 0-590rpm. Additionally, its straight-line vertical movement is driven by the screw lifter, the speed is 0-350 mm/min. The 2 left and right polishing heads are driven by exclusive air cylinder through straight guide. The polishing pressure required is precisely controlled by the precision pressure reducing valves and the electrical proportional valve. This machine is equipped with the spray devices that release the polishing liquid.
Yuhuan CNC Machine Tool Co.,Ltd is a national high-tech enterprise which is specialized in R&D,Manufacture,and Sales of precision and high-efficiency CNC grinder，industry robot, and intelligent equipment. Our products have been sold to more than twenty provinces within China and other countries such as U.S, Russia, Brazil , Mexico, India, Korea, South-east Asia countries etc.
CNC lathing machine assembly line
Double Disc Surface Grinding Machine assembly line
Lappping&Polishing Machine assembly line
Science and Research Center
Training meeting
India Customer
Factory Visiting
On Exhibition
1. Online Technical Service Support Provided
2. Technical Files Provided
3. Training On-site Provided
4. Spare Parts Repair and Replacement Provided
