Help CenterCeiling Round Led Panel Light 12W TUV GS CB CE RoHS SAA
Related Products
-
2015 Customer Size Super Thin 18W Led DownlightUS$ 15 - 25MOQ: 1 Piece -
2015 High Quality Surface Mount LED Downlight With ce Rohs Ip44 3 Years WarrantyUS$ 15 - 25MOQ: 1 Piece
-
Milky White Color Ceiling Mounted 5 Inch Led Round Panel With SpringUS$ 8 - 20MOQ: 1 Piece
-
Die-casting Shaped White Color 0.2W SMD3014 Ceiling Mounted 9W Round Panel 130MM for DiameterUS$ 8 - 20MOQ: 1 Piece
-
White Color Aluminum Frame Small Power 9W Round Panel Ceiling LightUS$ 8 - 20MOQ: 1 Piece
| Dimension | Cut-hole |
Power | Lumen | Luminous | Led | ||
| Dia(mm) | Dia(mm) | Model# | Input (AC) | Consumption | (LM) | Efficacy | Q'TY |
| (Lm/W) | |||||||
| Φ134*H13mm | Φ114mm | R13-09A | 90-265V | 9W | 585 | 65 | 45 |
| Φ163*H13mm | Φ143mm | R16-12A | 90-265V | 12W | 816 | 68 | 60 |
| Φ180*H13mm | Φ160mm | R18-12A | 90-265V | 12W | 900 | 75 | 60 |
| Φ220*H13mm | Φ200mm | R22-15A | 90-265V | 15W | 1125 | 75 | 75 |
| Φ240*H13mm | Φ220mm | R24-15A | 90-265V | 15W | 1125 | 75 | 75 |
| Φ300*H13mm | Φ280mm | R30-18A | 90-265V | 18W | 1530 | 85 | 90 |
*Product benefits
1. Short lead time & customized products-- ensured by our In-house LED SMT machine, material cutting machine etc.
2. Very competitive prices- compared to the same good quality Led products in the market. (I suggest you to disassemble a sample of our panel light, you will see how good our quality is).
3.High quality SMD LED & Driver-- The luminaire lumen output is up to 90 lm/w.

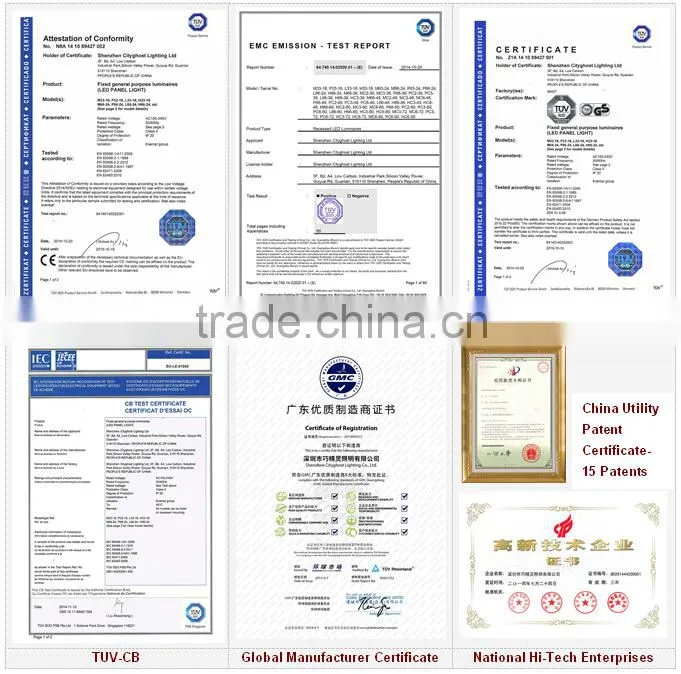

4. All products are certified with TUV-CE(EMC&LVD), RoHS, GS/CB, SAA. 3 Years warranty.
5. No noise, no flickering.
6. Saving 60% electricity cost compared to traditional panel lights.

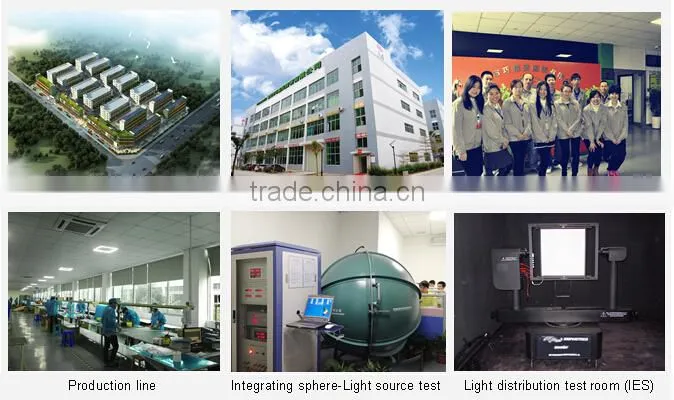

*Company info
1. Focusing on Led panel light for 7 years (since 2008)
2. 15 Patent designs.
3. Global Manufacturer Certificate -- TÜV on-site checked & approved.
4. Shenzhen Hi-Tech Enterprises Certificate.
5. Customer oriented professional service team for you.
*Each with thick foam pad & inner box, 20 pcs/ outer carton.
*One stop shopping for Led panel lights

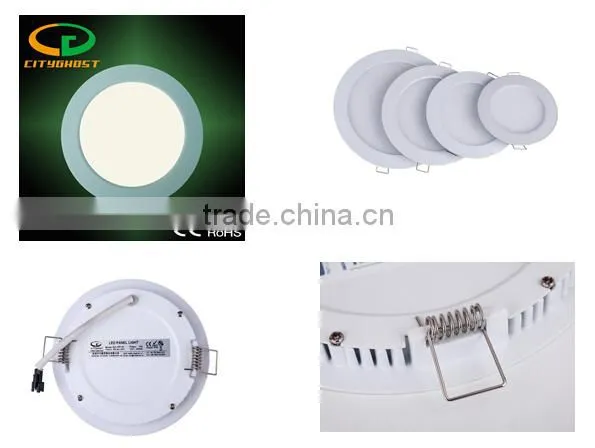

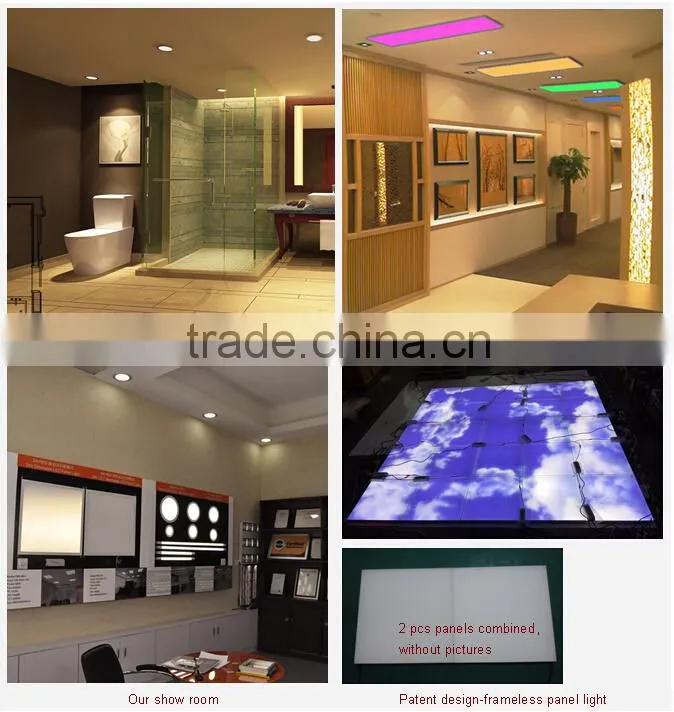

1) By outlook-- Ceiling flat panel / small round / small square, frameless / Invisible series (our patent design)
2) By light effect-- Brightness dimming, CCT dimming, RGB series.

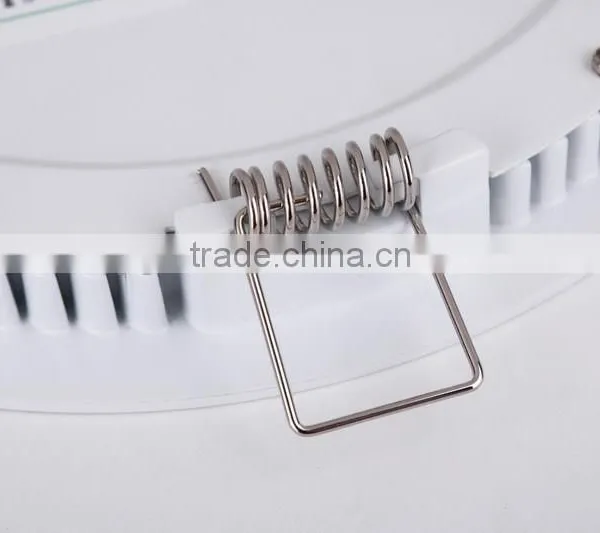

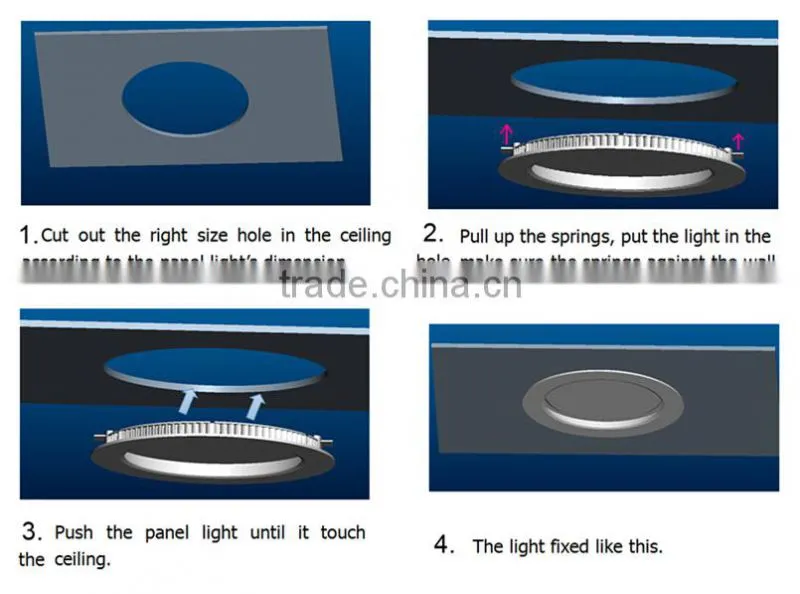

3) By installation-- Recessed / Suspended with wire rope / Spring clips mounted / Push-to-fix mounting frame (our unique design)
Delivery & After-Sales Service
FAQ
Q: What is the type of your LED sources?
A: Our high quality SMD Led is 3014 for round panel, 4014 for square panel and 5050 for RGB series. The luminaire luminous efficiency is 80-95 lm/W, CRI>80.
Q: What is the material of your LGP?
A: Our LGP is imported PMMA, "Missubishi" from Japan or "Chimei" from Taiwan with thickness 4mm.
Q: What is the material of your Aluminum frame and diffuser plate?
A: Our Aluminum frame is high quality & durable 6063#. We use fire proof PC diffuser with thickness 1.5mm.
Remarks
1) Before using the panel light, please check if the local voltage is suitable.
2) Ensure that the connection is secure and correct to avoid short circuit that may lead to damaging.
