Single Phase Ac Solid State Relay Ssr Solid State Relay
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
XMT Industrial High Quality And High Efficiency Temperature Controller
-
Rex-c900 Digital Automatic Thermostat Heating Rex-c900 Temperature Controller
-
ST828 Hot Runner Temperature Controllers PID
-
ST828 Digital Thermostat High Temperature Controller Can With RS485
-
Kitchen Cooking Candy Digital Temperature Display Thermometer
-
Multifunctional High Stability Digital Outdoor Thermometer
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Morning-E | |

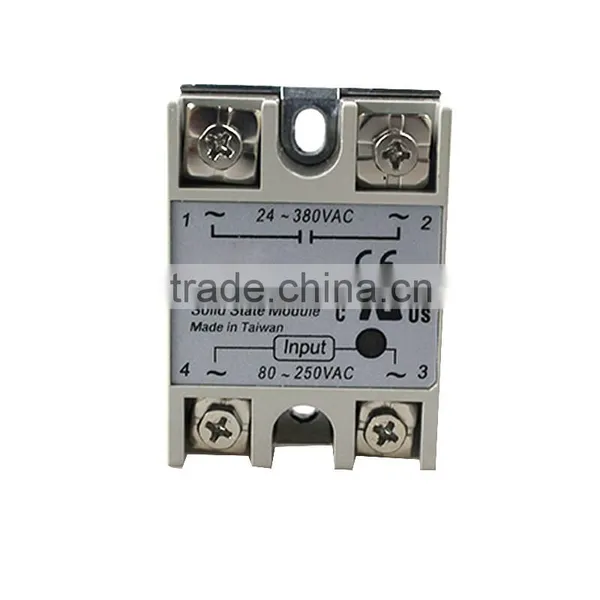

| Model Number | SSR-40AA | Theory | Solid State Relay | |
| Usage | General Purpose | Size | Miniature | |
| Protect Feature | Sealed | Contact Load | High Power |
Product Description
| SSR-AA Siries (Single phase AC control AC) | SSR-DA Siries (Single phase DC control AC) | ||
| Load Current | 10A,15A,20A,25A,30A,40A ,50A,60A,75A,80A,90A,100A | Load Current | 10A,15A,20A,25A,30A,40A, 50A,60A,75A,80A,90A,100A |
| Load Voltage | 24-480VAC | Load Voltage | 24-480VAC |
| Control Voltage | 50-250VAC | Control Voltage | 3-32VDC |
| Control Current | AC ≤12mA | Control Current | DC 4-25mA |
| On Voltage | ≤1.5V | On Voltage | ≤1.5V |
| Off Leakage Current | ≤4mA | Off Leakage Current | ≤2mA |
| On-Off Time | ≤10ms | On-Off Time | ≤10ms |
| Dielectric Strength | 2500VAC | Dielectric Strength | 2500VAC |
| Insulation Resistance | 1000MΩ/500VDC | Insulation Resistance | 1000MΩ/500VDC |
| Ambient Temperature | (-30℃-75℃) | Ambient Temperature | (-30℃-75℃) |
| Mounting Methods | bolting | Mounting Methods | bolting |
| The Work Instructions | LED | The Work Instructions | LED |
| Weight | 132g | Weight | 132g |
| Temperature Controller: XMT-7100 Series (48*24mm) : AC/DC85-260V DC12V DC24V REX-C Series: REX-C100 REX-C400 REX-C700 REX-C900 ST -500 Series: ST504 ST506 ST507 ST508 ST509 XMT-7000 Series(PID): A(96*96) D(72*72) E(48*96) F(96*48) G(48*48) XMT-9000 Series(PID): A(96*96) D(72*72) E(48*96) F(96*48) G(48*48) XMT-7000P Series(PID, 32 time-interval ): XMTD-7000P XMTG-7000P ST828 with RS485 Series: Analog Series:
Thermocouple & Thermal Resistance: K-Type J-Type PT100 Solid State Relay(SSR): 25DA 25AA 25DD 40DA 40AA 40DD |
We are a professional manufacturer of Solid State Relay for many years. Our company has formed a perfect full-service system integrated by the R&D, manufacture and domestic trading and foreign sales.Based on the trading belief 'Focus on customers,' our company has been calmly handled the market oscillations. For our trading process, we are not just selling our product but also focusing on customers' satisfaction......
