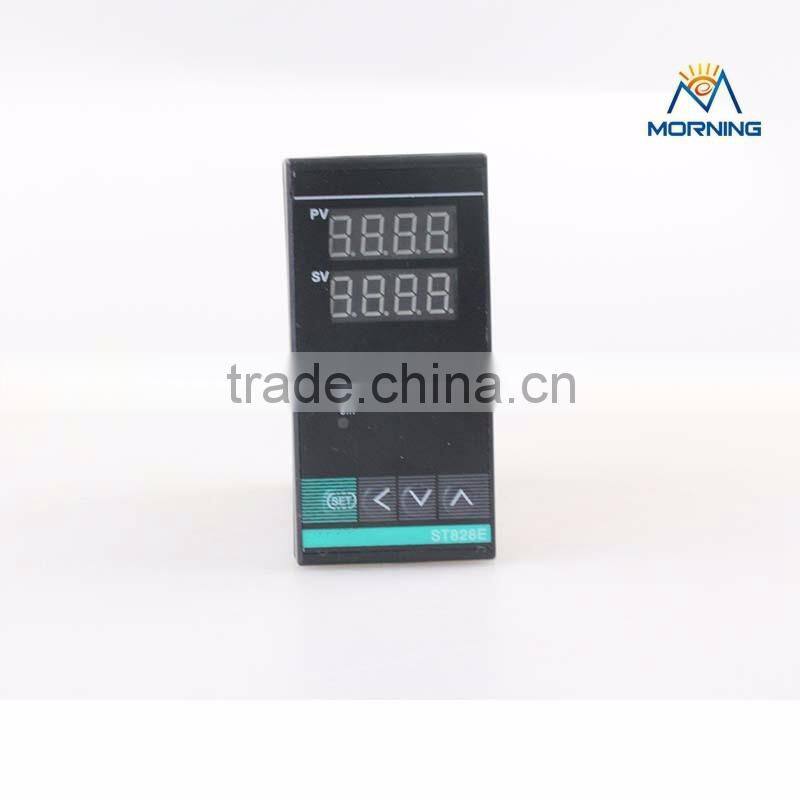

Help CenterST828 Digital Thermostat High Temperature Controller Can With RS485
Related Products
-
XMT 7100 Size 48*24mm PID Digital Display Temperature Controller PriceUS$ 13.04 - 18.8MOQ: 1 Piece -
XMT 7000P 72*72mm Digital Display Programmable Temperature Controller ManufacturersUS$ 21.024 - 34.4MOQ: 1 Piece
-
XMTD Intelligent Pid Temperature Controller for Heat PressUS$ 11.36 - 16.7MOQ: 1 Piece
-
XMT 9000 72*72mm Egg Incubator Display Xmtd Temperature ControllerUS$ 11.232 - 18.4MOQ: 1 Piece
-
ST828 LED Display 48*48mm Temperature Controller Can With RS485US$ 21.024 - 44.4MOQ: 1 Piece
1. Input | |
Thermocouple | K,E,J,N,Wu3/Re25,S,T,R,B |
Thermal resistance | Pt100 |
Analogue ( common channel with thermocouple) | 0-20mV,0-50mV |
Analogue (separate channel) | DC 0-20mA/DC 4-20mA |
Analogue | special input channel of two wire transducer (DC24V feed) |
Display Temperature unit | Celsius and Fahrenheit adjustable as you need |
2. Accuracy | |
thermocouple | 0.3% |
Thermal resistance | maximum resolution 0.1 degrees |
Analog input | maximum resolution 0.001, |
Cold-end Compensation deviation | in the range of ±2℃(0~502℃ can be amended by the software) |
3. Display | |
PV,SV | -1999 ~ +1999 |
Indicates of output,alarm,self-conditioning | 8 digits,8 segments LED display; 8 digits indicator light |
4. Controlling | |
Control Type | Artificial intelligence PID Control, ON/OFF Position Control (Independent return difference), Time Scale (P/T) |
Voltage pulse | 0~12V, (suitable for the solid relay SSR) |
Analog output(PID or Transmitting) | DC 4-20mA, DC 0-10mA |
Alarm function output | 2 groups output at most, 12 modes. |
5. Digital communication | |
MODBUS-RTU Mode |
|
6. Others | |
Using environment | 0~50℃, 30~85% RH no corrosive atmospheres environment |
Weight | about 0.5kg |
| Temperature Controller: XMT-7100 Series (48*24mm) : AC/DC85-260V DC12V DC24V REX-C Series: REX-C100 REX-C400 REX-C700 REX-C900 ST -500 Series: ST504 ST506 ST507 ST508 ST509 XMT-7000 Series(PID): A(96*96) D(72*72) E(48*96) F(96*48) G(48*48) XMT-9000 Series(PID): A(96*96) D(72*72) E(48*96) F(96*48) G(48*48) XMT-7000P Series(PID, 32 time-interval ): XMTD-7000P XMTG-7000P ST828 with RS485 Series: Analog Series:
Thermocouple & Thermal Resistance: K-Type J-Type PT100 Solid State Relay(SSR): 25DA 25AA 25DD 40DA 40AA 40DD
|
1. Shipping Information
SHIPPING (Normally arrive port time in working days) | ||||
DESTINATION | Express/Courier DHL/FedEx/TNT/UPS | Ship by sea | Ship by air | Ship by EMS |
North America | 3-7 days | 15-24 days | 5-7 days | 10-12 days |
South America | 3-7 days | 15-25 days | 5-7 days | 10-12 days |
European countries | 3-7 days | 20-30 days | 5-7 days | 10-12 days |
Africa Countries | 3-7 days | 45-50 days | 5-7 days | 10-12 days |
The Middle East | 3-7 days | 15-25 days | 5-7 days | 10-12 days |
Australia | 3-7 days | 10-15 days | 5-7 days | 10-12 days |
2. Packaging Information
3. Terms Of Payment
Payment Terms: We accept any payment, Such as T/T, L/C, PayPal, Western Union, D/P, D/A, O/A, MasterCard, Cash, etc
We are a professional manufacturer of Temperature Controller for many years. Our company has formed a perfect full-service system integrated by the R&D, manufacture and domestic trading and foreign sales.Based on the trading belief 'Focus on customers,' our company has been calmly handled the market oscillations. For our trading process, we are not just selling our products but also focusing on customers' satisfaction......
1. 24-hour Online service
Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale,
2. Competitive price
All of our products are supplied directly from factory. So the price is very competitive.
3. Warranty
All products have a three-year warranty.
4. OEM/ODM
With 15-year experiences in this field, we can provide customers with professional suggestion
To promote common development.
5. Distributor
The company now recruit distributor and agent all over the world. Prompt delivery and professional after-sales service are our priority, which makes us to be your reliable partner.
