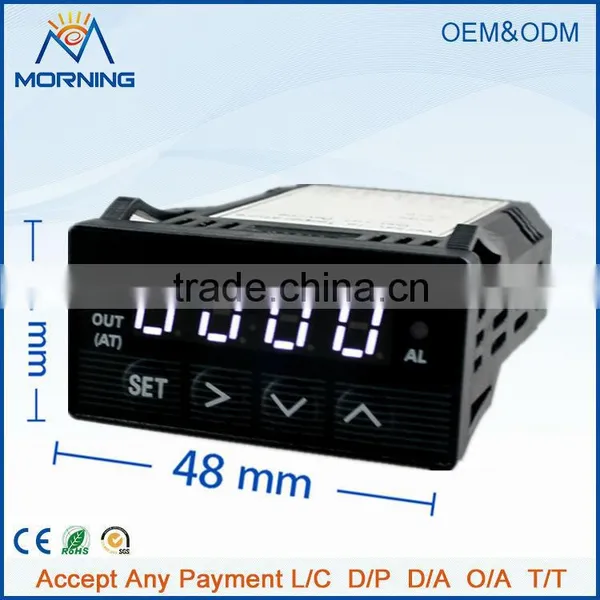

Help CenterXMT7100 Enail Panel Size 48*24mm Mini White Led Digital Display Industrial Use DC 12V PID Auto Tuning Temperature Controller
Related Products
-
XMT 7100 48*24mm Universal Digital Thermostat Timer Temperature ControllerUS$ 13.04 - 18.8MOQ: 1 Piece -
XMTG9411 Panel Size 48*48 Digital PID Control Xmtg Temperature ControllerUS$ 12.32 - 18.4MOQ: 1 Piece
-
Ssr-40DA 40A Ssr Single Phase Solid State RelayUS$ 2.12 - 3.4MOQ: 1 Piece
-
Single Phase Ac Solid State Relay Ssr Solid State RelayUS$ 2.12 - 3.4MOQ: 1 Piece
-
XMT Industrial High Quality and High Efficiency Temperature ControllerUS$ 11.232 - 18.4MOQ: 1 Piece
Brief introduction | |
|
XMT -7100 Series Intelligent PID Temperature Controller are the multi-functional regulators adopting the micro processing units. The instrument has automating function to self adapt to different systems. The instrument can also be degrees Celsius, degrees Fahrenheit temperature. Five control optional: 0.One alarm relay 1.Relay contact PID output 2.One alarm relay output;SSR all the way non-contact level PID output 3.One alarm relay output;SSR-level all the way back to poor control output 4.Backlash relay control output | |
Main technologies indicates | |

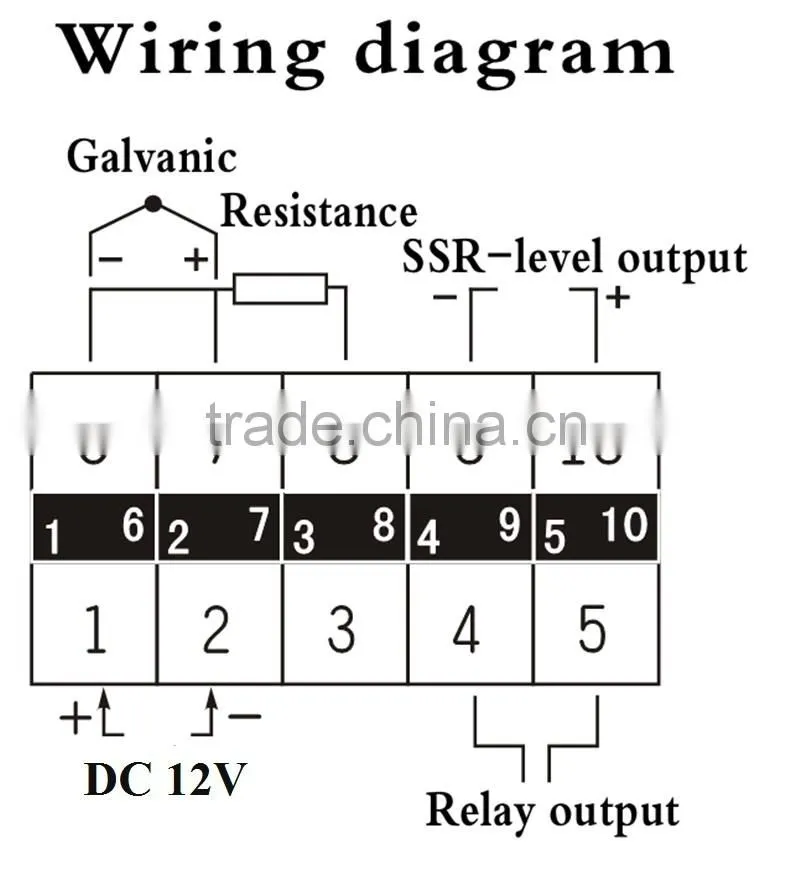

Input |

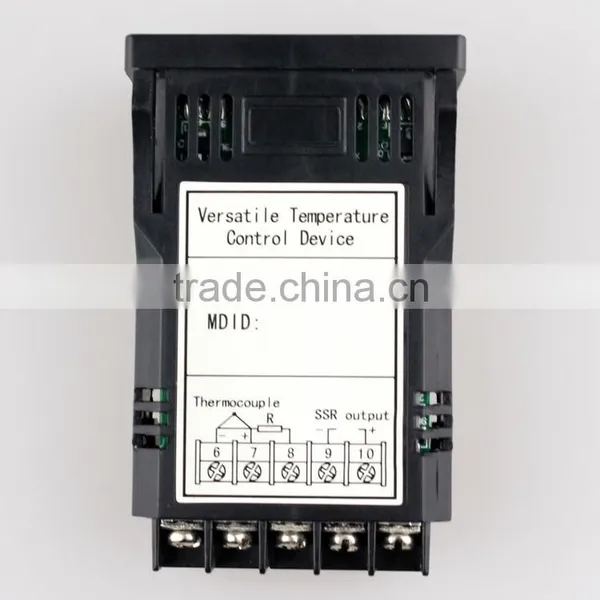

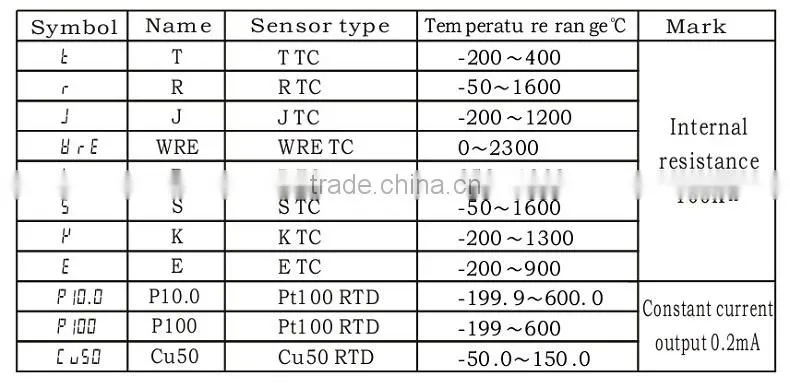

RTD input(Pt100,Cu50) ; Thermocouple input(T, R, J, B, S, K, E, WRe3-WRe25) |

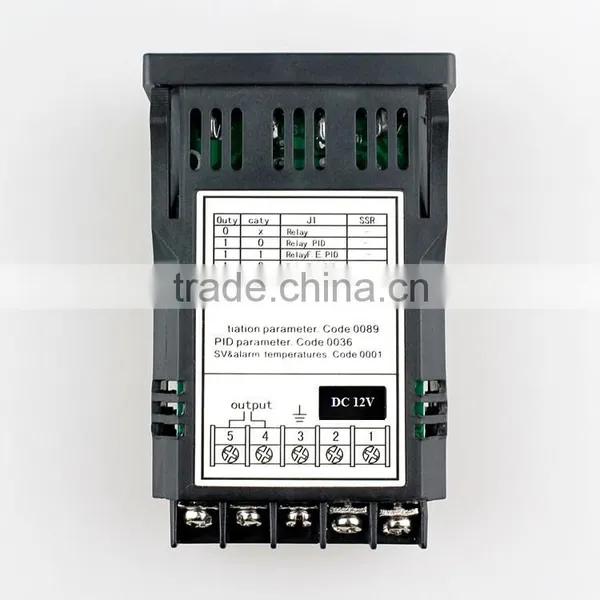

power supply |
DC 12V |
Contact capacity |
AC 250V/3A |
Contact life |
1×105 |
SSR-level |
8V(Open-circuit voltage); 30mA(short-circuit current) |
Temperature range |
-199.9 ~ +2300℃ |
Measure accuracy |
±0.2%FS |
Environment |
0~+50℃;≤85%RH |
Display |

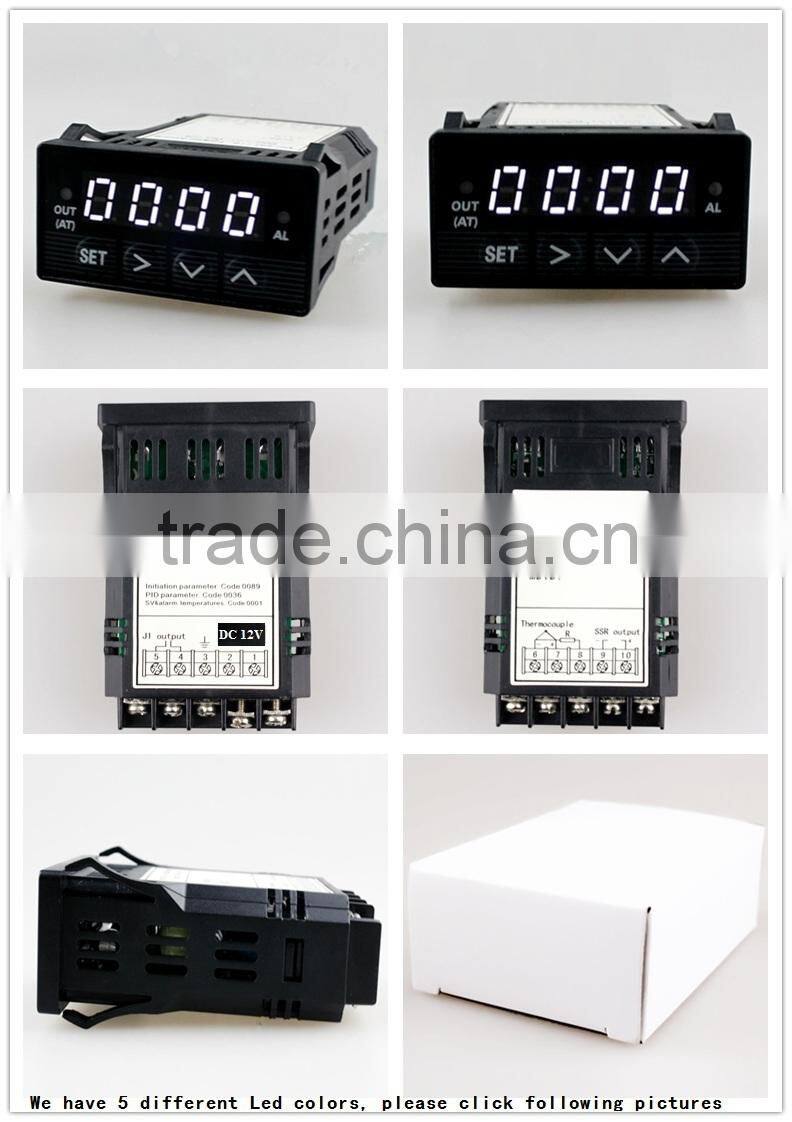

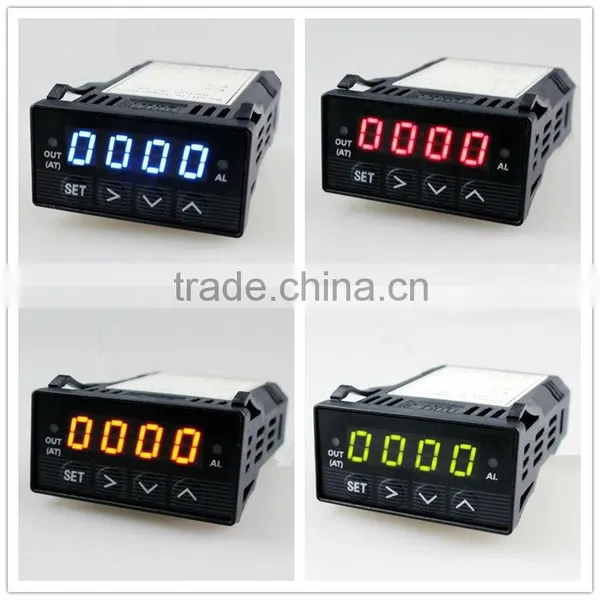

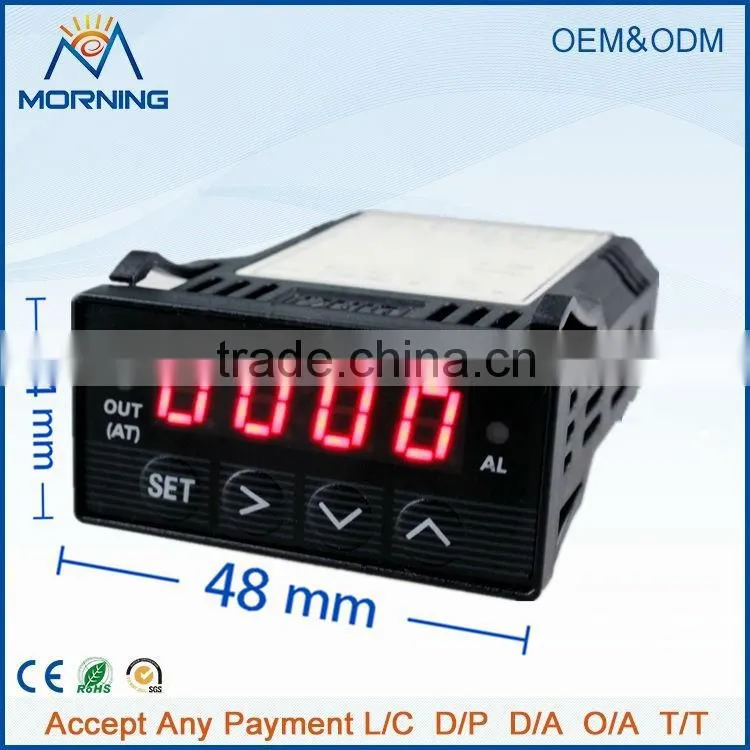

LED(red, blue, white, green, orange) |

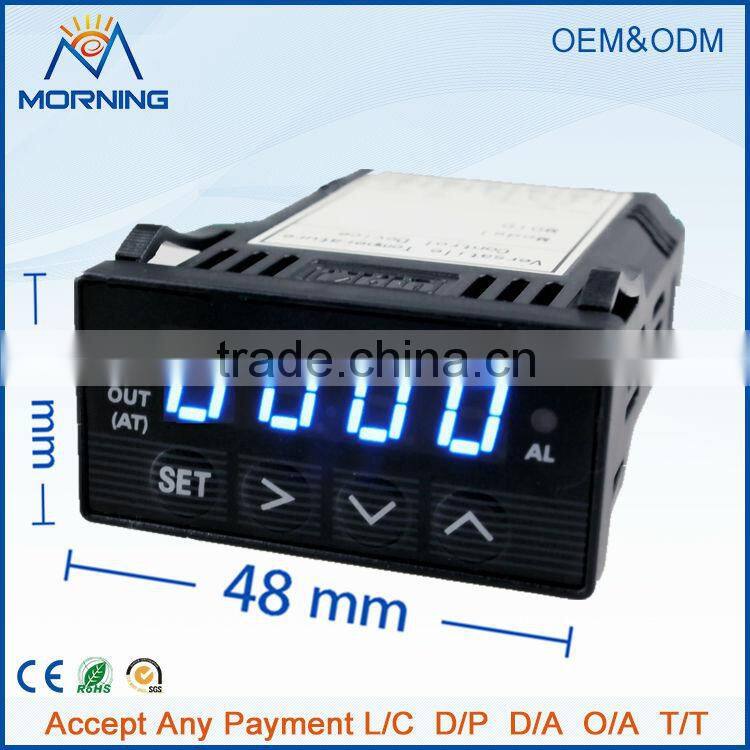

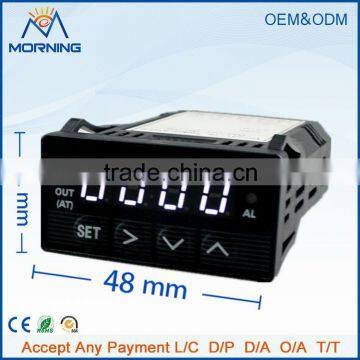

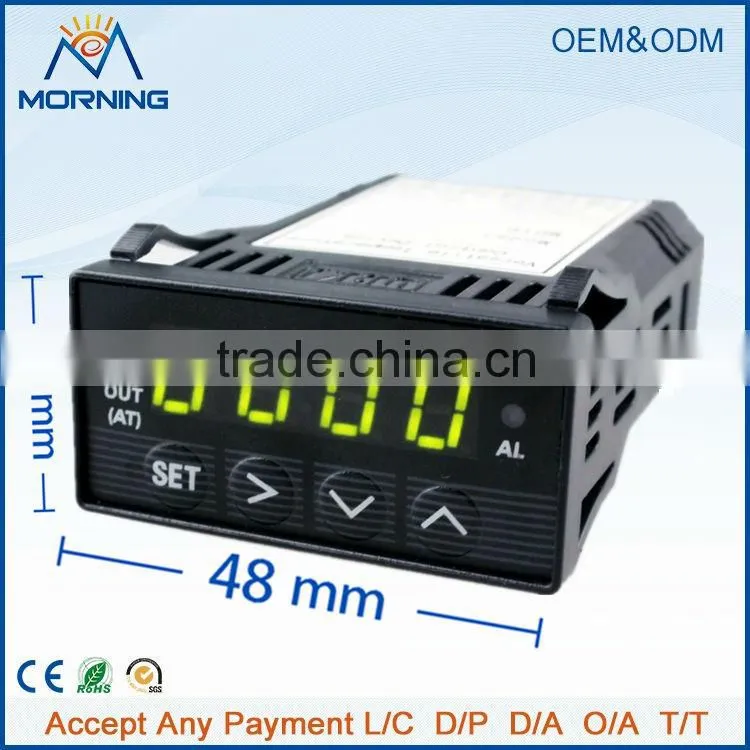

Outline Dimension |
48×24×75mm |
Panel Dimension |
45×22mm |
