Home > Instruments & Meters > Meter for Electricity > Voltage Meter > ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere

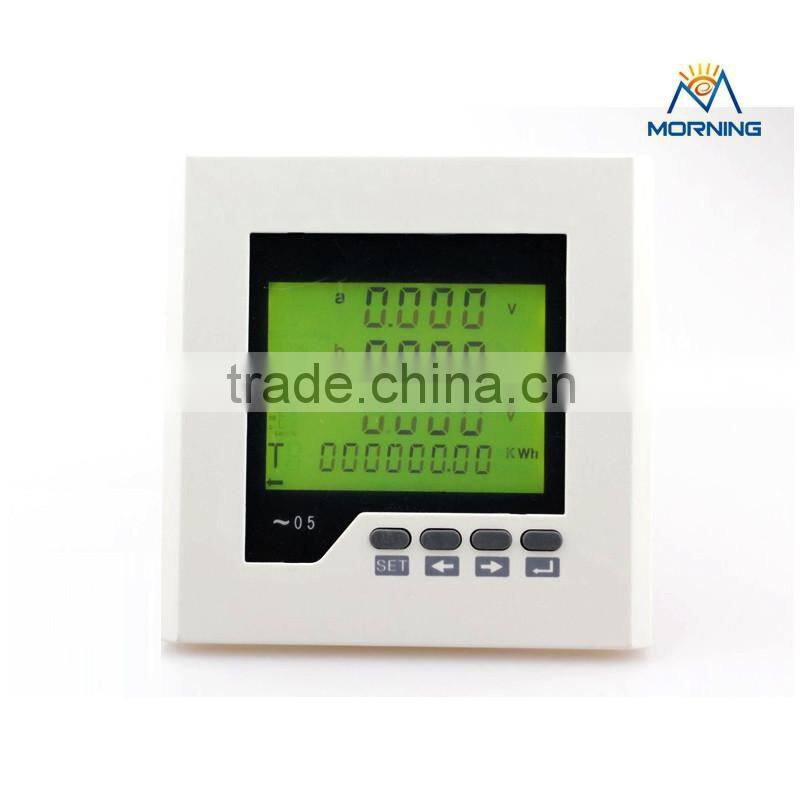

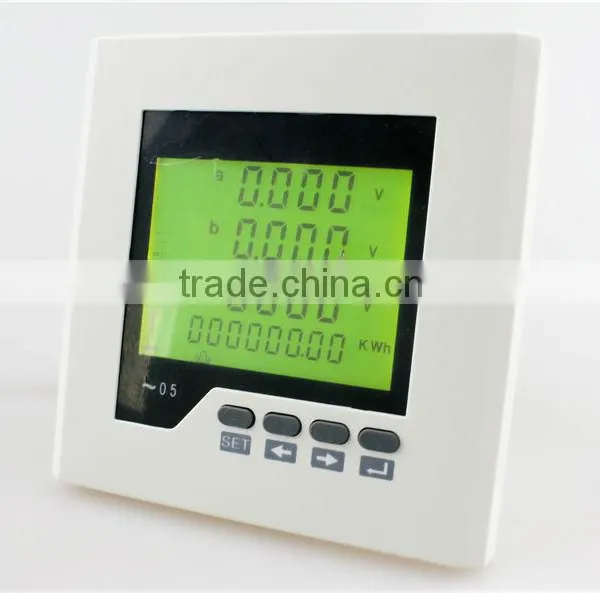

ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere

Name: ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere
Brand: Morning
SKU: 129096149
Availability: InStock

ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere thumbnail-1

ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere thumbnail-2

ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere thumbnail-3

ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere thumbnail-4

ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere thumbnail-5

ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere thumbnail-6

ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere photo-1

ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere photo-2

ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere photo-3

ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere photo-4

ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere photo-5

ME-3D2Y Frame Size120*120mm LCD Display Mini Digital Panel Meter, Can Measure Voltage or Ampere photo-6

US$ 30.08 - 44.3 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Morning

Model Number:

ME-3D2Y

Contact Supplier Request Quote Chat Now

Wenzhou Morning Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Morning

Model Number ME-3D2Y

Display Type Digital Only

Measuring Range 0~1999

Accuracy Class 0.1

Operating Temperature 10℃~+55℃

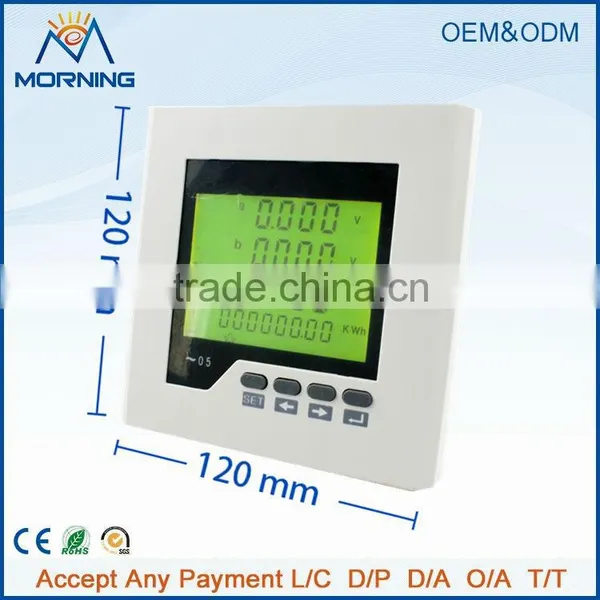

Dimensions 120*120mm

Technical Index

Accuracy Measurement

current

class 0.5

Voltage

class 0.5

active power

class 0.5

reactive power

class 0.5

power factor

class 0.5

frequency

±0. 02Hz

active energy

class 0.5/class 0.2

reactive energy

class 1.0/class 2.0

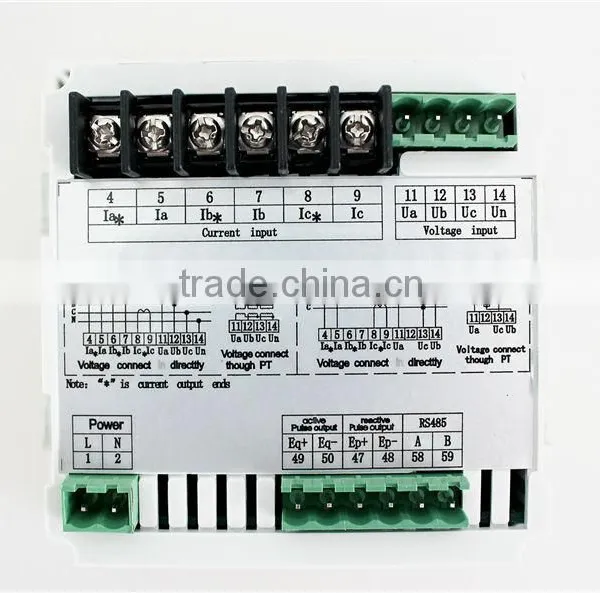

Input Measurement

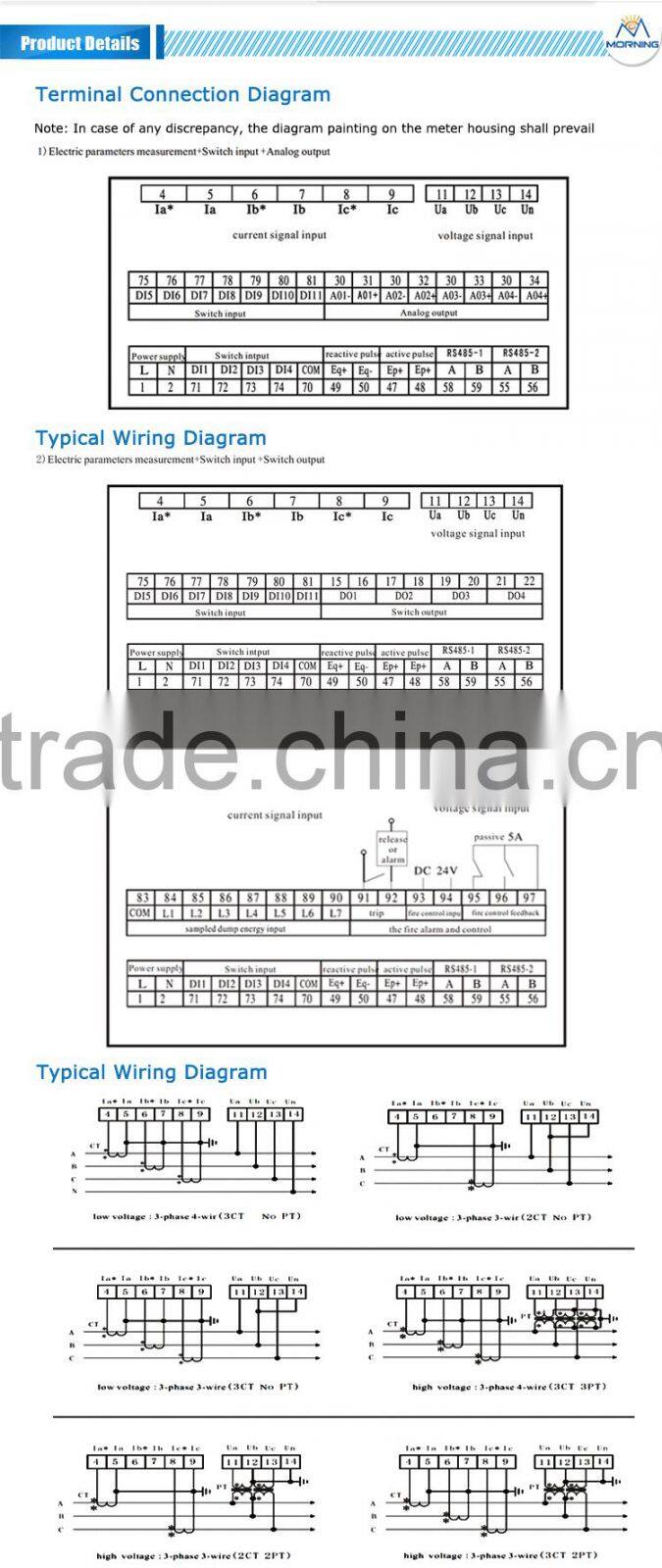

Wiring

single-phase,3-phase 3-wire,3-phase 4-wire

Rated current

AC 1A,AC 5A

Rated voltage

AC 57.7V,AC 100V,AC 220V,AC 380V

Overload

Voltage:Sustained:1.2times;Instantaneous:2times/1s

Current:Sustained: 1.2 times; Instantaneous: 10 times/ 5s

power consumption

Voltage: <1VA (per phase),Current: <0.4VA (per phase)

impedance

Voltage: >300KΩ , Current: <20mΩ

frequency

45~65Hz

Power supply

Working range

AC/DC 80V~270V,AC220V,AC380V,AC100V

Power consumption

<4VA

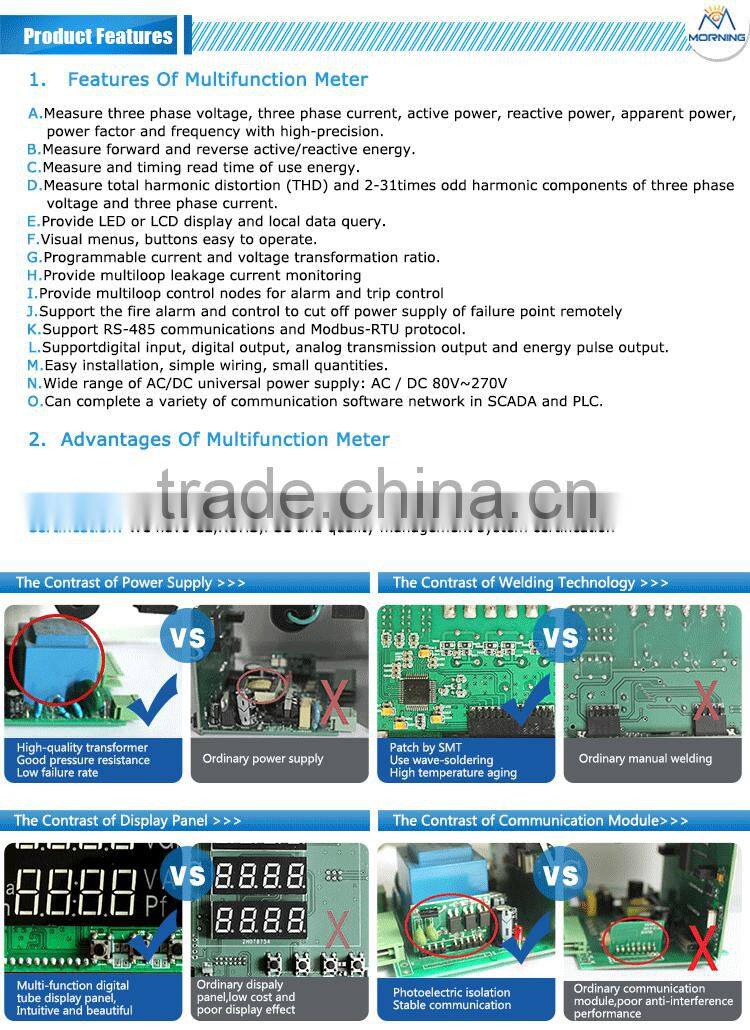

Functional Module
Communication interface	1 loop RS-485 Communication, MODBUS-RTU protocol
Communication interface	Baud rate: 2400 ~ 19200bps, Default: 2400bps
Switching value input	4 loops switching value input, dry joint
Switching value output	3 loops relay output, capability: AC 250V/5A,DC 30V/5A
Transmission output	1 loop analog output: 0/4~20 mA or 0~5/10 V
Energy pulse output	2 loops energy pulse output,constant:8000
Environment
Operational environment	-10℃~+55℃
Storage environment	-25℃~+70℃
Relative humidity	≤93 %,in the place without corrosive gas
Height above sea level	≤2500m
Safety
Insulation resistance	> 100MΩ
AC withstand voltage	AC 2KV
Electro Magnetic Compatibility
Electro-Static discharge	class 4
Electrical Fast Transient pulse train
Electrical surge
Outline Dimension
External Dimension( mm )	120×120;80×80;96×48;96×96;72×72;48×48;120x60;160x80
Cutout Dimension( mm )	111×111;76×76;92×45;92×92;68×68;45×45;114x56;152x76

Specification Matching
Model Function	Measurement	Extended Function(Optional)				Display		Cutout Dimension (mm)	External Dimension (mm)
Model Function	single-phase electricpara meters	Switch input	Switch output	Transmission output	Communication interface	LED	LCD	Cutout Dimension (mm)	External Dimension (mm)
ME-D1		2	2	1	1	√	-	152X76	160x80
ME-D1Y				3		-	√	152X76	160x80
ME-D2				3		√	-	111X111	120×120
ME-D2Y				3		-	√	111X111	120×120
ME-D3				3		√	-	92X92	96×96
ME-D3Y				1		-	√	92X92	96×96
ME-D4				1		√	-	114X56	120x60
ME-D4Y				1		-	√	114X56	120x60
ME-D5				1		√	-	92X45	96×48
ME-D5Y				1		-	√	92X45	96×48
ME-D6				1		√	-	68X68	72×72
ME-D6Y				1		-	√	68X68	72×72
ME-D7				1		√	-	76×76	80×80
ME-D7Y				1		-	√	76×76	80×80
ME-D8				1		√	-	45×45	48×48

Model Function	Measurement				Extended Function(Optional)				Display		Cutout Dimension (mm)	External Dimension (mm)
Model Function	3-phase electric parameters	Multi rate	Harmonic	Fire monitoring	Switch input	Switch output	Transmission output	Communication interface	LED	LCD	Cutout Dimension (mm)	External Dimension (mm)
ME-3D2	√	-	-	-	4	4	4	2	√	-	111X111	120x120
ME-3D2Y	√	-	-	-	4	4	4	2	-	√
ME-3FD2Y	√	√	-	-	4	4	4	2	-	√
ME-3HD2Y	√	-	√	-	4	4	4	2	-	√
ME-3LD2	√	-	-	√	4	-	-	2	√	-
ME-3LD2Y	√	-	-	√	4	-	-	2	-	√
ME-3FHD2Y	√	√	√	-	4	4	4	2	-	√
ME-3D3	√	-	-	-	4	4	4	2	√	-	92X92	96×96
ME-3D3Y	√	-	-	-	4	4	4	2	-	√
ME-3FD3Y	√	√	-	-	4	4	4	2	-	√
ME-3HD3Y	√	-	√	-	4	4	4	2	-	√
ME-3LD3	√	-	-	√	4	-	-	2	√	-
ME-3LD3Y	√	-	-	√	4	-	-	2	-	√
ME-3FHD3Y	√	√	√	-	4	4	4	2	-	√
ME-3D7	√	-	-	-	-	-	-	1	√	-	76×76	80×80
ME-3D7Y	√	-	-	-	-	-	-	1	-	√	76×76	80×80
ME-3D6	√	-	-	-	-	-	-	1	√	-	68X68	72×72
ME-3D6Y	√	-	-	-	-	-	-	1	-	√	68X68	72×72
ME-3D8	√	-	-	-	-	-	-	1	√	-	45×45	48×48
Note: The number of optional extended functions would be the maximum number we can extendin norma conditions.If you have any special request, please contact with our technical department.
