Help CenterJVR800-1 Multifunction 3-phase and Sequence/Overvoltage/Undervoltage Monitoring Relay With Counting and Timing
Related Products
-
Flash Warning Lights and Bulb Signal TowerUS$ 3.04 - 10.5MOQ: 1 Piece -
ME-S5 Five Layer Electrical Plug Socket, Electrical Outlet With 5 Meters Power Line and no USBUS$ 10.24 - 15MOQ: 100 Pieces
-
ME-S4 Four Layers Electrical Plug Socket With 2 USB Control in Each Layer and 5 Meters Power LineUS$ 9.904 - 14.51MOQ: 100 Pieces
-
ME-S4 Four Layers Electrical Plug Socket With 4 USB Control in Each Layer and 5-meter Power LineUS$ 10.904 - 15.98MOQ: 100 Pieces
-
ME-S2 Wholesale Two Layer Electrical Plug Socket/ Vertical Tower Extension Socket Outlet With 4 Usb Port and 1M Cable LengthNegotiableMOQ: 1 Piece
| Items | standard |
| Max counting times | 999999 times |
| Max timing | 9999h59m |
| Maxium speed | 5HZ |
| Total timing error | ≤0.01% |
| Total timing error | -10~+55'C humidity ≤85%RH on condensation |
| weight | 85g |
| power supply voltage | 3-phase 220-450VAC |
| voltage display | 150-500V |
| voltage measurment accuracy | 0.01 |
| Counting signal accuracy | DC or AC signal |
| contact output capacity | 2A/250VAC |
| data keeping | 10 years |
| frequency | 50/60HZ |
|
|
Digital panel meter D 3D 3HD 3FHD 3LD DD UIF 3UIF DUI Temperature and humidity controller: DV AV 3AV DA AA 3AA F P 3P Q 3Q H 3H AI,DI,AV,DV,P,F,PF,3I,3V,3P,3Q,Z AV DV DA AA F Shunt: |

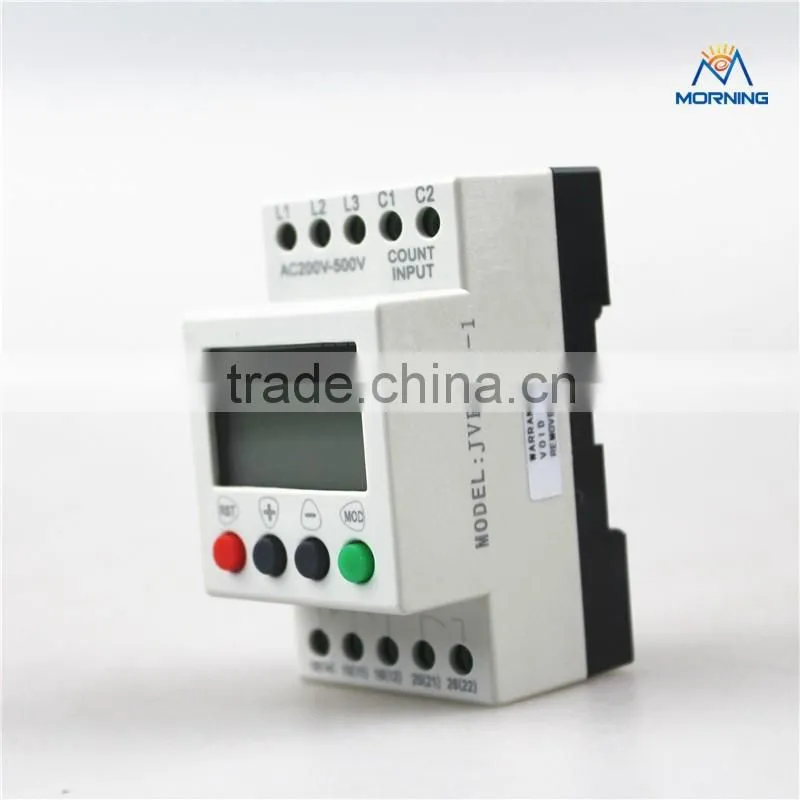

1.Introduction of 3-phase And Voltage Relay
ME-JVR(800-1) is Multi-function monitoring and protection device which includes timing, counting and voltage show, over-voltage and under-voltage protection, open-phase advanced microprocessor chip and nonvolatile storage technology. Chinese LCD is easy to operate, show the current supply voltage, cut off power to protect the equipment when meet over-voltage, under-voltage, phase loss and phase reversal faults. It is fit for various of passenger eievator, goods lift, hoist, machine tool and other devices which frequent start.
2.Protective Funtion of 3-phase And Voltage Relay
A.Phase Loss protection:power will be cut off during phase lose;
B.Phase sequence protection:power will be cut off during when wrong phase sequence;
C.Under voltage protection:power will be cut off during under-voltage;
D.Over voltage protectionpower will be cut off during over-voltage;
E.Phase unbalance protection;
F.Voltage display:show the current supply voltage;
G.Fault records:recording the times and the tatal time of the errors.
3.Feature of 3-phase And Voltage Relay
A.Built-in LCD and keypad afford a precise,digital setting;
B.Three-phase monitoring of phase sequence, phase loss, over- and undervoltage;
C. Adjustable over- and under voltage threshold ;
D.Independent adjustable delay time for phase sequence, phase loss, overvoltage, undervoltage;
E.Powered by the measuring circuit;
F.1 C/O & 1NC contacts;
G.with Timing, counting and faulure recording
4.Applications of 3-phase And Voltage Relay
A.Pumps;
B.Fans;
C.Blowers;
D.Motors;
E.Compressors;
