Specifications
1.high quality, stable technology2. easy operation,wide material application
3.one wattanty
by costomer requirement

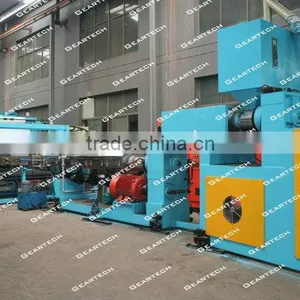

Function&Application: The latest development, production of JET-1300-N3/JET-1600-N3 high-speed(3+1 extruders) aluminum composite panel production line is producing the color coated aluminum coil and polyethylene (PE) core material by the polymer adhesive film by A new thermal compound made of metal plastic composites (ACP) for the high-speed production lines.
The line is our company with many years of design, production and ACP production line experience and draw extensively on domestic and foreign similar products, the latest technology developed sixth generation of the vacuum exhaust-type production line. Performance of the production line and part of the performance has reached more than similar imported products. The production line has a shape, easy operation, stable performance, cost performance characteristics.
Main parameters:(depends on customer requst)
Raw material: color coated aluminum coil, PE plastic
color coated aluminum coil:3MT(max)/coil, 0.026-0.5 mm
Thickness of product:1-6mm
Width of product:900-2000 mm
Length of product:any length
Production speed:0-10mm/min
Energy: diesel, electricity
Actual energy consumption: about 250-320KW
Composite Process: Continuous thermal compound
PACKAGE AND WARRANTY | ||
Package |
Wooden case |
Machine are packed by PE film |
Total Packages |
20-40case |
4-6 of 40containers |
Don`t open the packages until our engineer arrive | ||
|
installation |
Our engineer go to your factory installing |
|
One mouth for installing |
Half mouth for training your Technical personnel |
|
warranty |
One year from date of shipment according to industrial standard(without screw and barrel of extruder) |
|
offer lifetime consulation on problems | ||
