Wholesale JF 15A Best Bus Baking Room/bus Baking Machine/bus Spray Booth

Wholesale JF 15A Best Bus Baking Room/bus Baking Machine/bus Spray Booth thumbnail-1
Wholesale JF 15A Best Bus Baking Room/bus Baking Machine/bus Spray Booth thumbnail-2
Wholesale JF 15A Best Bus Baking Room/bus Baking Machine/bus Spray Booth thumbnail-3
Wholesale JF 15A Best Bus Baking Room/bus Baking Machine/bus Spray Booth thumbnail-4
Wholesale JF 15A Best Bus Baking Room/bus Baking Machine/bus Spray Booth thumbnail-5
Wholesale JF 15A Best Bus Baking Room/bus Baking Machine/bus Spray Booth thumbnail-6
Wholesale JF 15A Best Bus Baking Room/bus Baking Machine/bus Spray Booth photo-1
Wholesale JF 15A Best Bus Baking Room/bus Baking Machine/bus Spray Booth photo-2
Wholesale JF 15A Best Bus Baking Room/bus Baking Machine/bus Spray Booth photo-3
Wholesale JF 15A Best Bus Baking Room/bus Baking Machine/bus Spray Booth photo-4
Wholesale JF 15A Best Bus Baking Room/bus Baking Machine/bus Spray Booth photo-5
Wholesale JF 15A Best Bus Baking Room/bus Baking Machine/bus Spray Booth photo-6
US$ 4,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Power:
35KW
External Size:
15150x7020x5800 mm
Internal Size:
15000x5000x5000mm
Contact Supplier Request Quote Chat Now
Shenzhen Jiufeng Electromechanical Equipment Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Power 35KW
External Size 15150x7020x5800 mm
Internal Size 15000x5000x5000mm
Voltage 380v/3phase/50hz
Certification CE
Disc Dia. Electric Spray Paint Booth
No Load Speed 0.20m/s
Place of Origin Guangdong, China
Brand Name JF

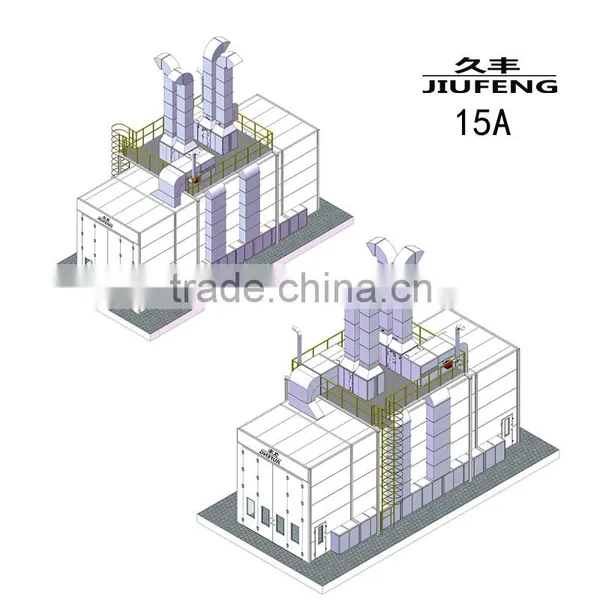

Model Number JF 15A
Product Description

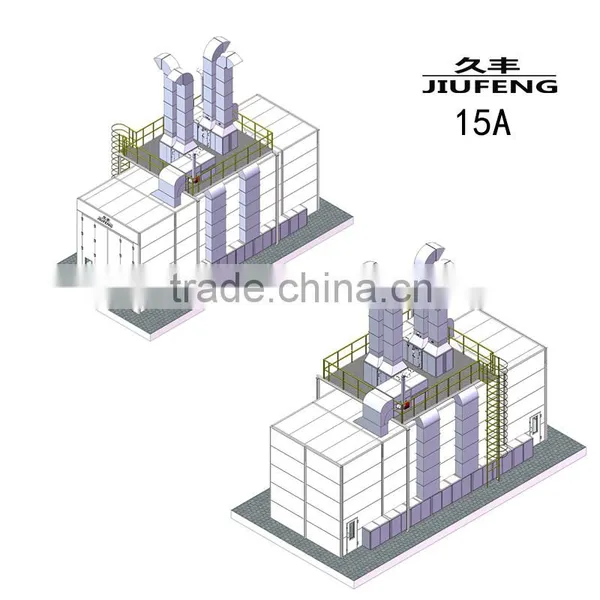

Wholesale JF 15A best bus baking room/bus baking machine/bus spray booth

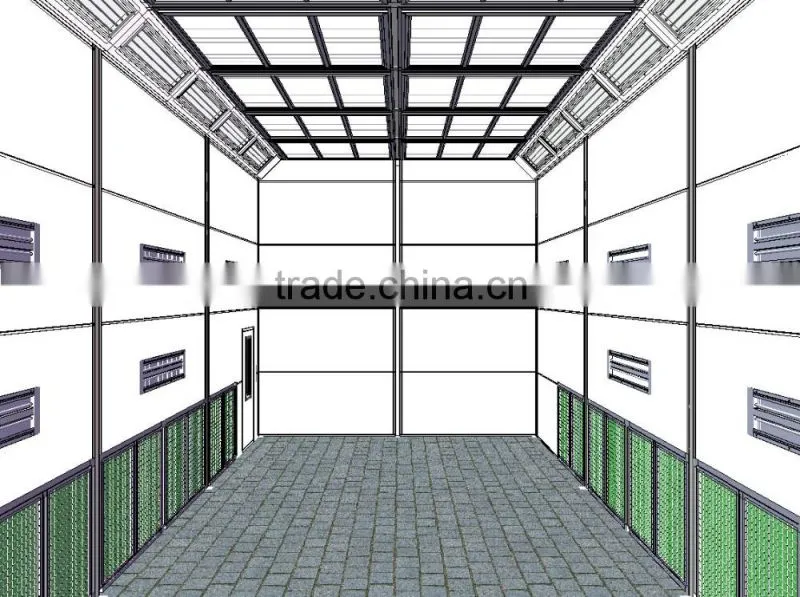

Cabin size
inside size
15000×5000×5000mm（L×W×H )
outside size
15150×7020×5800mm（L×W×H )
Basement
Foundation
Without floor grid, with air collecting boxes in double side.
Filter surface area
27.8㎡
cabin
Cabin structure
Wallboard horizontal plug
Plenum height
800mm
Wallboard
Wallboard
60mm，wallboard fill with EPS
Ceiling board
50mm，wallboard fill with EPS
Edge
1.5mm Galvanized sheet bending forming
Service Door
Gate form
Frame structure service door
Gate size
800×2000 mm (W×H)
Arrangement and quantity
2 sets
Description
With safe glass observation window
Main Door
Gate form
Manual door, 2+2 Folio style
Gate size
4300×4900 mm(W×H)
Arrangement and quantity
1 sets for Workpiece
Description
Containing the skeleton，filled with EPS
Side lighting
Quantity and Power
16units, each unit 2×36W, total 1152W
Light arrangement
on both sides
Lighting description
IP55 protection grade, CE certification, electronic rectifier, Osram tubes
Ceiling lighting
Quantity and Power
20units, each unit 4×36W, total 2880W
Light arrangement
on both sides
Lighting description
IP55 protection grade, CE certification, electronic rectifier, Osram tubes
Total Brightness
>1200Lux
Filtration System
Pre-filters
Grade G3 pocket type filter system
Ceiling filter
F5 grade filter , filter model : SP-600G
Exhaust Fan Filter
Resistance of cotton fiber glass mat，with Ventilate large，Small resistance and Flammability
Ventilation system( air supply system)
Inlet fan form
Direct turbo fan
Inlet fan Power and motor description
2X7.5kW，970 rpm, 380 V, 50 Hz
Specification of Inlet fan
650pa , 2X28000 m3/h
Ventilation system( exhaust system)
Outlet fan form
Direct turbo fan
outlet fan Power and motor description
2X7.5kW，970 rpm, 380 V, 50 Hz
Specification of outlet fan
650pa , 2X28000 m3/h
Empty load air flow speed
+/- 0.20m
Heating system
Heating Exchanger
Adopt stainless steel 1Gr18Ni9Ti（SUS304）
Heating Exchange Capacity
2X186KW
△T warming up capacity
20°C(from-10°C to 20°C under painting status)
Max working temperature
80°C
Heating time
8-16 mins (from20°C to 60°C under baking status)
Burner Model
Adopt Italy RIELLO diesel burner RG5S, (260.000kcal/H), quicker heating and much better effect, more rest assure for quality
Noise
＜78 Decibel
Pipeline configuration
Straight pipe
8 sections
90°pipe
2 sections
45°pipe
2 sections
Changing pipe
4 sections
Electric damper
1 section
Manual damper
1 section
Control system
Implementation of standards
PLC (programmable logic controller)
yes, lower PLC control, higher reliability, failure rate
Distribution facilities
CE standard connection cable, junction box, line pipe and accessories traces
Pressure detection
Pressure gauge indicates the pressure in room
Function
Painting, heating paint, baking, leveling, emergency stop switch, fault indication, over-temperature alarm indication, baking shutdown delay protection
Special note project
Overhead cabinets, steel platform carrying

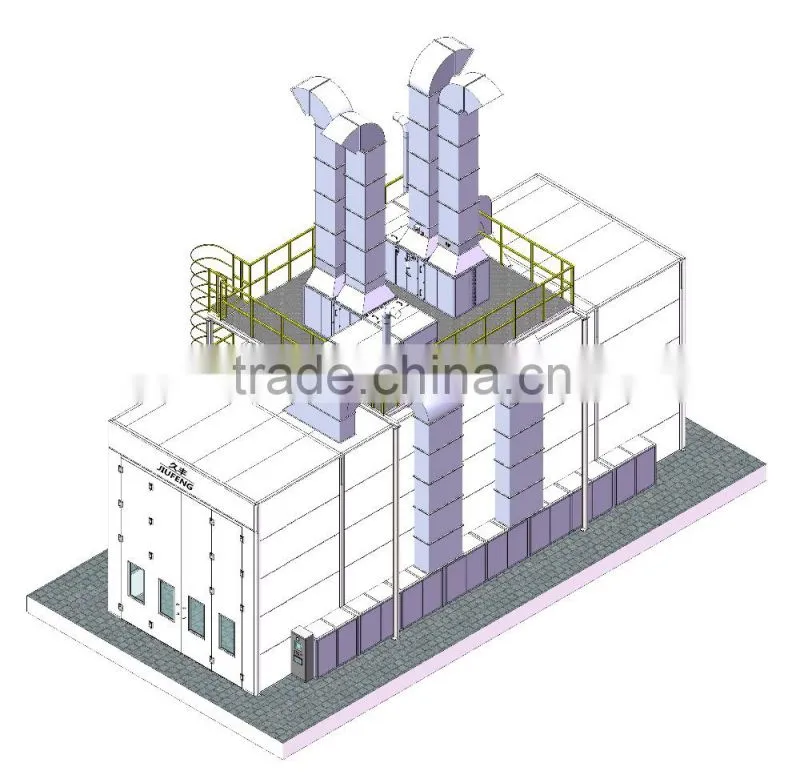

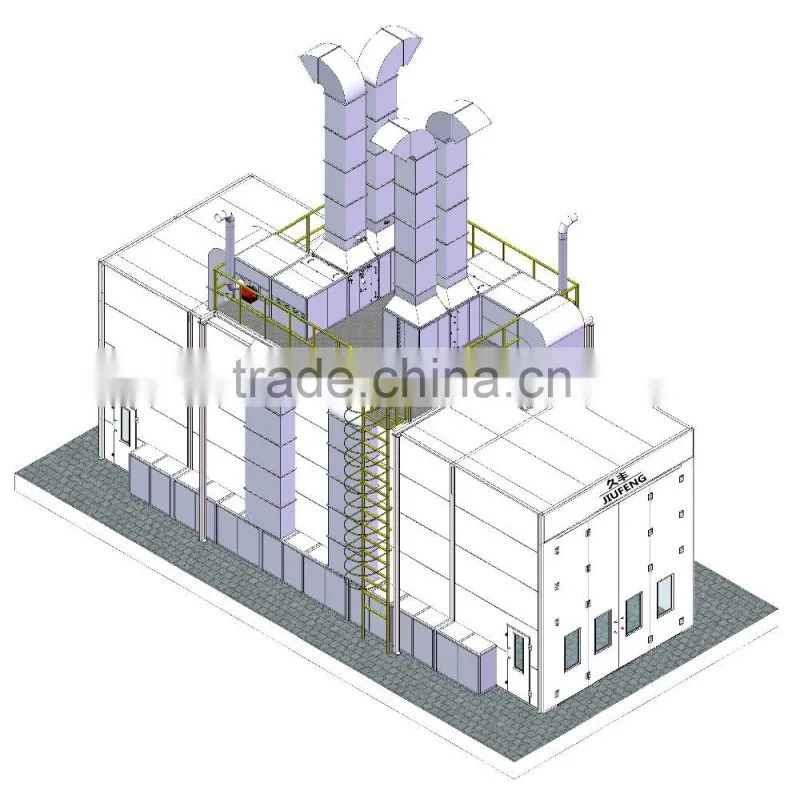

Steel platform
(on the top of the booth)
Steel platform forms
250X250 beam, bolt connection
steel platform height
6570mm
Protective railing and ladder
Design form
1.5mm of 50X50 square tube welded
Height dimension
Ladder high 6570mm, 1200mm high fence

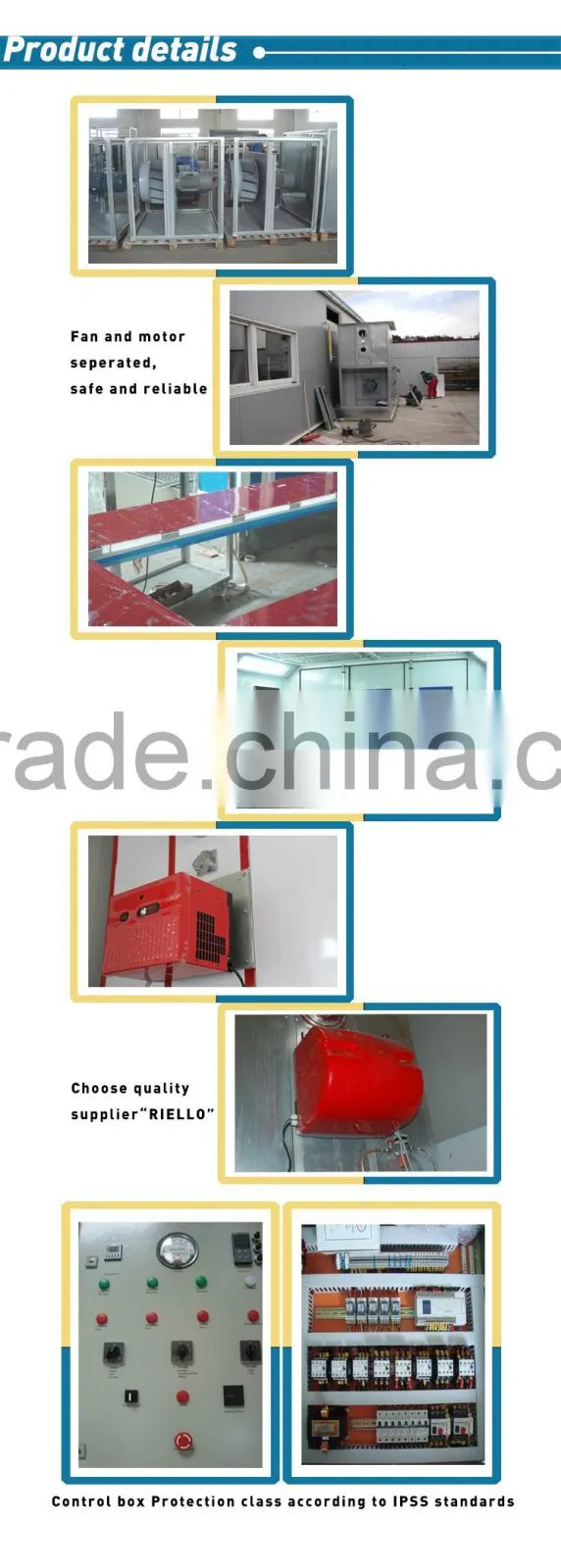

Detailed Images
Our Company

Shenzhen Jiufeng Electromechanical Equipment Co., Ltd. is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , JF brand spray booth is getting more and more popular all over the world .

JF target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, JF enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives.

We has passed the ISO9001:2000 quality system certification and ensures that every department follows the articles of the system. We stick to the philosophy of precise, accurate, harmonious and mutual-benefit are devoted to the development, design, manufacturing and sales of the products, and make the products more practical, beautiful, secure, accurate, environmental friendly and energy saving .

We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.

Packing & Delivery
Our Service

We are professional manufacturer for 12 years in China

Warranty time: 2 years. During the warranty time, any time, any problem caused by products’ quality,has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.


Service time: Life long maintenance
