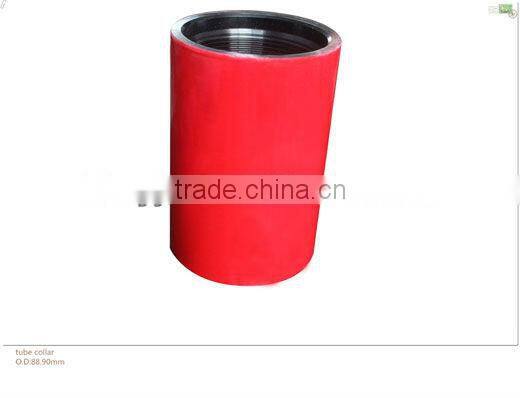

API 5ct 4 1/2" EUE Tubing Coupling for Oil Pipe

FOB Price

US$ 5 - 12 / Piece

100 Pieces(Min. Order)

Port TianJin China or Shanghai China
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, J55 steel	Technics	Other, Hot rolling
Type	Coupling	Place of Origin	Henan, China
Model Number	4 1/2" EUE N80	Brand Name	BLT
Connection	Female	Shape	Equal
Head Code	Other, round

Product Description

Specifications

Std Ref.: API 5CT 5B ISO9001, 2008
Grade: J55,K55, N80-1,N80-Q,L80,C90,P110
Size: tubing 1.9"to4-1/2", casing 4-1/2"to13-3/8

API 5ct 4 1/2" EUE tubing coupling for oil pipe

Specifications in Details

Our company manufactures and sells tubing couplings, and we have got API Certificate for tubing couplings. tubing coupling is a connection for oilfield, it is used to connect oil tube. The features are as follows:

1.Material:J55, K55, N80-1, N80-Q, L80, C90, P110

2.Size: from 2-3/8" to 4-1/2"

3.Type:NU , EU

4.Surface treatment: Whole phosphating, or inside phosphating and outside coating

5.Packing: By carton, wooden case, wooden pallet, or by requirements of customers

Technical Parameters

Name	Size	Type of Thread	O.D*L(mm)	Weight(kg)	Load carring width(mm)	Standard reference
API N80 EUE tubing coupling	2-3/8"TBG	NU	73.02*107.95	1.28	4.76	API 5CT 5B
	2-3/8"UPTBG	EU	77.80*123.82	1.55	3.97	API 5CT 5B
	2-7/8"TBG	NU	88.90*130.18	2.34	4.76	API 5CT 5B
	2-7/8"UPTBG	EU	93.17*133.35	2.4	5.56	API 5CT 5B
	3-1/2"TBG	NU	107.95*142.88	3.71	4.76	API 5CT 5B
	3-1/2"UPTBG	EU	114.30*146.05	4.1	6.35	API 5CT 5B
	4"TBG	NU	120.65*146.05	4.35	4.76	API 5CT 5B
	4"UPTBG	EU	127.00*152.40	4.82	6.35	API 5CT 5B
	4-1/2"TBG	NU	132.08*155.58	4.89	4.76	API 5CT 5B
	4-1/2"UPTBG	EU	141.30*158.75	6.05	6.35	API 5CT 5B
1. Material:J55,K55,N80-1,N80-Q,L80,C90,P110
2.We also supply permium thread products by customer's request
3.Size:tubing coupling from 2-3/8”"to 4-1/2"
4.Type:NU,EU
5.Surface treatment: whole phosphating, or inside phosphating and outside coating
6. Packing :by carton,wooden case ,wooden pallet or by customer requests
