API 5CT &5B J55 NUE Tubing Coupling

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Standard:

Grade:

Thickness:

10, 25

Puyang Bao Litong Petroleum Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TianJin Qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Thickness 10, 25

Section Shape Round

Outer Diameter 48 - 114 mm

Place of Origin Henan, China

Secondary Or Not Non-secondary

Application Oil Pipe

Technique Hot Rolled

Certification API

Surface Treatment Other, blueing or phosphating

Special Pipe API Pipe

Alloy Or Not Is Alloy

Specifications

api 5ct & 5b eue & nue n80 tubing coupling
1.Std Ref:API 5ct &5b
2.Size:from 2-3/8" to 4-1/2"
3.Feature:good sealing

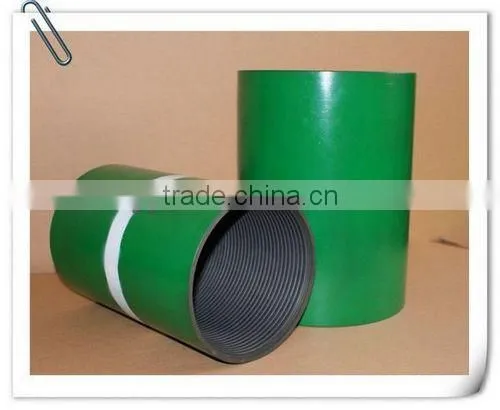

API 5CT &5B J55 NUE tubing coupling

Features:

1.Product name:api 5ct & 5b eue & nue n80 tubing coupling

2.Material:J55, K55, N80-1, N80-Q, L80, C90, P110

3.Size: tubing coupling from 2-3/8" to 4-1/2"

4.Placement:female

5.Surface treatment: Whole phosphating, or inside phosphating and outside coating

6.Packing: By carton, wooden case, wooden pallet, or by requirements of customers

Technical Parameters

Name	Thread	Specifications	O.D*L(mm)	Weight(kg)	Load carring width(mm)
api 5ct & 5b eue & nue n80 tubing coupling	NU	2-3/8"TBG	73.02*107.95	1.28	4.76
		2-7/8"TBG	88.90*130.18	2.34	4.76
		3-1/2"TBG	107.95*142.88	3.71	4.76
		4"TBG	120.65*146.05	4.35	4.76
		4-1/2"TBG	132.08*155.58	4.89	4.76
	EU	2-3/8"UPTBG	77.80*123.82	1.55	3.97
		2-7/8"UPTBG	93.17*133.35	2.4	5.56
		3-1/2"UPTBG	114.30*146.05	4.1	6.35
		4"UPTBG	127.00*152.40	4.82	6.35
		4-1/2"UPTBG	141.30*158.75	6.05
