Specifications

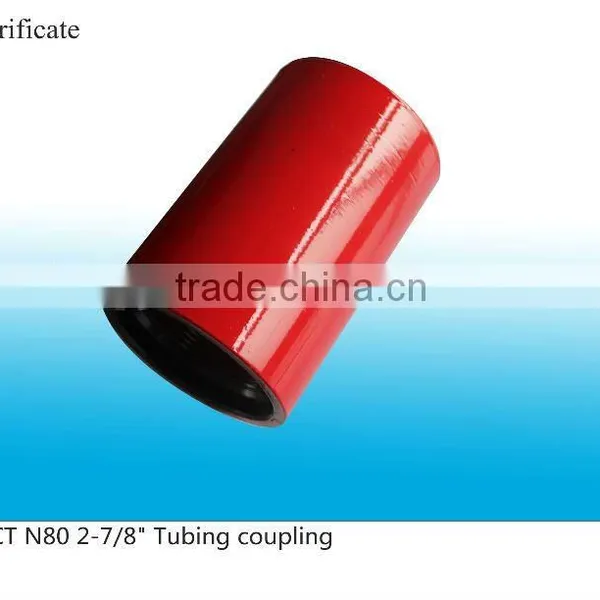

1.Name:api 5ct n80 2 7/8"TBG Tubing Coupling2.Size:from 2-3/8" to 4-1/2"
3.Placement:female
4.Std Rfc:API 5CT & 5B
Detailed Descriptions
Our company manufactures and sells tubing couplings, and we have got API Certificate for tubing couplings. tubing coupling is a connection for oilfield, the features are as follows:
1.Material:J55, K55, N80-1, N80-Q, L80, C90, P110
2.Size: from 2-3/8" to 4-1/2"
3.Type:NU , EU
4.Surface treatment: Whole phosphating, or inside phosphating and outside coating
5.Packing: By carton, wooden case, wooden pallet, or by requirements of customers
Technical Parameters
Name |
Thread |
Specifications |
O.D*L(mm) |
Weight(kg) |
Load carring width(mm) |
|
api 5ct n80 2 7/8"TBG Tubing Coupling |
NU |
2-3/8"TBG |
73.02*107.95 |
1.28 |
4.76 |
2-7/8"TBG |
88.90*130.18 |
2.34 |
4.76 |
||
3-1/2"TBG |
107.95*142.88 |
3.71 |
4.76 |
||
4"TBG |
120.65*146.05 |
4.35 |
4.76 |
||
4-1/2"TBG |
132.08*155.58 |
4.89 |
4.76 |
||
EU |
2-3/8"UPTBG |
77.80*123.82 |
1.55 |
3.97 |
|
2-7/8"UPTBG |
93.17*133.35 |
2.4 |
5.56 |
||
3-1/2"UPTBG |
114.30*146.05 |
4.1 |
6.35 |
||
4"UPTBG |
127.00*152.40 |
4.82 |
6.35 |
||
4-1/2"UPTBG |
141.30*158.75 |
6.05 |
6.35 |
||
1.Type:NU EU | |||||
2.Size:from 2-3/8"to 4-1/2" | |||||
3.Material:J55,K55,N80,L80,C90,P110, N80-1,N80-Q | |||||
4.Surface treatment:whole phosphating,or inside phosphating and outside coating | |||||
5.Package:by carton, wooden case, wooden pallet or by customer request | |||||
6.Delivery Time:15-30 working days after receipt of advanced payment | |||||
