Specifications
API Threading tubing coupling2.Type:NUE EUE
3.Placement:female
4.Material:seamless steel
5.Std Rfc:API 5CT & 5B

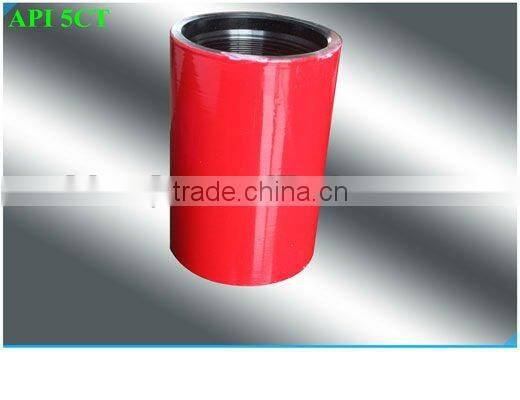

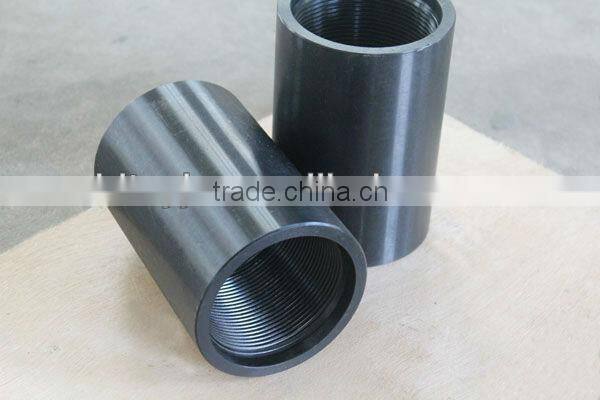

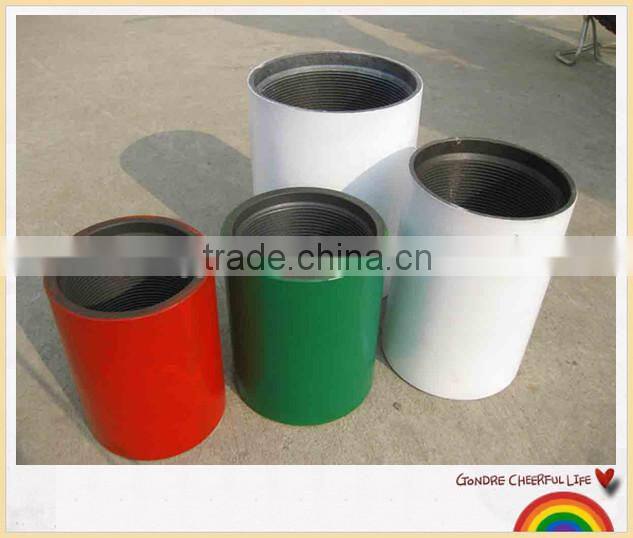

API Threading tubing coupling
Detailed product description
Our company manufactures and sells tubing couplings, and we have got API 5CT &5B Certificate for tubing couplings. tubing coupling is a connection for oilfield, it is used to connect two oil tubes. The features are as follows:
1.Material:J55, K55, N80-1, N80-Q, L80, C90, P110
2.Size: tubing coupling from 2-3/8" to 4-1/2"
3.Type:NUE , EUE
4.Surface treatment: Whole phosphating, or inside phosphating and outside coating
5.Packing: By carton, wooden case, wooden pallet, or by requirements of customers
Technical parameters
Name |
Thread |
Specifications |
O.D*L(mm) |
Weight(kg) |
Load carring width(mm) |
|
API Threading tubing coupling |
NU |
2-3/8"TBG |
73.02*107.95 |
1.28 |
4.76 |
2-7/8"TBG |
88.90*130.18 |
2.34 |
4.76 |
||
3-1/2"TBG |
107.95*142.88 |
3.71 |
4.76 |
||
4"TBG |
120.65*146.05 |
4.35 |
4.76 |
||
4-1/2"TBG |
132.08*155.58 |
4.89 |
4.76 |
||
EU |
2-3/8"UPTBG |
77.80*123.82 |
1.55 |
3.97 |
|
2-7/8"UPTBG |
93.17*133.35 |
2.4 |
5.56 |
||
3-1/2"UPTBG |
114.30*146.05 |
4.1 |
6.35 |
||
4"UPTBG |
127.00*152.40 |
4.82 |
6.35 |
||
4-1/2"UPTBG |
141.30*158.75 |
6.05 |
6.35 |
||
1.Advantage:good sealing | |||||
2.Size:from 2-3/8"to 4-1/2" | |||||
3.Standard reference:API 5CT & 5B | |||||
4.Material:J55,K55,N80,L80,C90,P110, N80-1,N80-Q | |||||
5.Surface treatment:whole phosphating,or inside phosphating and outside coating | |||||
6.Package:by carton, wooden case, wooden pallet or by customer request | |||||

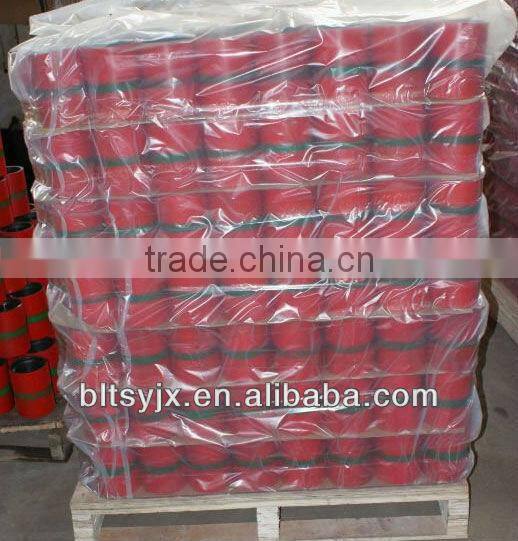

Package informations
Product picture and API certificate
