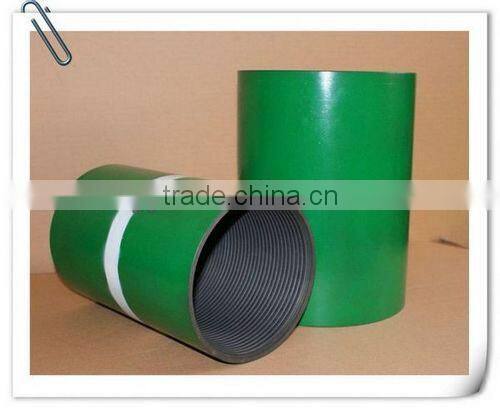

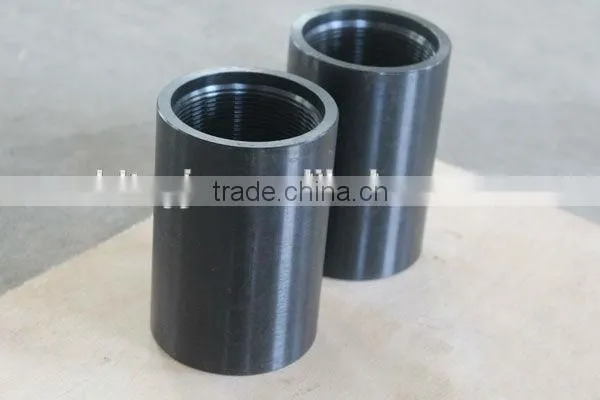

API 5CT J55 EUE and NUE Tubing Couplings

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, J55,K55,N80,L80,P110

Technics:

Other, Hot rolling

Type:

Coupling

Puyang Bao Litong Petroleum Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Material Other, J55,K55,N80,L80,P110

Technics Other, Hot rolling

Type Coupling

Place of Origin Henan, China

Model Number 2 78" J55( NUE)

Brand Name BLT

Connection Female

Shape Equal

Head Code Other, round

Specifications

API 5CT J55 EUE and NUE Tubing Couplings
1.Size:from 2-3/8" to 4-1/2"
2.Type:NUE EUE
3.Std ref:API 5CT&5B
4.Hot rolling

API 5CT J55 EUE and NUE Tubing Couplings

Features:

1.Product Name:api 5ct&5b female threading tubing coupling
2.Material:J55, K55, N80-1, N80-Q, L80, C90, P110

3.Size:from 2-3/8" to 4-1/2"
3.Type:NUE EUE
4.Std ref:API 5CT&5B

5.Placement:female

6.Surface treatment: Whole phosphating, or inside phosphating and outside coating

7.Packing: By carton, wooden case, wooden pallet, or by requirements of customers

Name	Thread	Specifications	O.D*L(mm)	Weight(kg)	Load carring width(mm)
API 5CT J55 EUE and NUE Tubing Couplings	NU	2-3/8"TBG	73.02*107.95	1.28	4.76
		2-7/8"TBG	88.90*130.18	2.34	4.76
		3-1/2"TBG	107.95*142.88	3.71	4.76
		4"TBG	120.65*146.05	4.35	4.76
		4-1/2"TBG	132.08*155.58	4.89	4.76
	EU	2-3/8"UPTBG	77.80*123.82	1.55	3.97
		2-7/8"UPTBG	93.17*133.35	2.4	5.56
		3-1/2"UPTBG	114.30*146.05	4.1	6.35
		4"UPTBG	127.00*152.40	4.82	6.35
		4-1/2"UPTBG	141.30*158.75	6.05	6.35
1.Advantage:good sealing
2.Size:from 2-3/8"to 4-1/2"
3.Standard reference:API 5CT & 5B
4.Material:J55,K55,N80,L80,C90,P110, N80-1,N80-Q
5.Surface treatment:whole phosphating,or inside phosphating and outside coating
6.Package:by carton, wooden case, wooden pallet or by customer request

Package Inforamtions

Specificaiton	Tubing Size OD (inches)	Coupling Size OD (inches)	Length (inches)	Weight per Coupling (kgs )	Palletized Carton Quantity	Palletized Carton Weight
Specificaiton	Tubing Size OD (inches)	Coupling Size OD (inches)	Length (inches)	Weight per Coupling (kgs )	(pieces)	(Kgs)
API NUE tubing couplings (J55,K55,N80,L80,P110)	1.9	2.200	3.750	0.56	3468	1943
	2 3/8	2.875	4.250	1.28	1690	2164
	2 7/8	3.500	5.125	2.34	800	1872
	3 1/2	4.250	5.625	3.71	512	1900
	4	4.750	5.750	4.35	392	1706
	4 1/2	5.200	6.125	4.89	392	1917
