Specifications
1.electric power cable
2.Professional supplier
3.Reliable quality,best price
4.Strong capacity,fast delivery
5.Copper wire
Solid core flat power cable 2.5mm
1. The applications: Rated voltage (U0/U) 0.6/1KV; 3.6/6 (7.2)KV; 6/10 (12)KV; 8.7/15 (17.5)KV; 12/20 (24)KV; 18/30 (36)KV in transmission & transformation line & for water-proofing purpose.
2. Standards: IEC60502-2 2005 ISO9001:2008
3. Product Features:
1) No necessary to heat up in advance while installing above 0oC.
2) Max. continuous normal operating Temperature: 70oC (PVC Sheathed Cable).
3) Max. Permissible temperature at short circuit (5s. at longest): 250oC.
4) Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
2:Detailed Description:
Cross-linked XLPE insulation power cable not only has excellent electric and mechanical properties, but also has powerful resistance against chemical corrosion, heat-aging and environmental stress. Its structure is simple and can be used conveniently and also can be laid with no restriction of different levels. The long term operating temperature is 900C, and its transmission capacitance is large.
Our company can produce both flame retardant and non-flame retardant series of XLPE power cables. Our products can be produced according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards as stated above..
The flame-retardant cable covers all kinds of low-smoke, free-halogen, low-smoke halogen free and three classes of A, B, C. We can design and manufacture special XLPE cables according to the other standards require by the customers, such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on.

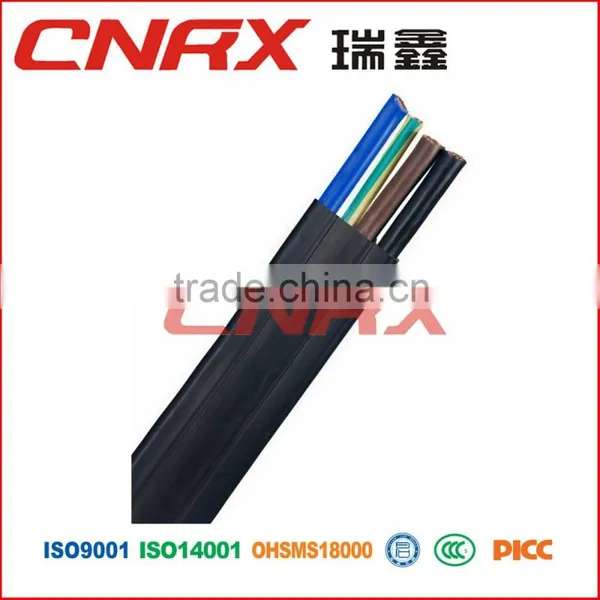

flat wire power cable
| Nominal section(mm) |
Number/Dia of core(mm) |
maximum outer Diameter(mm) |
Reference Wt |
Conductor Resistance at≥20 | ||
| Copper | Aluminum | Copper | Aluminum | |||
| 1.5(A) | 1/1.38 | 3.3 | 19.9 | 12.1 | ||
| 1.5(B) | 7/0.52 | 3.5 | 21 | 12.1 | ||
| 2.5(A) | 1/1.78 | 3.9 | 31.4 | 16 | 7.41 | 11.8 |
| 2.5(B) | 7/0.62 | 4.2 | 33.1 | 94 | 7.41 | |
| 4(A) | 1/2.5 | 4.4 | 46.3 | 21.7 | 4.61 | 7.39 |
| 4(B) | 7/0.85 | 4.8 | 49 | 153 | 4.61 | |
| 6(A) | 1/2.76 | 4.8 | 66 | 29 | 3.08 | 4.91 |
| 6(B) | 7/1.04 | 5.4 | 69.4 | 3.08 | ||
|
|
|
|
|
|
1 Our loyal purport: Based on sincerity! Serve the first!, your trustworthy parter
2 Devoted in the power transmission and distribution since 1995, having lots of experienced
engineer and workers
3 We are able to contract foreign project obtained the qualification certificate
1. Which payment terms do you accept?
a.The payment term varies with different price level and total rate of each contract.
The following are most common terms:
b. 30% T/T down payment, the balance before you picking up the goods.
c. 100% L/C at sight.
d. 30% T/T down payment, the balance against 100% L/C at sight.
2. What is your MOQ?
You are advised to please confirm it with us directly as it’s based on different cable type.
Usually it’s 500 meters for Medium Voltage Cables.
3. What about the lead time for our cable product ?
The lead time according to the your order's quantity.Usually our lead time is 10 - 30 wrking days.
4. What about our product's package ?
our product's package usually is wooden drum or steel-wooden drum.The cable wire is usually coiled.
For more information on detailed cable characteristics please call 86 577 57185601
Or email us your request for design cable and wire.
