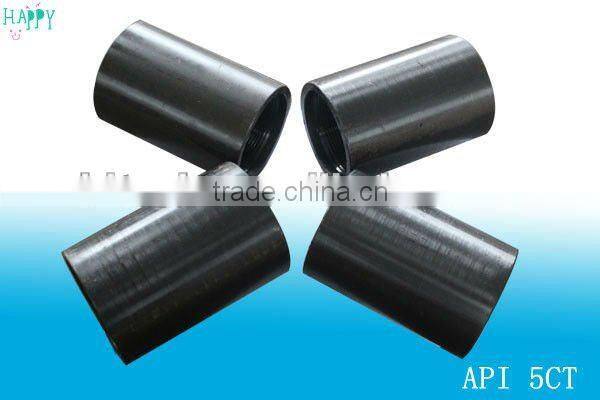

Good price ! API 2 7/8" J55/K55/N80 EUE tubing couplings
- 80000 Piece / Pieces per Month
- TianJin Shanghai
- T/T D/P D/A Credit Card
Product Details
Place of Origin: | Henan, China | Brand Name: | BLT | Model Number: | 4 1/2" L80(NUE) |
Type: | Other, coupling | Machine Type: | Drilling Equipment | Certification: | API |
Material: | Other, J55,K55,N80,L80,P110 | Processing Type: | Casting | Use: | Other, oilfield |
Product Description
Specifications
API 2 7/8" J55/K55/N80 EUE tubing couplings1.Std Ref:API 5CT&5T
2.Grade: J55,K55,N80,L80,P110
3.EUE,NUE
4.Hot rolling
API 2 7/8" J55/K55/N80 EUE tubing couplings
Features:
1.Product Name:api 5ct J55/K55 tubing and casing coupling
2.Material:J55, K55, N80-1, N80-Q, L80, C90, P110
3.Size:from 2-3/8" to 4-1/2"
4.Type:NUE EUE
5.Std ref:API 5CT&5B
6.Placement:female
7.Surface treatment: Whole phosphating, or inside phosphating and outside coating
8.Packing: By carton, wooden case, wooden pallet, or by requirements of customers
Technical Parameter
Product name |
Specifications |
Type of thread |
O.D*L(mm) |
Weight(kg) |
Load carrying width(mm) |
API 2 7/8" J55/K55/N80 EUE tubing couplings
| 2-3/8"TBG | NUE | 73.02*107.95 | 1.28 | 4.76 |
2-3/8"UPTBG | EUE | 77.80*123.82 | 1.07 | 3.97 | |
2-7/8"TBG | NUE | 88.90*130.18 | 2.34 | 4.76 | |
2-7/8"UPTBG | EUE | 93.17*133.35 | 1.55 | 5.56 | |
3-1/2"TBG | NUE | 107.95*142.88 | 3.71 | 4.76 | |
3-1/2"UPTBG | EUE | 114.30*146.05 | 2.38 | 6.35 |
Package information
Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
(pieces) | (Kgs) | |||||
API 2 7/8" J55/K55/N80 EUE tubing couplings | 1.9 | 2.500 | 3.875 | 0.84 | 2352 | 1976 |
2 3/8 | 3.063 | 4.875 | 1.55 | 1152 | 1786 | |
2 7/8 | 3.668 | 5.250 | 2.40 | 800 | 1920 | |
3 1/2 | 4.500 | 5.750 | 4.10 | 512 | 1229 | |
4 | 5.000 | 6.000 | 4.82 | 392 | 1890 | |
4 1/2 | 5.563 | 6.250 | 6.05 | 392 | 2372 |
Specificaiton | Tubing Size OD (inches) | Coupling Size OD (inches) | Length (inches) | Weight per Coupling (kgs ) | Palletized Carton Quantity | Palletized Carton Weight |
(pieces) | (Kgs) | |||||
API 2 7/8" J55/K55/N80 EUE tubing couplings | 1.9 | 2.200 | 3.750 | 0.56 | 3468 | 1943 |
2 3/8 | 2.875 | 4.250 | 1.28 | 1690 | 2164 | |
2 7/8 | 3.500 | 5.125 | 2.34 | 800 | 1872 | |
3 1/2 | 4.250 | 5.625 | 3.71 | 512 | 1900 | |
4 | 4.750 | 5.750 | 4.35 | 392 | 1706 | |
4 1/2 | 5.200 | 6.125 | 4.89 | 392 | 1917 |
