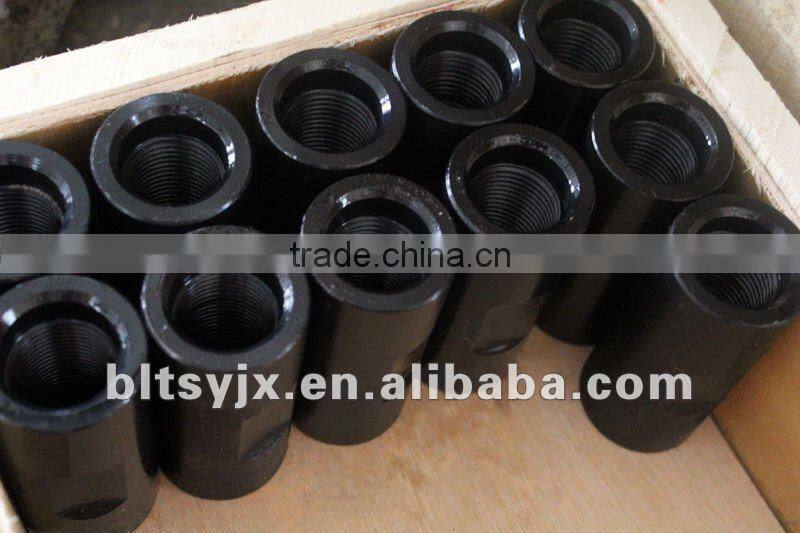

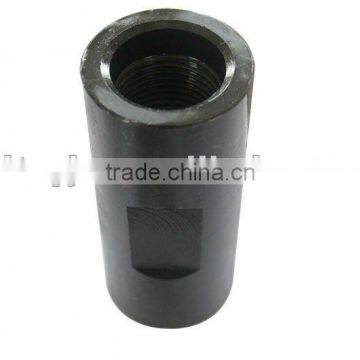

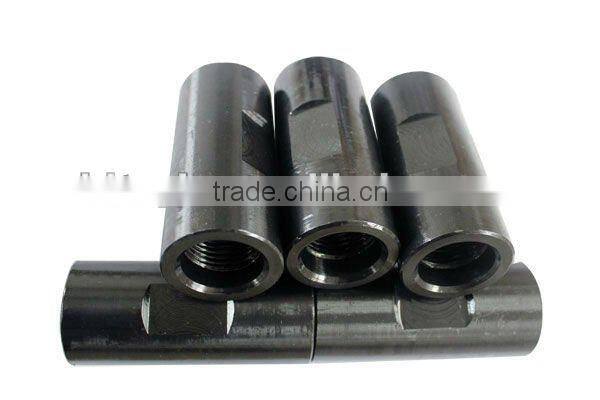

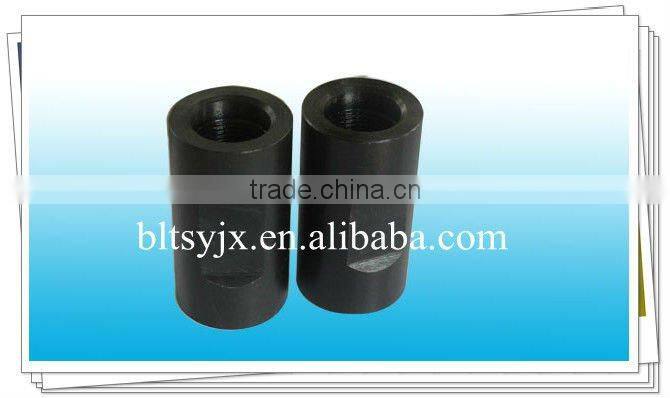

1" sucker rod couplings,19mm* 25mm

Specifications

1" sucker rod couplings,19mm* 25mm
1.Std Ref: API 11B
2.Grade:Class T
3.Technics:hot rolling
4.Good machanical and sealing

1" sucker rod couplings,19mm* 25mm



Detailed product description

Our factory can manufacture couplings, including sucker rod coupling, sub-coupling, API 5CT tubing and casing coupling. Sucker rod coupling and sub-coupling are designed in accordance with API Spec 11B, the material is high quality alloy steel. Normally, there are 2 wrench flats on the outside diameter. Class T coupling hardness is HRA56-62 after heat treatment, possesing better anti-corrosion property and abrasion-proof property.



Sucker rod coupling is used for connecting the same size of sucker rods. Sub-coupling is used for connecting the two sizes of sucker rods or polished rod to a sucker rod string.



1.Features:

(1)Meterial:high quality alloy

(2)Technics:hot rolling

(3)Placement:female

(4)Surface treatment:phosphating, blueing

(5)Standard reference:SY/T5029-2006, API 11B

(6) possesing better anti-corrosion property and abrasion-proof property

(7) used for connecting the same size of sucker rods or connecting different sizes of sucker rod to a sucker rod string

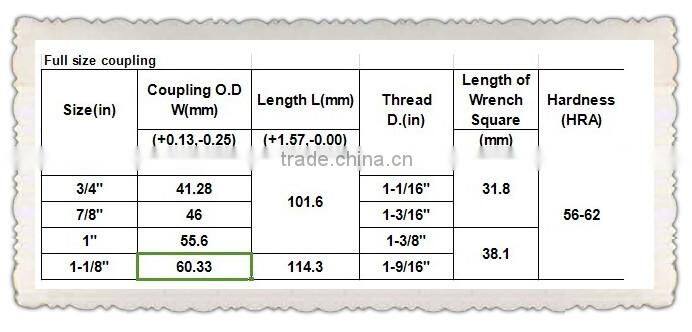

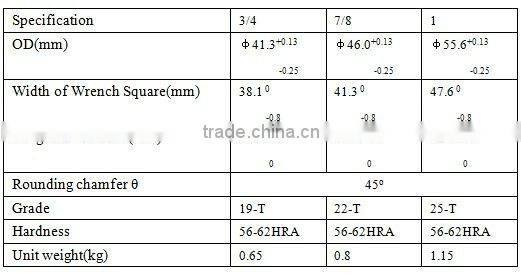

2.Technical parameters
