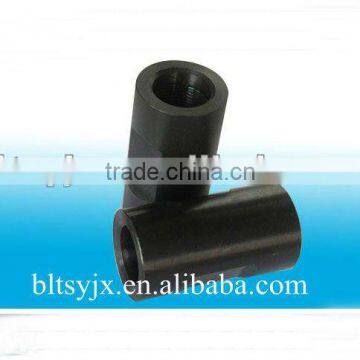

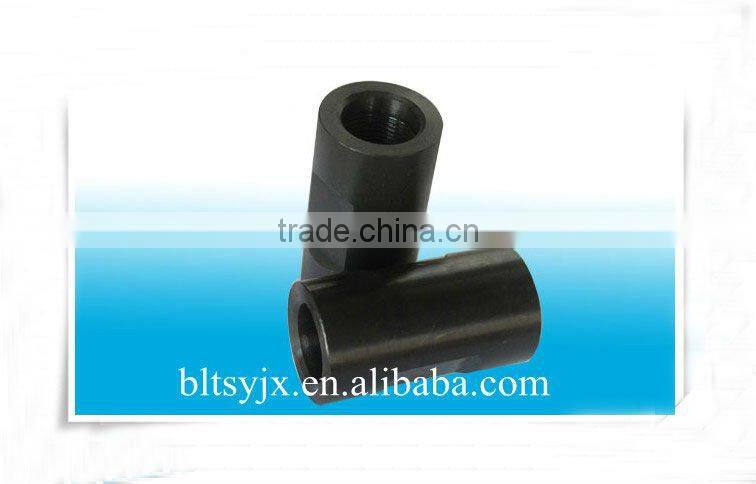

Help Center1" Full Size Cylinder Sucker Rod Coupling
Related Products
Specifications
1.Name:1" full size cylinder sucker rod coupling2.Size:full size
3.Class:T
4.Hardness:HR56-62HRA
5.Std Rfc:API 11B
Detailed description
Sucker rod coupling is one of our flagship products. We our company can manufacture diffirent types of sucker rod couplings. Such as full size couplings(1", 7/8", 3/4") and reducing couplings (3/4"*7/8", 1"*3/4",1"*7/8"). The following table shows the related information about the sucker rod coupling.
Technical parameters
Full size sucker rod coupling |
3/4” |
7/8” |
1” |
Grade |
19-T |
22-T |
25-T |
O.D(mm) |
41.05~41.43 |
45.75~46.13 |
55.35~55.73 |
Minimum lengh(mm) |
101.6~103.17 |
101.6~103.17 |
101.6~103.17 |
Material |
AISI 5140 |
AISI 5140 |
AISI 5140 |
Hardness |
56-62HRA |
56-62HRA |
12-23HRA |
Threads per inch(Piece/inch) |
10 |
10 |
10 |
Weight (kg) |
0.65 |
0.8 |
1.15 |
Standard reference |
API 11B |
API 11B |
API 11B |
Feature |
Anticorrossion, durable use |
||
Packing |
Exported by case,wooden case or wooden pallet |
||
Delivery time |
15-30working days |
||
Surface treatment |
Phosphating or per the clients request |
||
