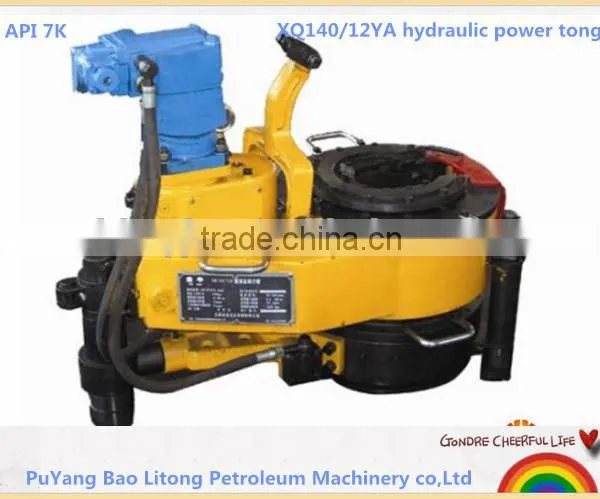

2015 Hot Sale! XQ140/12YJ Hydraulic Power Tong With High QualityNegotiableMOQ: 1 Piece
-
China Manufacturer! API Hydraulic Tubing Power Tong XQ114/6YBNegotiableMOQ: 1 Piece
-
Competitive Price! API Tubing Hydraulic Power Tong XYQ89/3YCNegotiableMOQ: 1 Piece
Hot sale! XYQ 114 /6YB hydraulic tubing and casing tong
Specification
1. Tubing hydraulic power tong XQ89/3YC
2.well-servicing process
3.For tubing
4.API Standard
5.Size: 2-7/8,3 -1/2, 4-1/2" tubing
Detailed description

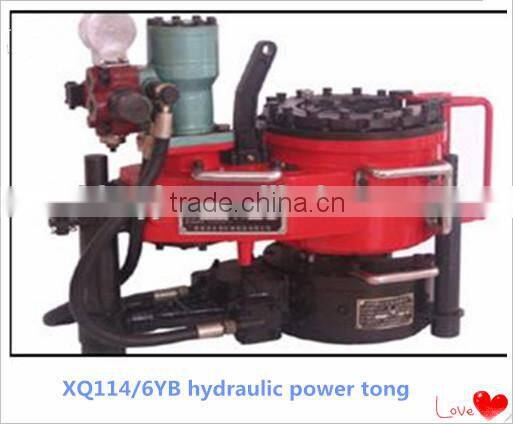

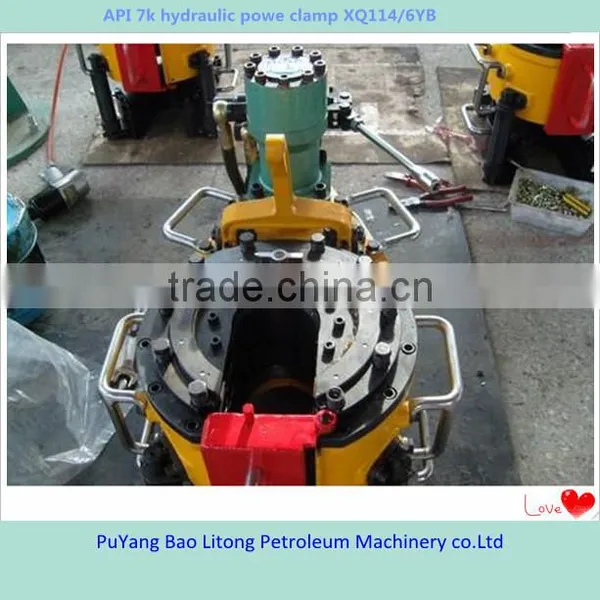

XQ114/6YB hydraulic power clamp is used for quick make-up/break-out in well service operations. It is mainly made up of two parts, master tong and backup tong. The pipe size range of master tong is Φ73-114 27/8”-41/2”; the pipe size range of backup tong is Φ89-141.5 31/2”-51/8.
Model |
XQ114/6YB |
Pipe size range of master tong |
Φ73-114 27/8”-41/2” |
Pipe size range of backup tong |
Φ89-141.5 31/2”-51/8 |
High gear rated torque |
1500 N.m 1106ft-lbs |
Low gear rated torque |
6000 N.m 4425 ft-lbs |
Hige gear rated speed |
85 r/min |
Low gear rated speed |
20 r/min |
Rated operation pressure |
11Mpa 1595psi |
Max. Flow |
100L/min 26gpm |
Dimension:L×W×H |
750×500×600 29.5” ×19.7” ×23.6” |
Weight(including backup tong) |
220kg 485 lbs |
features | |
1.clamp the tubing use corresponding dies, jaw set or die seat. | |
2.torque control valve may be equiped according to customer’s request. | |
3.choose and buy lengthening guide pole assembly, the backup tong can clamp the tubing body | |
4.torque control system may be equiped according to customer’s request. | |

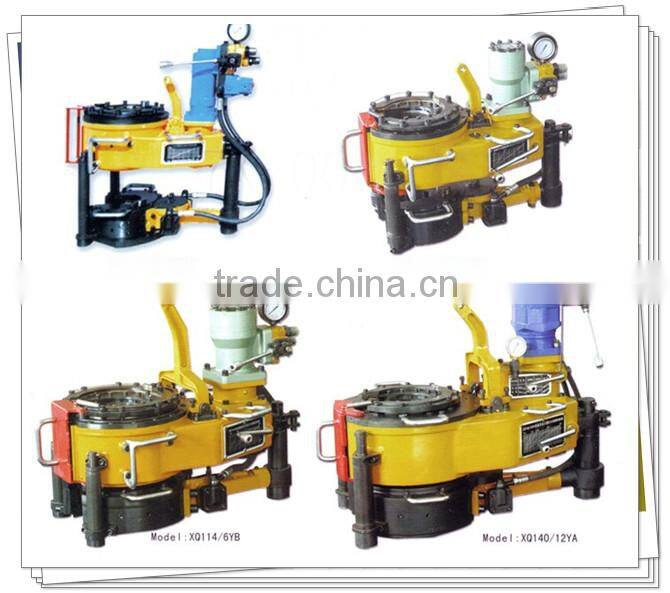

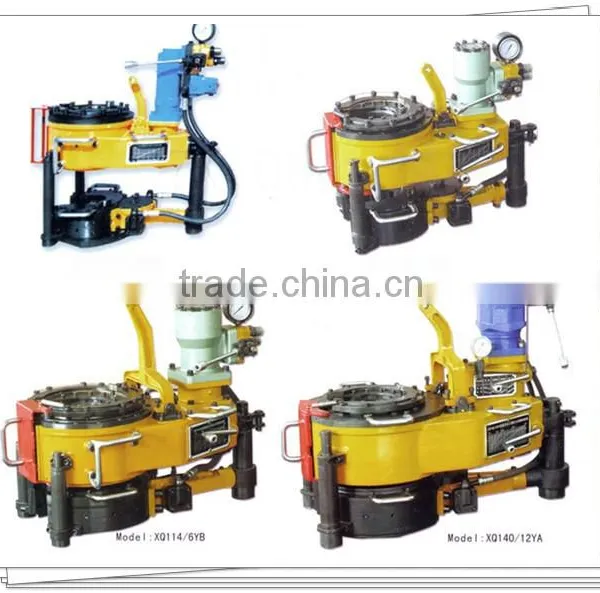

Detailed Picture
