Help CenterXQ140/12YA Hydraulic Power Tubing Tong
Related Products
Specifications
XQ140/12YA Hydraulic power tubing tong2.Size:XYQ3C,XYQ6B,XYQ12A
3.Used for quick make-up and break-out in well service

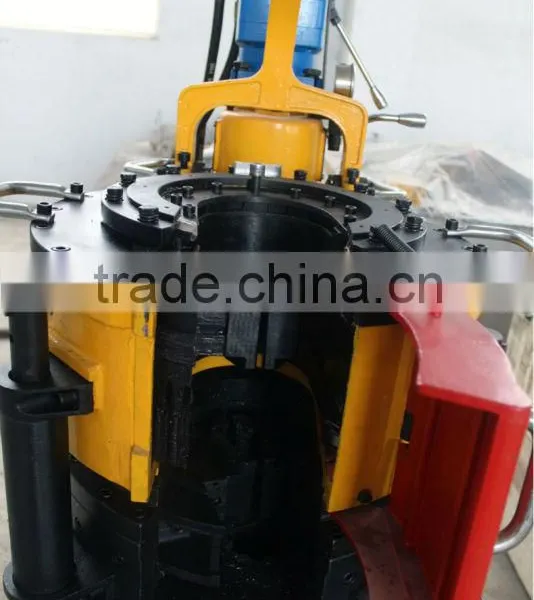

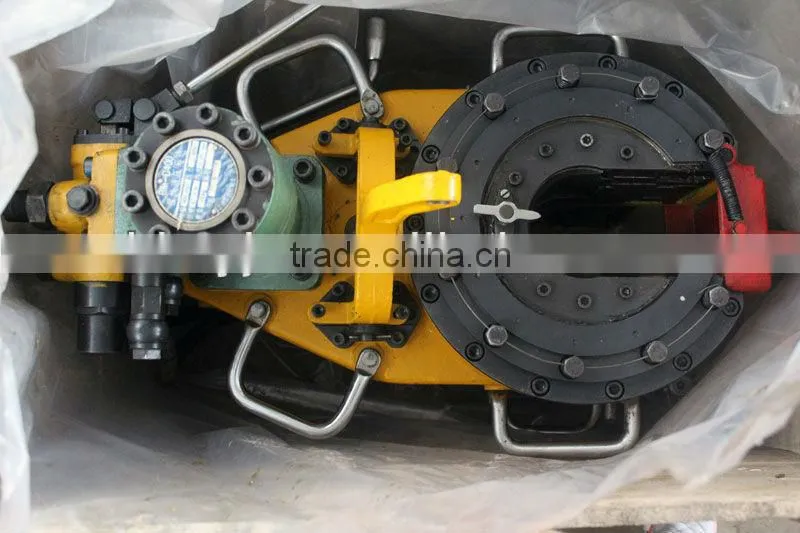

XQ140/12YA Hydraulic power tubing tong
Deatailed Description
The company mainly specialized in couplings, hydraulic power tubing tong, sucker rod tong and accesories. The hydraulic power tubing tong specifications are XQ89/3YC, XQ114/6YB, XQ140/12YA, sucker rod tong specifications are XQ28/1.8Y and XQ28/2.6Y. The following is the information of hydraulic power tongs.
Features:
1.Size: :XQ89/3YC, XQ114/6YB, XQ140/12YA
2.MOQ:1 Set
3.Usage: Used for quick make-up and break-out in well service operations.
4.Clamp the tuing use corresponding dies, jaw set or die seat.
5.Torque control valve may be equipped according to customers' request.
6.Torque control system may be equipped according to customers' request.
Technics Parameters
Model |
XQ89/3YC |
XQ114/6YB |
XQ140/12YA |
Pipe size range of master tong |
Φ60-89 23/8”-31/2” |
Φ73-89 27/8”-31/2” |
Φ73-140 27/8”-51/2” |
Pipe size range of backup tong |
Φ60-114 23/8”-41/2 |
Φ89-114.5 31/2”-51/8 |
Φ89-156 31/2”-61/8” |
High gear rated torque |
1100 N.m 811ft-lbs |
1500 N.m 1106ft-lbs |
2600 N.m 1918ft-lbs |
Low gear rated torque |
3000 N.m 2213 ft-lbs |
6000 N.m 4425ft-lbs |
12000 N.m 8851 ft-lbs |
Hige gear rated speed |
90 r/min |
85 r/min |
72 r/min |
Low gear rated speed |
30 r/min |
20 r/min |
14 r/min |
Rated operation pressure |
10Mpa 1450psi |
11Mpa 1595psi |
12Mpa 1740psi |
Max. Flow |
80L/min 21gpm |
100L/min 26gpm |
120L/min 32gpm |
Dimension:L×W×H |
650×430×550 25.6” ×16.9” ×21.7” |
750×500×600 29.5” ×16.7” ×23.6” |
1024×582×539 40.3” ×22.9” ×21.2” |
Weight(including backup tong) |
158kg 348 lbs |
220kg 485 lbs |
480kg 1057 lbs |
