Specifications
1.Name:XQ140/12YA Hydraulic powe tong die seat2.Die seats assembly consists of die seats and screw stopper.
3.MOQ:10Pcs
Detailed description
First, Kinds of die seats and dies.
There are 11 kinds of die seats and 3 kinds of dies for XQ140/12YA Hydraulic powe tong. One kind of die seats is especially for backup tong and three kinds of dies are suitbable for both master tong and backup tong.
Die seats and dies specification
Serial No. |
Purchase No. |
Part Name |
Mark(Steel mark) |
Note |
1 |
12AZ-107.1 |
Die Seat 1 |
143-138 |
|
2 |
12AZ-107.2 |
Die Seat 2 |
132.5-128 |
|
3 |
12AZ-107.3 |
Die Seat 3 |
127-122 |
|
4 |
12AZ-107.4 |
Die Seat 4 |
121-116 |
|
5 |
12AZ-107.5 |
Die Seat 5 |
114-109 |
|
6 |
12AZ-107.6 |
Die Seat 6 |
107-102 |
|
7 |
12AZ-107.7 |
Die Seat 7 |
93-86 |
|
8 |
12AZ-107.8 |
Die Seat 8 |
73-70 |
|
9 |
12AZ-107.9 |
Die Seat 9 |
78 |
|
10 |
12AZ-107.10 |
Die Seat 10 |
60 |
|
11 |
12AB-29 |
Die Seat |
156-151 |
For Backup Tong Only |
12 |
12AZ-110.1 |
Die 1 |
73-78 |
|
13 |
12AZ-110.2 |
Die 2 |
89-114 |
|
14 |
12AZ-110.3 |
Die 3 |
121-156 |
|
Second, the selection of die seats and dies.
This power tong clamps pipe strings of different outside diameters by changing die seats and dies of different specifications. The die seats and dies are equally usefull for master and backup tongs when clamping pipe strings of the same outside diameter. When selecting die seats and dies, refer to the stamp marks and part numbers on their back.
Third, the mounting and dismounting of die seats and dies.
- Dismounting die seat assembly:pull one die seat assembly to the center of tong head, lift it upward out of tong head directly, take out the other one in the same way. Mounting operation is the other way round.
- Dies mounting and dismounting:take out die seat and loose the screw pin on one end, then take out dies. Mounting operation is the other way round, tighten the screw pin after mounting.
Fourth, please note,
- Using die seats with different specifications will damage the tong.
- The hydraulic power source must be cut off when changing jaw plates, die seats and dies.
- Die seats and dies must be changed in pairs.
- Refer to the steel mark on the die seats and dies for the specification.
- 5-1/2" casing can be mounted or dismounted with 143-148 die seats for master tong(jaw plate remains the same) and 156-151 die seats and jaw plate (2) for backup tong.

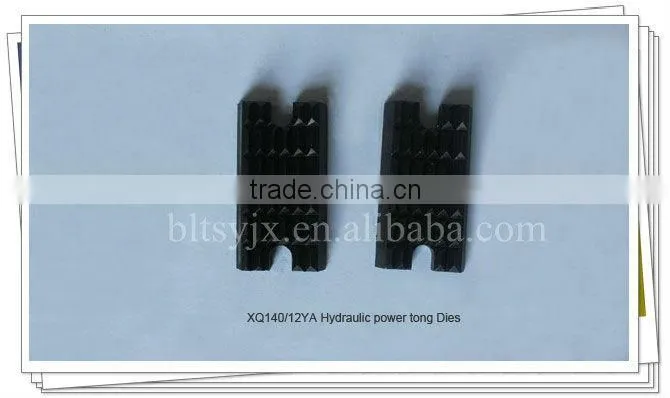

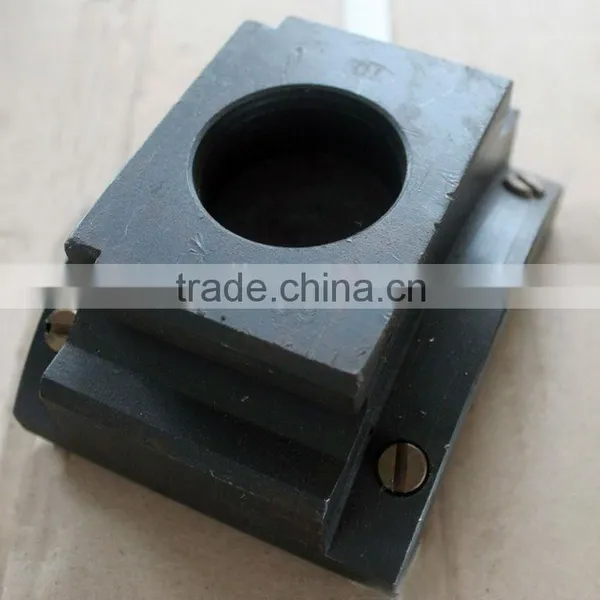

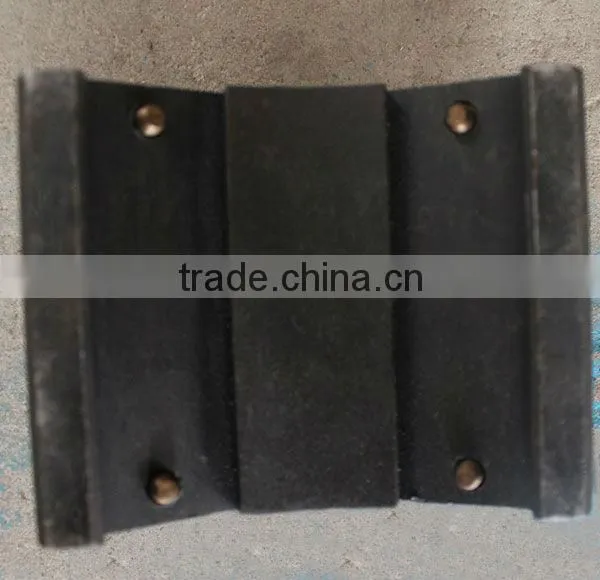

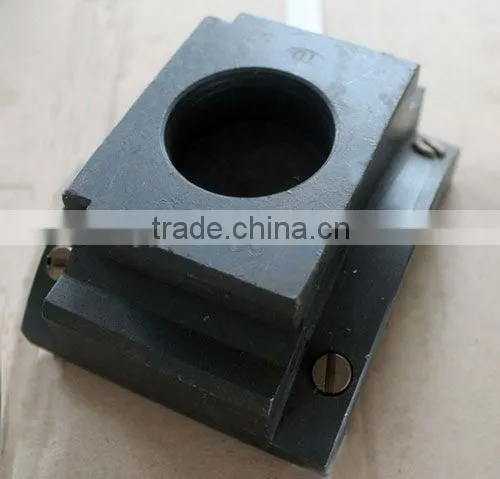

Fifth, the pictures about die seats and dies of XQ140/12YA Hydraulic power tong.
