Help CenterChina Manufacturer! API 5CT Female Tube Collar
Related Products
-
Api 5ct 2 7/8 N80 Eue Oil Tubing CouplingNegotiableMOQ: 1 Piece -
API 5CT Nue 3 1/2 J55 Tubing Collar/nippleNegotiableMOQ: 1 Piece
-
Hot Sale! API 5ct Steel Shaft Pipe Collars N80NegotiableMOQ: 1 Piece
-
Top Quality API 5CT 3 -1/2" P110 NUE Steel Pipe CollarNegotiableMOQ: 1 Piece
-
High Quality! API Swivel Female Shaft Coupling N80NegotiableMOQ: 1 Piece
Specifications
API 5CT female tube collar2.Material:J55, K55, N80-1, N80-Q, L80, C90, P110
3.Feature:good sealing
4.Std Rfc:API 5CT&5B
API 5CT female tube collar
Detailed description
(1)Introduction
Our company manufactures and sells tubing couplings, and we have got API Certificate for tubing couplings. tubing coupling is a connection for oilfield, the features are as follows:
1.Material:J55, K55, N80-1, N80-Q, L80, C90, P110
2.Size: tubing coupling from 2-3/8" to 4-1/2"
3.Feature:good sealing
4.Surface treatment: Whole phosphating, or inside phosphating and outside coating
5.Packing: By carton, wooden case, wooden pallet, or by requirements of customers
Name |
Size |
Type of Thread |
O.D*L(mm) |
Weight(kg) |
Load carring width(mm) |
Standard reference |
|
API 5CT female tube collar |
2-3/8"TBG |
NU |
73.02*107.95 |
1.28 |
4.76 |
API 5CT 5B |
2-3/8"UPTBG |
EU |
77.80*123.82 |
1.55 |
3.97 |
API 5CT 5B |
|
2-7/8"TBG |
NU |
88.90*130.18 |
2.34 |
4.76 |
API 5CT 5B |
|
2-7/8"UPTBG |
EU |
93.17*133.35 |
2.4 |
5.56 |
API 5CT 5B |
|
3-1/2"TBG |
NU |
107.95*142.88 |
3.71 |
4.76 |
API 5CT 5B |
|
3-1/2"UPTBG |
EU |
114.30*146.05 |
4.1 |
6.35 |
API 5CT 5B |
|
4"TBG |
NU |
120.65*146.05 |
4.35 |
4.76 |
API 5CT 5B |
|
4"UPTBG |
EU |
127.00*152.40 |
4.82 |
6.35 |
API 5CT 5B |
|
4-1/2"TBG |
NU |
132.08*155.58 |
4.89 |
4.76 |
API 5CT 5B |
|
4-1/2"UPTBG |
EU |
141.30*158.75 |
6.05 |
6.35 |
API 5CT 5B |
|
1. Material:J55,K55,N80-1,N80-Q,L80,C90,P110 | ||||||
2.We also supply permium thread products by customer's request | ||||||
3.Size:tubing coupling from 2-3/8"to 4-1/2" | ||||||
4.Feature:good sealing | ||||||
5.Surface treatment: whole phosphating, or inside phosphating and outside coating | ||||||
6. Packing :by carton,wooden case ,wooden pallet or by customer requests | ||||||
(2)Package informations

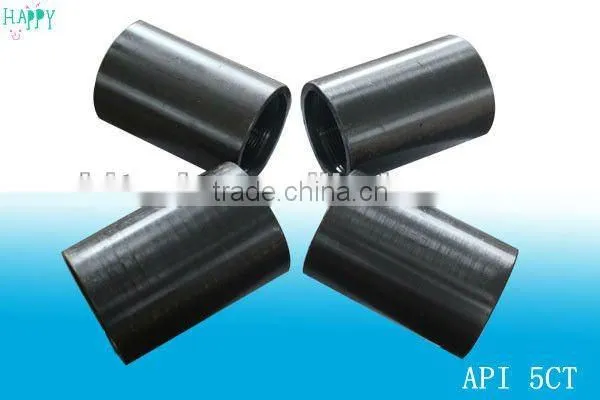

(3)Product picture
(3) API Certificate
