Specifications
API Steel forged tubing nipple2.Type:nipple
3.Size:from 2-3/8"to 4-1/2"
4.Std Rfc:api 5ct
5.OEM Service offered

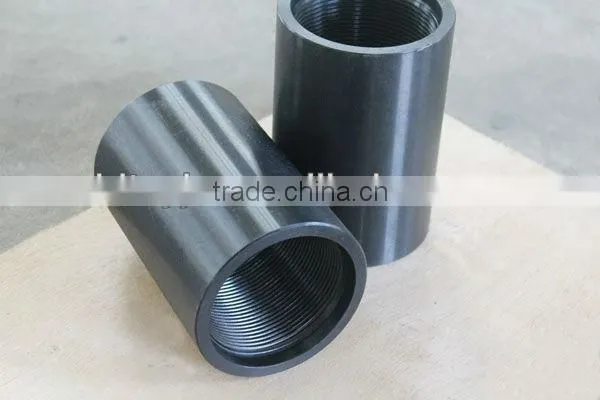

API Steel forged tubing nipple
Detailed product description

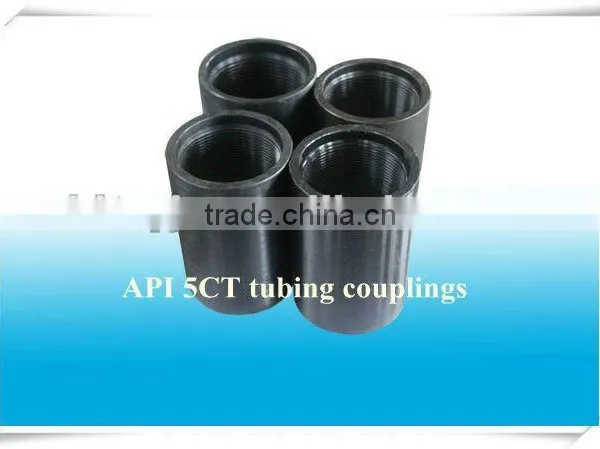

Our company manufactures and sells tubing couplings, and we have got API Certificate for tubing couplings. tubing coupling is a connection for oilfield, the features are as follows:
1.Material:J55, K55, N80-1, N80-Q, L80, C90, P110
2.Size: tubing coupling from 2-3/8" to 4-1/2"
3.Type:nipple
4.Surface treatment: Whole phosphating, or inside phosphating and outside coating
5.Packing: By carton, wooden case, wooden pallet, or by requirements of customers
6.Std Rfc:api 5ct
Name |
Thread |
Specifications |
O.D*L(mm) |
Weight(kg) |
Load carring width(mm) |
API Steel forged tubing nipple |
NU |
2-3/8"TBG |
73.02*107.95 |
1.28 |
4.76 |
2-7/8"TBG |
88.90*130.18 |
2.34 |
4.76 |
||
3-1/2"TBG |
107.95*142.88 |
3.71 |
4.76 |
||
4"TBG |
120.65*146.05 |
4.35 |
4.76 |
||
4-1/2"TBG |
132.08*155.58 |
4.89 |
4.76 |
||
EU |
2-3/8"UPTBG |
77.80*123.82 |
1.55 |
3.97 |
|
2-7/8"UPTBG |
93.17*133.35 |
2.4 |
5.56 |
||
3-1/2"UPTBG |
114.30*146.05 |
4.1 |
6.35 |
||
4"UPTBG |
127.00*152.40 |
4.82 |
6.35 |
||
4-1/2"UPTBG |
141.30*158.75 |
6.05 |
6.35 |
||
1.Advantage:good sealing | |||||
2.Size:from 2-3/8"to 4-1/2" | |||||
3.Material:J55,K55,N80,L80,C90,P110, N80-1,N80-Q | |||||
4.Surface treatment:whole phosphating,or inside phosphating and outside coating | |||||
5.Package:by carton, wooden case, wooden pallet or by customer request | |||||
Package informations
