SM series Low voltage Busbar insulator
SM series Busbar insulator
1.Low voltage insulator
2.Electrical resistance
3.Heat,fire,water resistance
4.Low shrink
Introduction:
The SM series low voltage busbar insulaor is made of bulk molding compound, unsaturated polymer with fiber glass(BMC, DMC).
Specification:

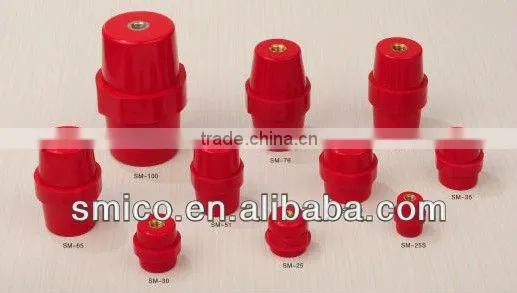

1. Size: SM-25,SM-30,SM-35,SM-40,SM-45,SM-51,SM-60,SM-76
2.Variety of Screw M6, M8, M10, M12
2.Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties
Main technical parameters
Values |
Style |
|||||
SM-25 |
SM-30 |
SM-35 |
SM-40 |
SM-51 |
SM-76 |
|
Temsile strength(lbs) |
500 |
550 |
600 |
650 |
1000 |
1500 |
Torgue strength(fr lba) |
6 |
8 |
20 |
12 |
20 |
40 |
Voltage withstand(kv) |
6 |
8 |
10 |
12 |
15 |
25 |
Screw(mm) |
6 |
6 |
8 |
8 |
8 |
10 |
Weight(g) |
28 |
44 |
50 |
56 |
83 |
233 |
1.Can off CO,Form B ,Form A and others
2.Supply OEM/ODM
3.Can be customerized
1.Q: How is your quality ?
A: The quality of our products are very good ,we accept customers to test them .
2.Q: How is your price ?
A: Cheaper price with good quality ,we can not say our price is the lowest in China .but we can say our price is cheaper than most factory in China
3.Q: Do you have quality certificate ?
A: Yes,we have ,we have ISO-9001 certificate and CE ,CB ,CCC certificate .
4.Q: How long is your warranty time for your product?
A: Warranty time:one and half year ,any problem caused by quality can be changed by new in your next order .
5.Q: Are those pictures real pictures of your factory ?
A: Of course 100% real pictures of our factory ,you can not find them on internet !
6.Q: Can you offer free sample to test quality ?
A: Yes ,we can .wish to cooperate with you in the future .
