Help CenterYJZ60A H I BOX Beam Steel Hydraulic Straightening Machine Steel Building Welding Machinery
Related Products
-
YJZ80B H I BOX Beam Plate Hydraulic Straightening Machine h Beam Production LineUS$ 15,000 - 35,500MOQ: 1 Set -
H I BOX Beam Welding Line Wuxi StyleUS$ 15,000 - 60,000MOQ: 1 Set
-
Automatic H I BOX Beam Straightening Machine H Beam Welding Production LineUS$ 11,000 - 13,000MOQ: 1 Set
-
YJZ60B H I BOX Beam Plate Hydraulic Straightening MachineUS$ 20,000 - 30,000MOQ: 1 Set
-
YJZ60A H I BOX Beam Plate Hydraulic Straightening Machine h Bem Welding MachineUS$ 20,000 - 30,000MOQ: 1 Set
Specifications
H I BOX Beam steel Hydraulic Straightening Machine steel building welding machinery1.H / I beam Web height: >200mm
1. YJZ60A H I BOX Beam steel Hydraulic Straightening Machine steel building welding machinery technology
1 |
Flange thickness |
mm |
6-40,20-60,20-80,20-100 |
2 |
Flange width |
mm |
200-800,1000 |
3 |
Web height |
mm |
200-1500,2000,2500 |
4 |
H beam length |
mm |
4000-16000 |
5 |
Web thickness |
mm |
8-60,80 |
6 |
Hydraulic |
1 set, Chinese or other brand customer choose |
|
7 |
Length of complete line |
m |
108 |
8 |
Output one year |
mm |
500-900T |
2. YJZ60A H I BOX Beam steel Hydraulic Straightening Machine steel building welding machinery work process
YJZ60 hydraulic straightening machine is specially designed for the straightening of Heavy duty H beam, which has big different with the normal H beam straightening machine. It adopt the straightening principle of pressing wheel stretching at same axis line, and the up-pressing wheel is controlled by hydraulic cylinder to up/down moving. It has the advantages of equal receiving force on flange when straightening, small rebounding after straightening, simple structure and easy operation etc. The equipment is fitted with floating roller structure, which is hydraulic controlled. It is the very important equipment for producing Heavy duty H beam.
3.Application of YJZ60A H I BOX Beam steel Hydraulic Straightening Machine steel building welding machinery
Cranes manufacture, steel structure manufacture,bridge building,h beam build up,automatic light h beam welding,spot welding machine, steel fabrication
4.Advantage of YJZ60A H I BOX Beam steel Hydraulic Straightening Machine steel building welding machinery
Easy operation, automatic welding,easy installation,lasting life
5.Machine seat and support column process of YJZ60A H I BOX Beam steel Hydraulic Straightening Machine steel building welding machinery
Steel box column processed on CNC machining center, to make sure good fitting and high strength
6.Strict and serious quality testing for YJZ60A H I BOX Beam steel Hydraulic Straightening Machine steel building welding machinery
There are two moving quality inspectors at each process, and the manager for each shift and monitor the production closely. Inspect and correct the parts after machining before assembling.

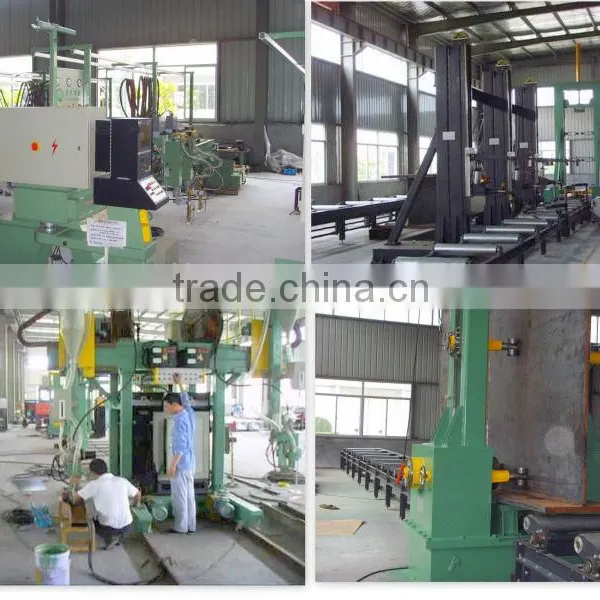

7.Factory and Workshop show for YJZ60A H I BOX Beam steel Hydraulic Straightening Machine steel building welding machinery
8. Package and shipment for YJZ60A H I BOX Beam steel Hydraulic Straightening Machine steel building welding machinery
9. Warranty and Service after sales for YJZ60A H I BOX Beam steel Hydraulic Straightening Machine steel building welding machinery
Warranty time: 12months since machinery installation finished.
Service after sales:
Professional Installation and training at customer spot factory,during time decides by different machine.
Lower price of consumable parts than markets .
Trouble response: 24hours online reply. If broken parts is not comsumable parts or breaks by wrong operation, we can send the broken parts free once confirmed.
Engineer service available overseas.
10.Exhibitons and products YJZ60A H I BOX Beam steel Hydraulic Straightening Machine steel building welding machinery
