Specifications

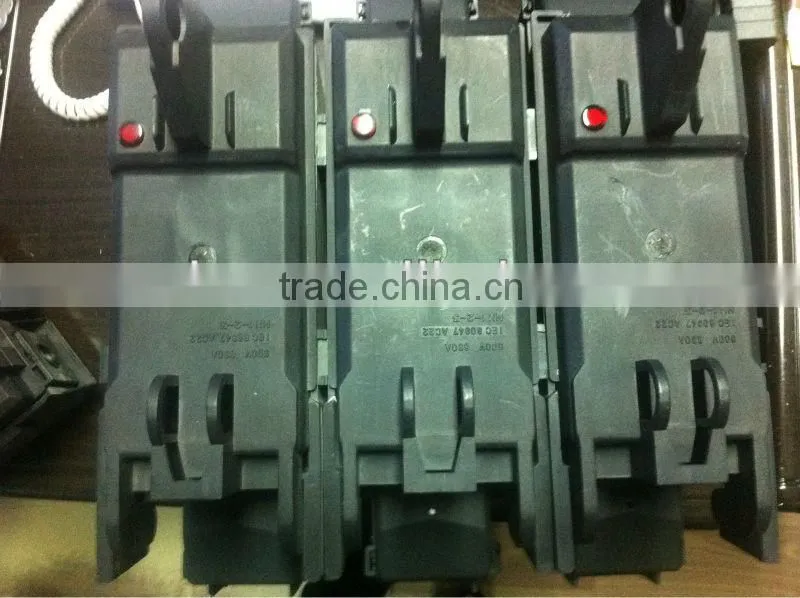

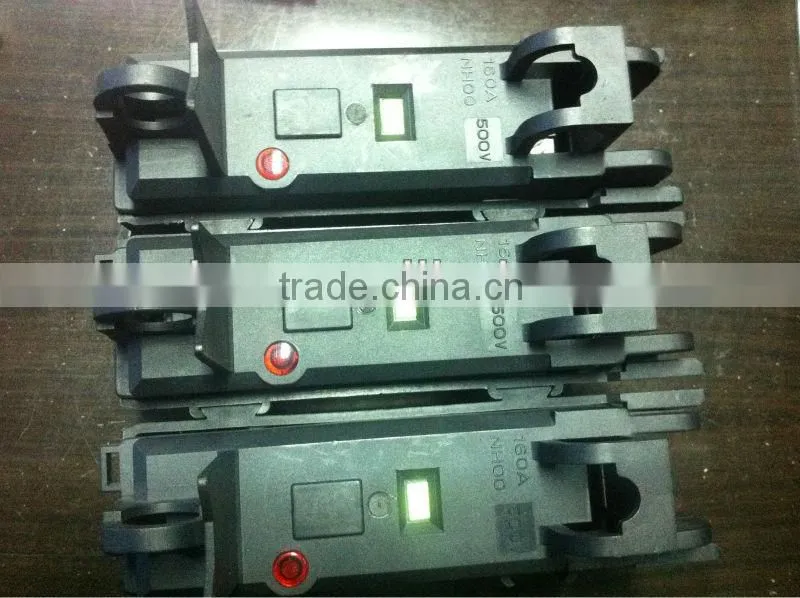

NT fuse switch disconnector1.Pole: Three
2.Rated voltage:500V
3.Rated current: 630A
Introduction

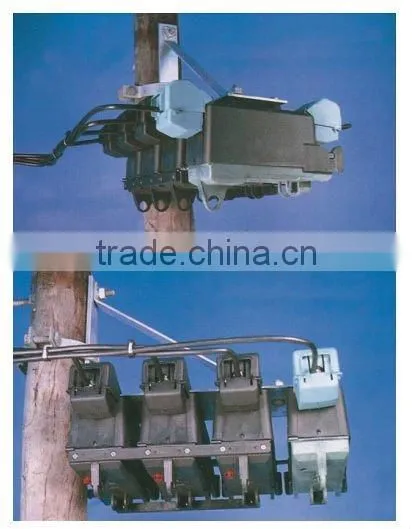

Three pole Fuse switch is suitable for switching and protecting LV overhead lines, and /or to include a protection when doing a connection to low voltage underground systems. The design of this equipment aloows the opening and closing of the three phases simultaneously and independently from the netural,
which is clearly identified to prevent its disconnection in rigidly landed systems.
Technical characteristics
Voltage |
500V |
Insulation level |
1000V |
Frequency |
50/60Hz |
Operational current with fuses |
630A |
Operational current with blades |
800A |
Installation category |
AC22 |
Short lasting current (1s) |
12KA |
Dynamic current (crest ) |
50KA |
Interruption capacity |
100KA |
Operations behavior without load (open) |
800 |
|
Operations behavior (operation) (400A Cos fi 0,65) |
200 |
Weight |
1.8Kg |
Protection range |
IP23 |
