APDM160-Single phase switch for NH type fuses

Specifications

The APDM160 fuse switch it is used either as an operation pr protection device for LV lines.It is designed to be used with NH00

The APDM160 fuse switch it is used either as an operation pr protection device for LV lines.It is designed to be used with NH00 size fuses offering a maximum of 160A of line protection without blades.

In case blades are used,the maximum switching load would be 250A.It is manufactured in reinfored fiberglass polyamide and fulfills all the necessary requirements for outdoor installation and operation.

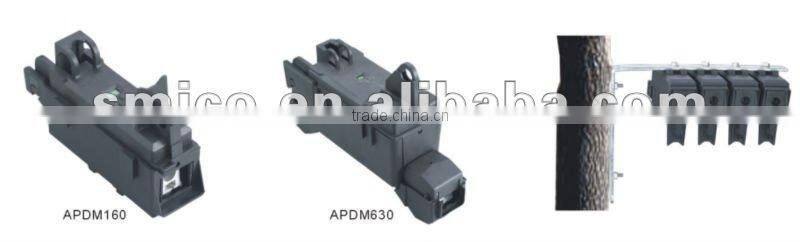

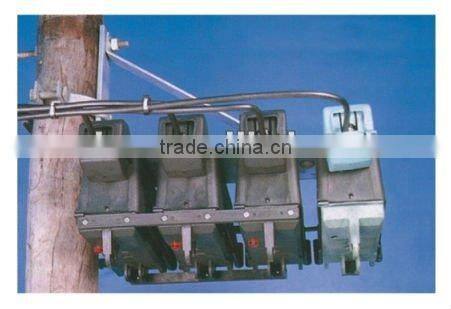

In the APDM 160C model the connection is made with terminals lugs and both models can be installed with single phase or three phase opening.

They have special sockets to obtain a compact set.

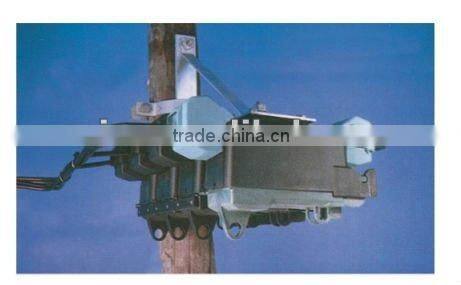

The switch is operated from the ground with an operating rod and also has an indicator to show if the fuse is placed.It can be sealed with security ties.

It also has a led to show the fusion of the fuse.



Voltage                                            500V

Insulation level                                  1000V

Frequency                                        50/60Hz

Operational current with fuses            160A

Operational current with blades           250A

Installation category                          AC22

Short lasting Current(1S)                   3.2KA

Dynamic current(crest)                      25KA

Interruption capacity                         100KA

Minimum mechanical life(operation)   1000

Weigth                                            600G

Protection range                              IP23
