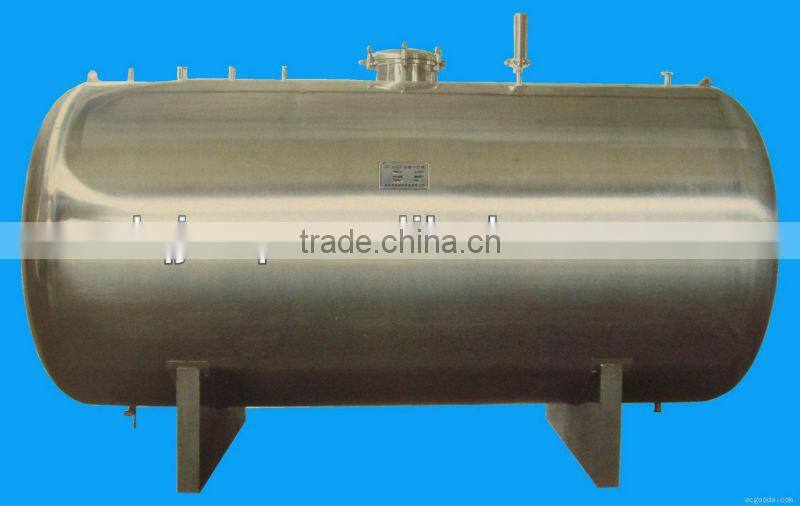

Gas Storage Pressure Vessel/gas tank/gas container/Gas Storage pressure vessels
- 5 Set / Sets per Month
- Qingdao Tianjin
- T/T
- cryogeinc Liquid Nitrogen container Spray 500ml tank 300ml bottom low temperature cryo device
- 30liter liquid gas machine liquid nitrogen dewar for medicine cryo use
- ln2 Self-pressurized container dewar factory trolley low pressure tank liquid nitrogen pipe 50l
- liquid argon tank sizes, liquid nitrogen cylinder sizes, liquid co2 tanks
- liquid petroleum gas tank, liquid co2 storage gas tank, liquid gas cylinder
- China Liquid Gas Tanks, Liquid Gas Tanks Manufacturers, Suppliers
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Luqiang |
Model Number: | LQR | Dimension(L*W*H): | according to demand | Capacity: | 0.5~1,000 m³ |
Weight: | 1-15t |
Product Description
Specifications
1,Max working pressure:20Mpa2,Max working steel thickness: 400mm
3,Max single product weight: 640ton
This product is key equipment which has a widely application in building material factory to autoclaved cure different kinds of building materials. It is also used in areas of chemical, textile, wood, metallurgy, military industry. Convenient operation, security and reliable are its advantages.
Technical specification | parameters | Subject | parameters |
| |||
tank | Item Number | CLG2400-50 LPG tanker | Liquid Indictor | Model | UHZ-518C14 |
| |
Overall dimensions(mm) | 11657×2428×3028 | Version | Magnetic |
| |||
Net weight(Kg) | 10760 | Norminal pressure | 2.5Mpa |
| |||
Vessel type | III | Scope of testing | 50-2300mm |
| |||
Designing pressure | 1.77Mpa | Precision | 2.5 |
| |||
Working pressure | 1.61Mpa | Safety Valve | Model | A42F-2.5-80 |
| ||
Designing temperature | -19~50 | Version | Built-in |
| |||
Filling Medium | Propane | Norminal pressure | 2.5 Mpa |
| |||
Corrosion margin | 1.0mm | Nominal diameter | DN80 |
| |||
Volume | 50m3 | Openning pressure | 1.68-1.76 Mpa |
| |||
Heat treatment | bulk | Re-seating pressure | 80% of openning pressure |
| |||
Filling factor | 420kg/m3 | Handling System | Norminal Diameter | Feed pip | DN80 | ||
Material | 16MnR | Drain pip | DN80 | ||||
Hydraulic test pressure | 2.22 Mpa | Admission port | DN50 | ||||
Gas tight test pressure | 1.77 Mpa | Sewage outfall port | DN80 | ||||
Cylinder thickness | 13.56mm | Vent nozzle port | DN80 | ||||
Head thickness | 13.53mm | stand | GB150-1998 steel pressure vessels |
| |||
Service time | 10 years | Safety regulation of pressure vessels |
|
