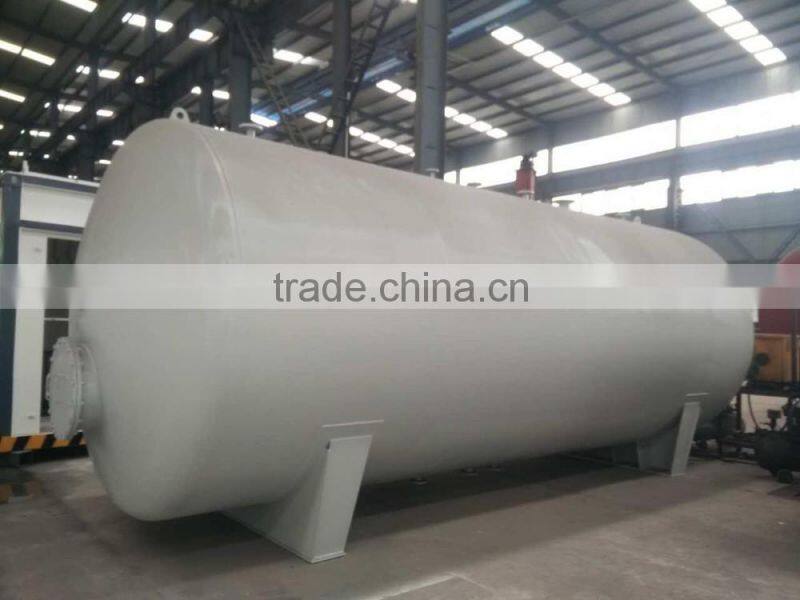

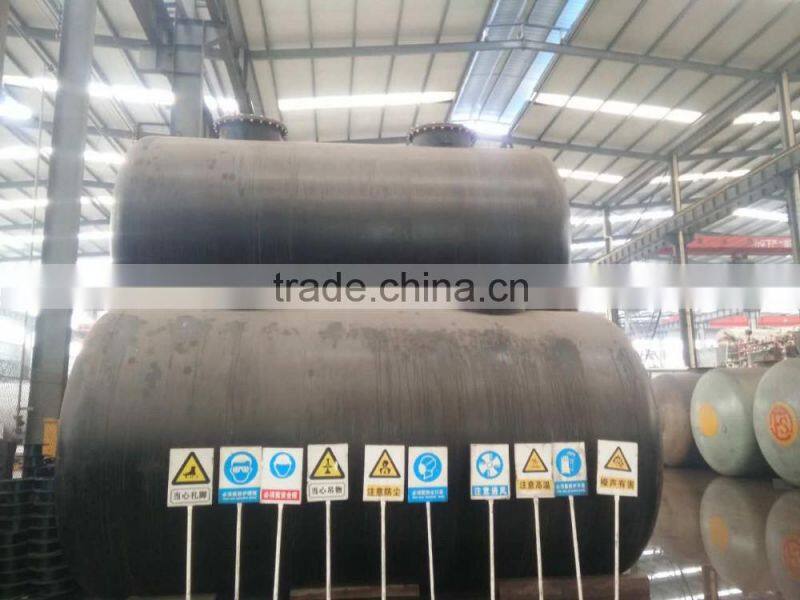

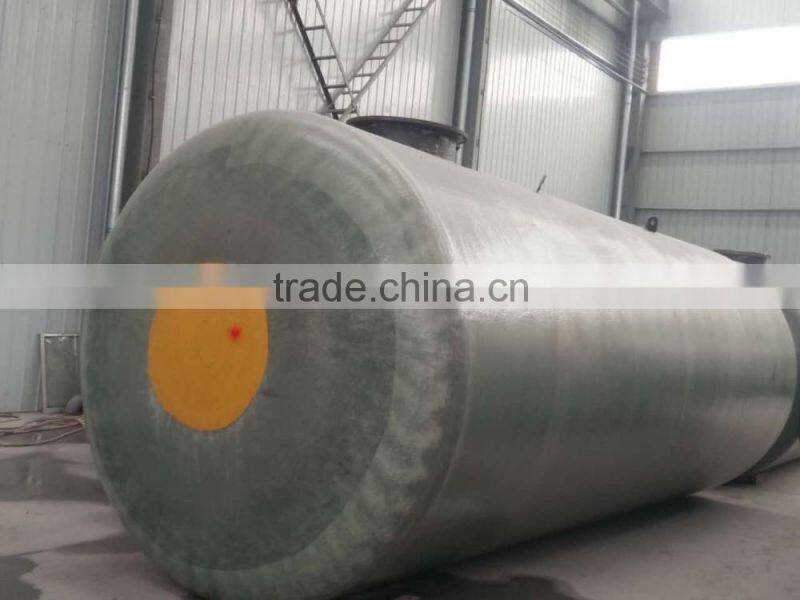

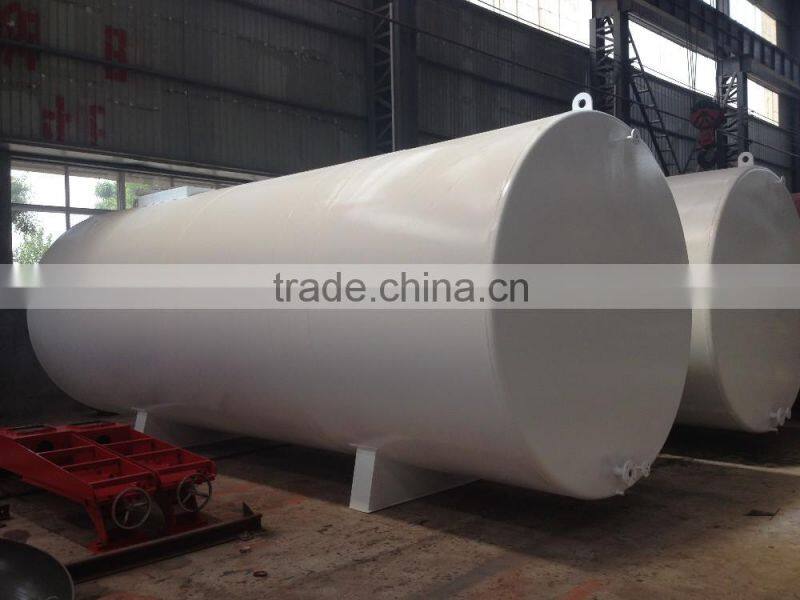

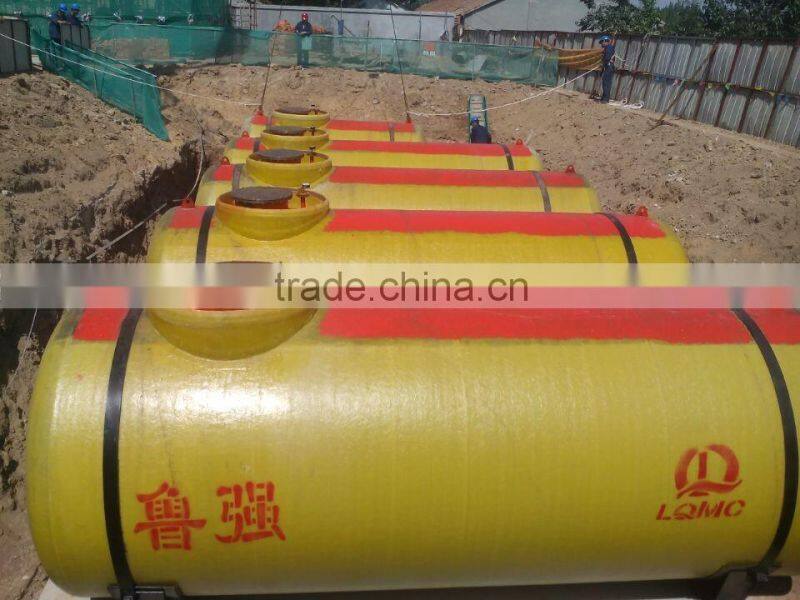

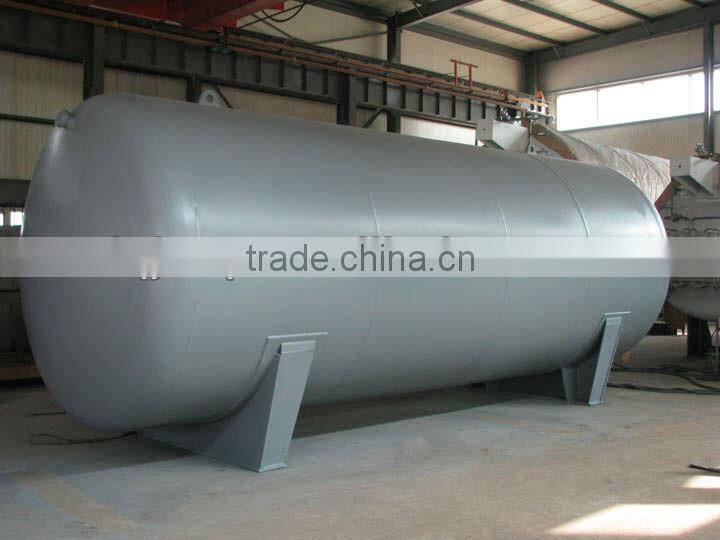

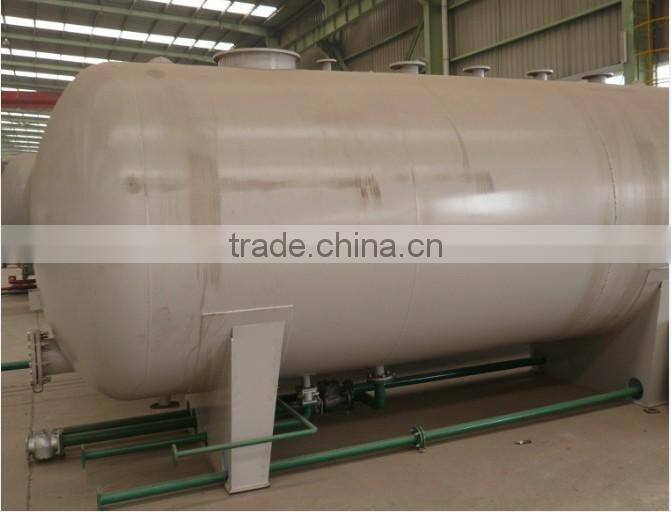

Oil Storage Tank With ULcertification/iso Certification Made by Luqiang
- Qingdao port/Tianjin port
- T/T Money Gram
You May Like
-
All Kinds of Welded Cement Storage Silos for Sale
-
Carbon Steel and Stainless Steel Oil Tank Torage Tank Vessel
-
Oil Tank/High Quality Oil Storage Tank/ Vertical Vessel
-
Water Tank/High Quality Oil Storage Tank/ Vertical Vessel
-
High Quality Double Wall Fuel Storage Tanks From Professional Manufactuer
-
Double-layer Tank Manufacturer in Hot Sale
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | luqiang vessel | Model Number | LQR | |
| Dimension(L*W*H) | depend on need | Capacity | 1-100m³ | |
| Weight | 1-100T | After-sales Service Provided | Overseas third-party support available |
Product Description
Oil storage tank is to store oil, it is main equipment of oil tanks. Storage tanks according to the material can be divided into metal tank and non-metal tank; According to the location can be divided into underground tank, half underground tank and tank on the ground; According to the type of installation can be discrete, horizontal;
The basic parameters
1, pressure: the atmospheric temperature: - 19 ℃ ~ 200 ℃
Medium: oil (petroleum chemical raw materials, etc.)
2, 5 m & sup3; ~ 100 m&sup 3;
Basic parameters and size horizontal tank
3, safety:
Tank wall ray, anti-static, fire control measures, according to the actual circumstance of engineering by unit of choose and choose and sanitation measures.
4, anticorrosive:
Tank wall anticorrosion measures shall be determined according to the tank storage medium, the outer wall corrosion protection measures according to pot of soil.
5, according to the container made material and different specifications, main material selection of stainless steel, carbon steel, low alloy steel. According to the customer request to design and manufacture, installation.
Item | Effective Volume
(m3) | Max Working Pressure (Mpa) | Diameter
(mm) | Height
(mm) | Weight
(KGS) | Pressure Raising Rate Kpa / day
|
CFW-5/2.2 | 5 |
2.2 | Φ1912 | 4950 | ~6100 | <35 |
CFW-10/2.2 | 10 | Φ2216 | 6150 | ~9315 | <35 | |
CFW-15/2.2 | 15 | Φ2216 | 7550 | ~12560 | <35 | |
CFW-20/2.2 | 20 | Φ2620 | 8150 | ~15100 | <35 | |
CFW-30/2.2 | 30 | Φ2900 | 8450 | ~21500 | <35 | |
CFW-50/2.2 | 50 | Φ3100 | 11500 | ~33500 | <35 | |
CFW-100/2.2 | 100 | Φ3500 | 15650 | ~59800 | <35 |
