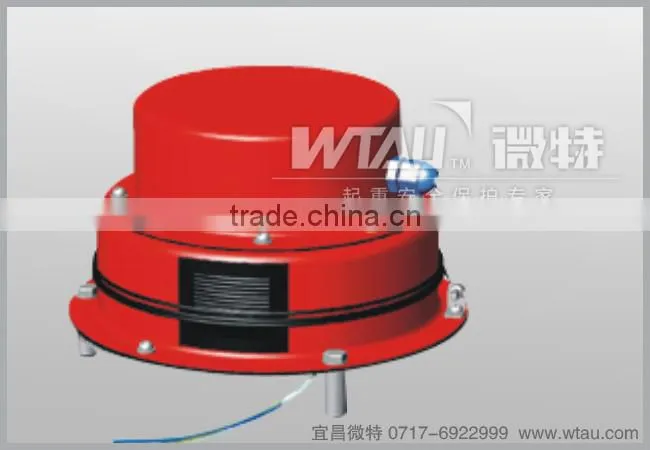

electronic boom length & angle sensor for crane
Description
The Length/Angle sensor is installed on the boom of the crane, assisting the instrument control and display the length of the crane arm, lifting the arm relative to the horizontal plane Angle, and the control of the crane hoisting height, etc. The technical indicator of the products is located in the front in the whole country.
Model
WTC/J- R (right mounting type), WTC/J- L (left mounting type)
Components
the electrically conductive plastic potentiometer (CPP)
Size
Model |
B |
H |
H1 |
WTC/J-15L/R |
250 |
180 |
145 |
WTC/J-25L/R |
280 |
210 |
175 |
WTC/J-45L/R |
452 |
237 |
Main parameters
Model |
Relay Signal |
Length measurement range |
Angle measurement range |
Signal Output |
Length nonlinearity |
Angle nonlinearity |
WTC/J-15L/R |
3 signals (Power, public, signal) |
0-15m |
-10°~90° |
0~10V |
≤0.2% |
≤0.15° |
WTC/J-25L/R |
3 signals (Power, public, signal) |
0~25m |
-10°~90° |
0~10V |
≤0.2% |
≤0.15° |
WTC/J-45L/R |
3 signals (Power, public, signal) |
0~45m |
-10°~90° |
0~10V |
≤0.2% |
≤0.15° |

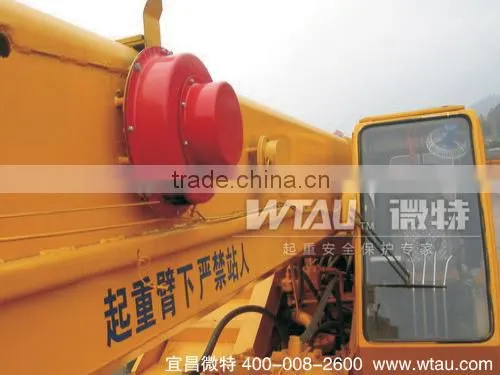

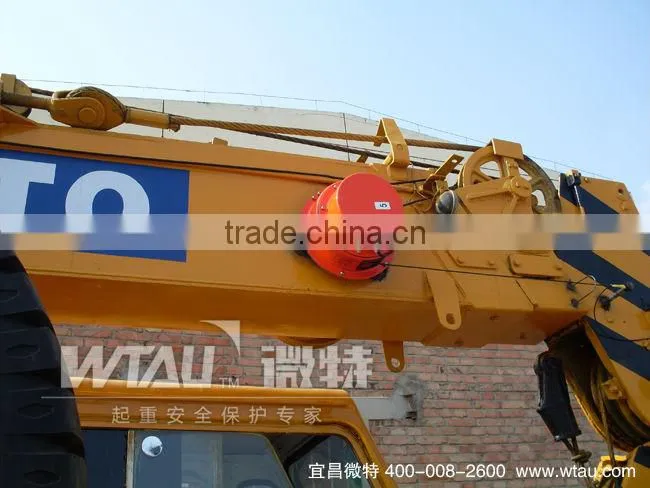

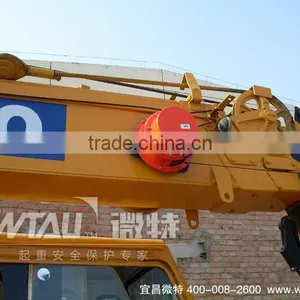

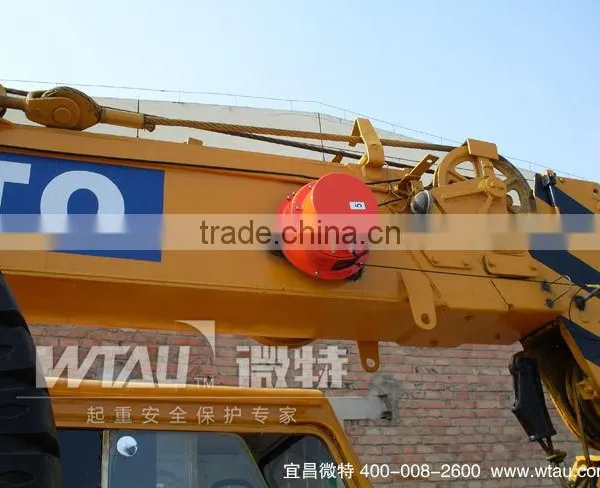

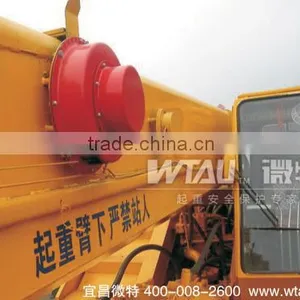

Installation pictures
