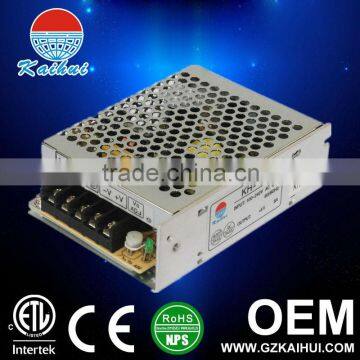

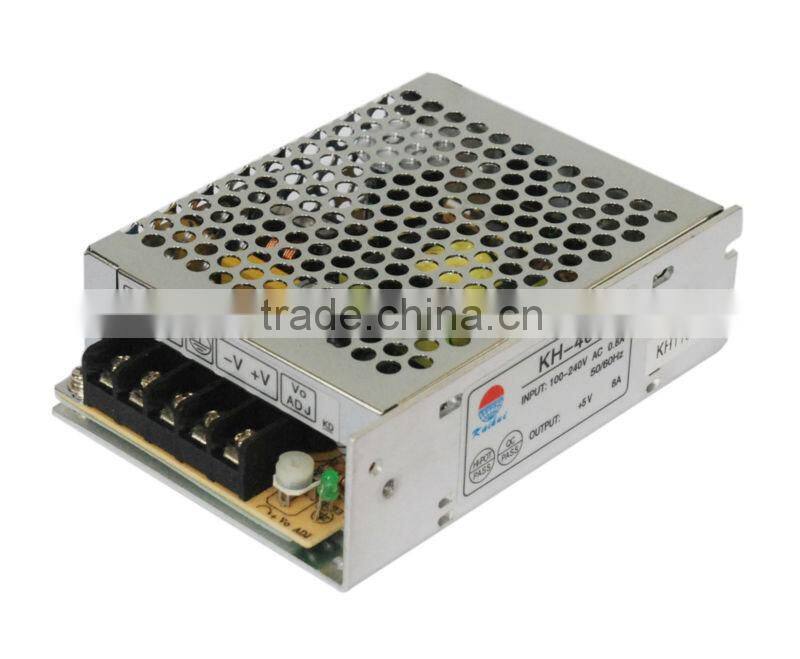

40w DC-UPS Backup Battery for Door Access Control Systerm

40W DC-UPS

case:K805     110×78×35mm

Features:

Product:Small size, High efficiency

Universal AC input/ Full range

Protections:Short circuit/Over load

Charging/discharging switch automatically

Battery under voltage protection

Fully charge discharge instructions

Input voltage range -----------176~264V AC

Over load protection ------105%~150%(rated load),Auto-recovery

Charge mode --------rated voltage,(current)charge

Withstand voltage---------- Input-Output: AC1.5KVACV,1min;

Working temperature ------ -10~+50℃@100%, 60℃@60%load

Safety standards -----------MeetGB4943

Weight---------------0.4kg

Code

Item No.

Output

Tol.

R&N

Effi.

0520

KDC40-12

+12V,3A

±10%

100mV

80%

+13.8V,0.7A

±2%

0521

KDC40-24

+24V,1.5A

±10%

100mV

80%

+27.6V,0.4A

±2%
