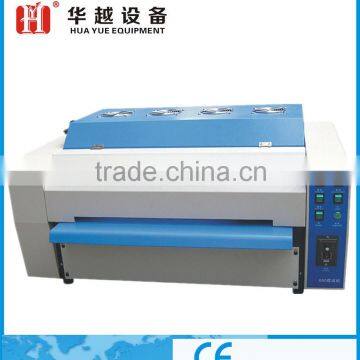

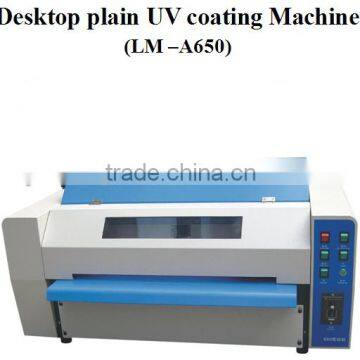

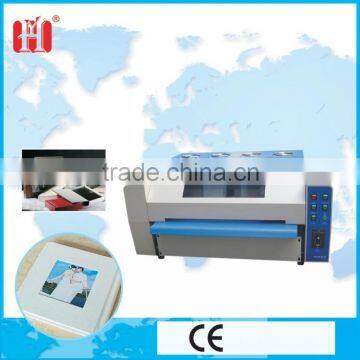

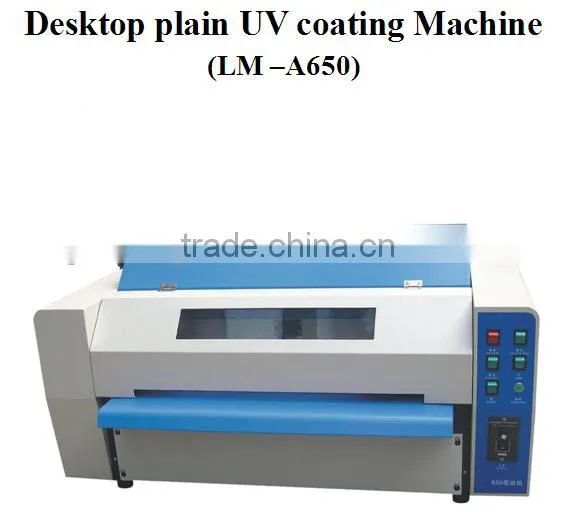

Uv Printing Machine
This Uv Lamination Machine can apply photo ,picture, painting and paper etc.with Uv varnish which has good preservative waterproof and excellent performance . Through the process of laminating, the graphics will be fresh, colorfast, non-yellowing. This method is now widely applied in wedding photography, spraying and painting as well as document, calligraphy , invitations and more.
Specifications
Maximum Laminating Width: |
25” (650mm) |
Maximum Laminating Thickness: |
5mm |
Laminating speed |
10m/minute |
Dry system |
Uv or ( UV and IR) |
Voltage |
AC220v/50hz/single phase |
Power |
6.5kw |
Machine size |
39*36*19”(1012*935*495mm) |
Package size: |
49*32*27”(1050*815*705mm) |
Net Weight: |
118kg |
Shipping Weight: |
148kg |
Main Features
- UV dry system or both uv and ir dry systems in one machine,best quality for laser printing sheet.
- Adjustable laminating speed
- Adjustable roller position suitable for various material thickness
- 11 texture designs to be choosed,one texture design in the machine
- Texture roller can be changed
- Uv varnish is recycling
- Low cost than the film lamination
- Small occupation
- Light weight and easy to use
- Easy to clean the machine with alcohol
Cost analysis: the thickness of the uv liquid can be adjusted , normally it’s 3-5g/m2 and it can be diluted by alcohol.One kilogram of uv liquid can coat an area of 300 m2 pictures,which means that the actual cost is 0.3 RMB /m2 to 0.5 RMB/m2, If cold lamination, the prime cost is 7.5RMB/m2,the prime cost for inkjet printer machine is 3-5RMB/m2,hence buying a uv coating machine is a machine that earns money.
Package

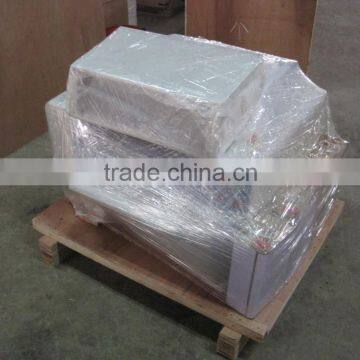

Plywood box is suitable for the export and long transportation,free fumigation.
Payment
We usually accept T/T,WESTERN UNION,L/C.payment terms :EXW. FOB.CFR.CIF .FCA.CIP. CPT. ,and so on.
Shipment
Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.) or FCA,
We arrange the local shipment,which’s easy for you to control the transportation cost.
Warranty
- 1 years warranty for the machines.
- Any warranty shipping cost to us is responsible by buyer
Certificate OF Quality
Showroom and worshop
QQ810562596
Phone:9+86)750-3222029
