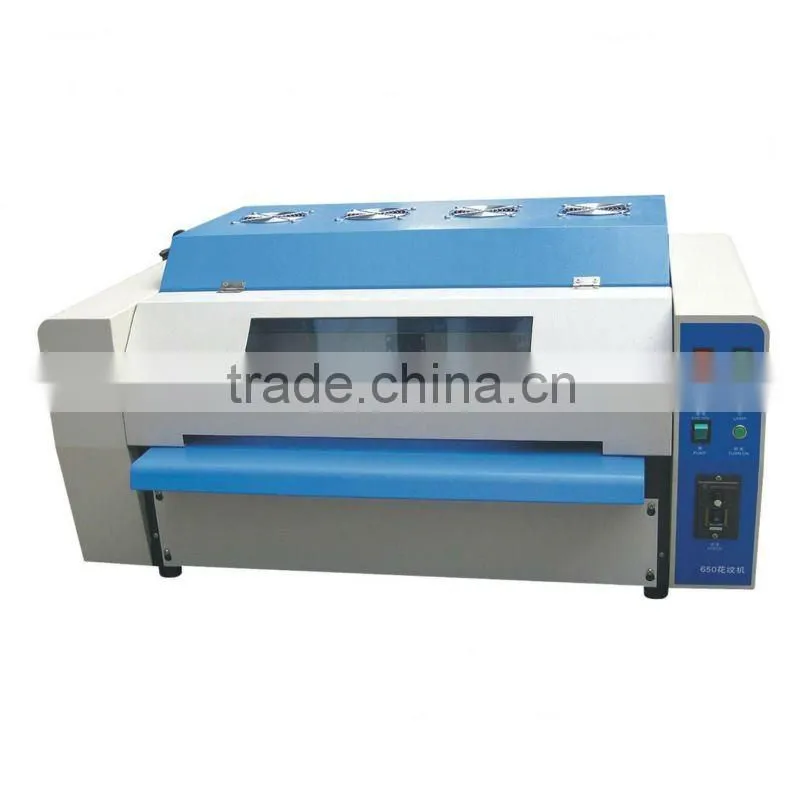

Uv Coater
SPECIFICATIONS:
| laminating width(inch.) | 12 | 18 | 24 | 36 |
| laminating paper thickness(mm) | 10 | 10 | 10 | 10 |
| laminating speed(m/minute) | 10 | 10 | 10 | 15 |
| method of dry | uv lamp | uv lamp | uv lamp | uv lamp |
| voltage |
AC220V/50HZ (single phase) |
AC220V/50HZ (single phase) |
AC220V/50HZ (single phase) |
AC220V/50HZ (single phase) |
| power(kw) | 2.5 | 2.5 | 4.5 | 6.5 |
| machine dimension(mm) | 995*732*495 | 860*935*475 | 1015*740*500 | 1360*1120*1350 |
| N/W /G.W(kgs) | 72.2/99 | 90.5/115 | 111/138 | 280/360 |
| packing size | 775*770*710 | 897*778*714 | 772*1050*740 | 1260*1480*1600 |
MAIN FEATURES:
1.used for laminating photos, pictures, paper
2. Fine workmanship, beautiful shape
3waterproof, wear-resistant,scratch-resisting after Laminating
4.Easy to operate, low cost, uses widely
5.glossy and matt lamination
Cost analysis : the thickness of the uv liquid can be adjusted , normally it’s 3-5g/m2 and it can be diluted by alcohol.One kilogram of uv liquid can coat an area of 300 m2 pictures,which means that the actual cost is 0.3 RMB /m2 to 0.5 RMB/m2, If cold lamination, the prime cost is 7.5RMB/m2,the prime cost for inkjet printer machine is 3-5RMB/m2,hence buying a uv coating machine is a machine that earns money.
Showroom and workshop
Certification
contact person:Yi
QQ:810562596
Phone:(+86)750-3222029
