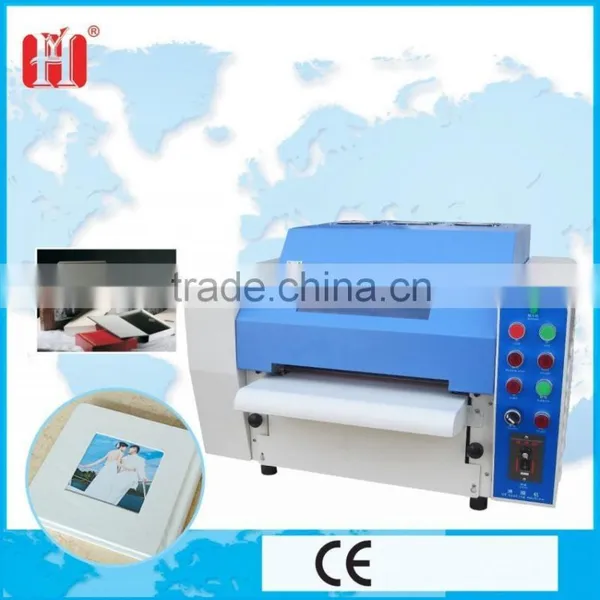

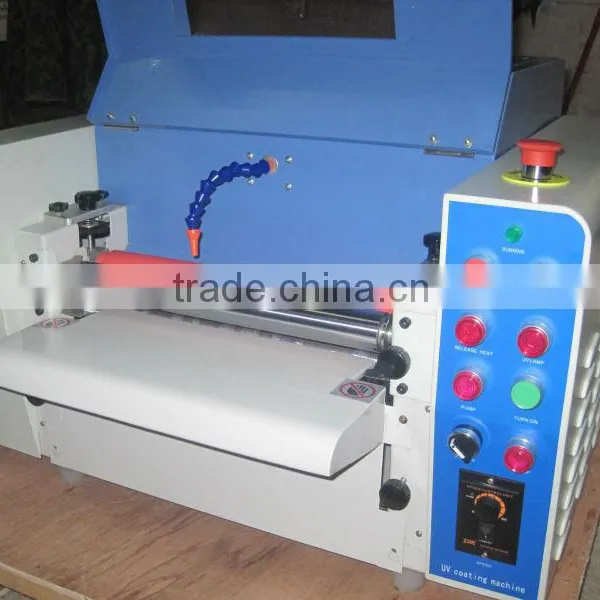

18inch Photo uv varnish Machine
- 200 Piece / Pieces per Month
- Guangzhou
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, photo laminating machine | |
| Automatic Grade | Semi-Automatic | Place of Origin | Guangdong, China | |
| Brand Name | HY | Model Number | LM-A | |
| Voltage | 220v/50hz | Power(W) | 2.5kw | |
| Dimension(L*W*H) | 880*935*500mm | Weight | 125kg | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Overseas service center available |
Product Description
18inch Photo uv varnish machine
Specifications
Maximum Laminating Width: | 18” (480mm) |
Maximum Laminating Thickness: | 5mm (180g) |
Laminating speed | 12m/minute |
Dry system | Uv or ( UV and IR) |
Uv lamp life | Usually 500-800 hours |
Voltage | AC220v/50hz/single phase |
Power | 2.5kw |
Machine size | 33*36*18”(860*935*475mm) |
Package size: | 35*26*28”(897*678*714mm) |
Net Weight: | 90.5kg |
Shipping Weight: | 115kg |
Main Feature
· UV dry system or both uv and ir dry systems in one machine,best quality for laser printing sheet.
· Adjustable laminating speed
· Adjustable roller position suitable for various material thickness
· Uv varnish is recycling
· Low cost than the film lamination
· Small occupation
· Light weight and easy to use
· Easy to clean the machine with alcohol
Cost analysis : the thickness of the uv liquid can be adjusted , normally it’s 3-5g/m2 and it can be diluted by alcohol.One kilogram of uv liquid can coat an area of 300 m2 pictures,which means that the actual cost is 0.3 RMB /m2 to 0.5 RMB/m2, If cold lamination, the prime cost is 7.5RMB/m2,the prime cost for inkjet printer machine is 3-5RMB/m2,hence buying a uv coating machine is a machine that earns money.
