Telescopic Forklift TL1500 Diesel Powered Telescopic Handler With Hydraulic Adjusting Palletfork

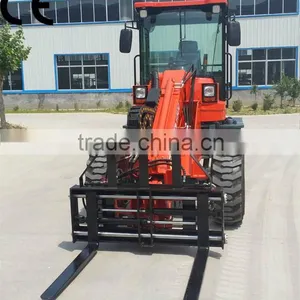

Telescopic Forklift TL1500 Diesel Powered Telescopic Handler With Hydraulic Adjusting Palletfork thumbnail-1
Telescopic Forklift TL1500 Diesel Powered Telescopic Handler With Hydraulic Adjusting Palletfork photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
TAIAN
Contact Supplier Request Quote Chat Now
Taian Dongyue Carrying Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name TAIAN
Model Number TL1500
Type Powered Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 1500kg
Max. Lifting Height 965mm
Min. Lifting Height 540mm
Fork Length 1196mm
Fork Width 974mm
Overall Dimensions 4390x1870x2720mm
Certification CE
After-sales Service Provided Overseas third-party support available

Telescopic forklift TL1500 diesel powered telescopic handler with hydraulic adjusting palletfork



1.0 Engine Details

(1) Model: Chinese E-mark approved xinchai498BPT

(2) Engine type:In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power:37KW (50.32H.P.)

(4) Rated Speed:2200 r/p.min (rpm)

(5) Fuel Consumption ratio in standard working condition: 230g/kw.h



2.0 Transmission System

Hydraulic converter + drive shaft + axles



3.0 Bucket

(1) BucketCapacity: 0.65 m3

(2) Bucket width: 1700mm

(3) Bucket type:Heavy-duty bolt on teeth

(5) Rated Load: 1500kg including attachment



4.0 Overall Dimensions

(1) Overall Length: 4320mm

(2) Overall Height:2670mm

(3) Overall Width: 1720mm

(4) Max. lifting Height:4250mm



5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Min Turning Radius: 4950mm

(3) Driving System: Hydraulic converter, four wheel drive

(4) Quick coupling system

(5) Joystick

(6) Self levering



6.0 Brake System

(1) Service Brake:Four Wheel Chuck brake

(2) Parking Brake:Hand operated



7.0 Tyre

(1) Model:12-16.5, 12ply (2)Width: 307mm(3) Diameter: 831mm



8.0 Wheelbase: 2400mm


9.0 Track: 1345mm



10. system pressure:20Mpa; Hydraulic output:70L/min





You are warmly welcomed to visit our factory.

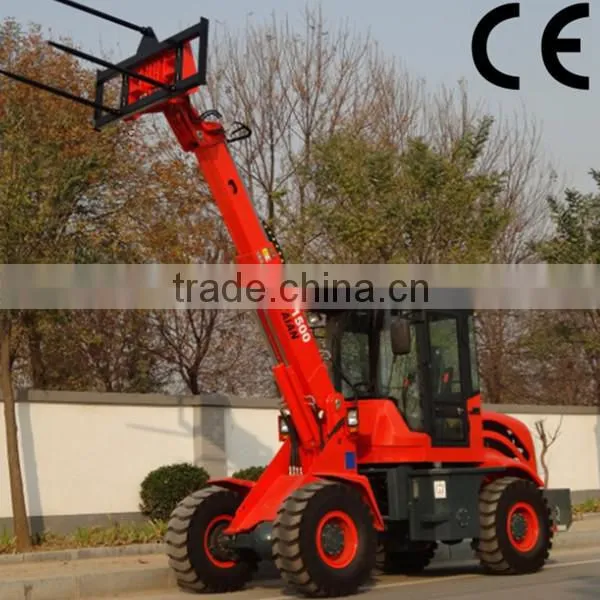

Telescopic forklift TL1500 diesel powered telescopic handler

Telescopic forklift TL1500 diesel powered telescopic handler with hydraulic adjusting palletfork

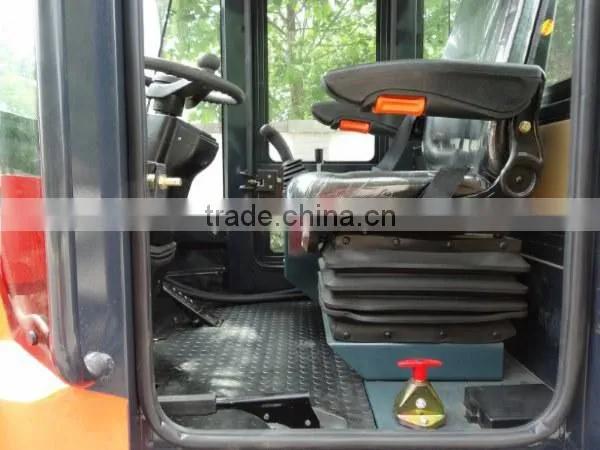

Telescopic forklift TL1500 diesel powered telescopic handler----inside cabin



Telescopic forklift TL1500 diesel powered telescopic handler with hydraulic adjusting palletfork

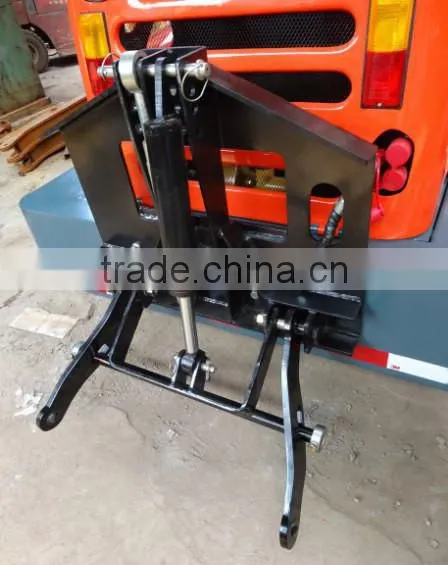

Telescopic forklift TL1500 diesel powered telescopic handler-----rear hydraulic output and 3 point hitch

Telescopic forklift TL1500 diesel powered telescopic handler with hydraulic adjusting palletfork
