lidong brand mucking rock loader
- 30 Set / Sets per Month
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | lidong | |
| Model Number | LBZ40 | Condition | New | |
| After-sales Service Provided | Overseas service center available |
Product Description

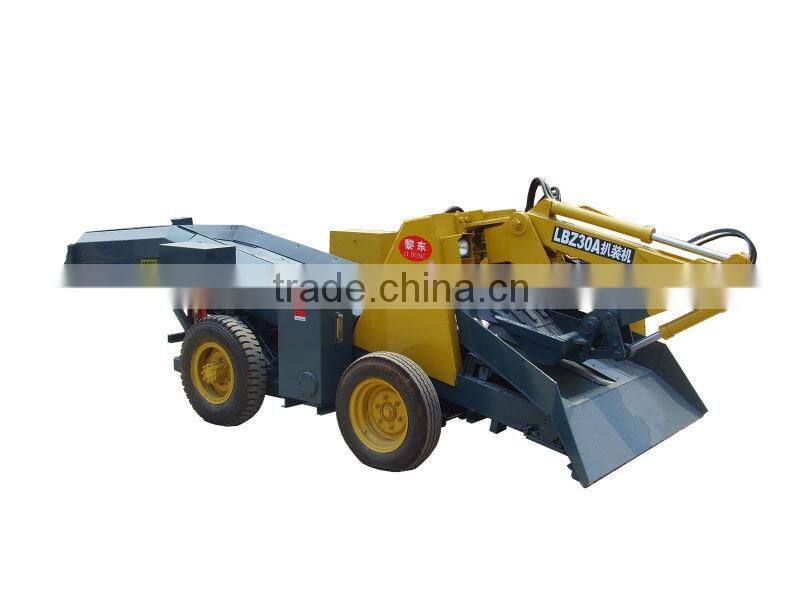

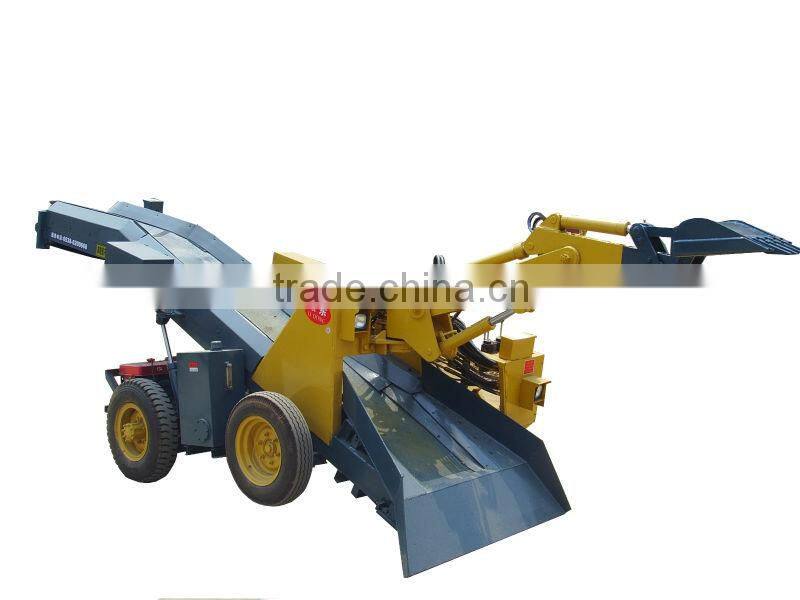

LBZ 40 mucking rock loader
1. “lidong” brand mucker rock loader is one type of multi-functional mining machine which can collect, transmission and load.
2. It adopts electric transmission, rear wheel drive, hydraulic assisted brake.
3. Its working set has two parts, collecting and transporting.
4. It has two kinds of power source, the electric and the diesel engine, the generator(motor) is used to offer power when working in a definite worksite, while the diesel engine is used to offer power for it to travel from one worksite to another.
5. It’s convenient to operate and very reliable. It is a perfect machine in loading and unloading materials, was widely used in the narrow tunnels of mining and watering projects.
Model | LBZ40FP | LBZ40 | LBZ60 |
Working efficient | ≥40cbm/h | ≥40cbm/h | ≥60cbm/h |
Suitable tunnel | 2200 x2200mm (Wx H) | 2200 x2000mm (Wx H) | 2200 x2400mm (Wx H) |
Working height | ≤2200mm | ≤2200mm | ≤2200mm |
Main motor power | 11kw | 11kw | 22kw |
Assistant motor power | 2.2kw | 2.2kw | 2.2kw |
Dimension (LxWxH) | 5890×1830×2060mm | 5890×1680×2060mm | 6310×1830×2060mm |
Weight | 3300±80kg | 3200±80kg | 3600±80kg |
Min. Turning radius | ≤5600mm | ≤5600mm | ≤6000mm |
Discharge height | ≥1200mm | ≥1200mm | ≥1200mm |
Collecting height | ≥2000mm | ≥2000mm | ≥2000mm |
Collecting width | ≥2000mm | ≥2000mm | ≥2000mm |
Collecting depth | ≥300mm | ≥300mm | ≥300mm |
Loading width | ≥2000mm | ≥2000mm | ≥2000mm |
Tracking speed | 0.5m/s | 0.5m/s | 0.5m/s |
Transport capacity | ≥50 cbm/h | ≥60 cbm/h | ≥50 cbm/h |
Rated working pressure | 14±0.5 MPa | 14±0.5 MPa | 14±0.5 MPa |
Grade ability | ≥8° | ≥8° | ≥8° |
Ground Clearance | ≥200mm | ≥200mm | ≥200mm |
Conveyor belt speed | 0.8m/s | 0.8m/s | 0.8m/s |
Boom turning angle | 70° | 70° | 70° |
Steering angle | 25° | 25° | 25° |
Diesel engine | Without | Without | KM138 --- 20.2KW |
Explosion-proof | Yes | No | No |
Unit price FOB Qingdao | USD16200.00 | USD11310.00 | USD12200.00 |
