2015 hot sale!!! 10 centimeter capacity small wood chipper manufactures TS400 wood chipping machine with sharp blade disk :
| WOOD CHIPPER |
| Are you series about chipping? The new model wood chipper has landed and is already becomming the most demanded chipper in Europe and also Australia. This revolutionary machine means you no longer need to prepare a side chute chipper for branches, you simply feed the entire branch directly in the TC4 chute. |
SPECIFICATIONS:
Engine | |
Model | B&S |
Capacity/Infeed | |
Capacity | 100mm(4inch) |
Infeed chute | 550mm*340mm*440m |
Infeed opening | 210mm*180mm |
Infeed height | 1500mm |
Discharge height | 2200mm |
Discharge chute | Full 360 degree rotation -easy swing/pin locking |
Chipper Disc Housing | |
Disc size | 600mm*25mm |
Disc Weight | 86kg |
Disc Speed | 1430rpm |
Bearing | Twin spherical roller bearing |
Shaft | 50mm High tensile steel |
Knives | Two knives made of hardened chipper steel,60mm*220mm*10mm double edged,Knives are located in fully machined pockets and are reversible and resharpenable |
Anvil | Made from hard wearing Duraflex with four usable sides.Easy external adjustment |
Chipper housing | 5mm plate front and back,4mm plate top hood and belly |
Fan Paddles | Four fan paddles are bolted on to disc |
Chassis | 50mm*50mm*4mm R HS chassis/75mm*75mm*6mm draw bar |
Dimensions | 2900mm*1800mm*2200mm |
Weight | 460kg |
Suspension | Leaf spring |
Springs | 750kg capacity |

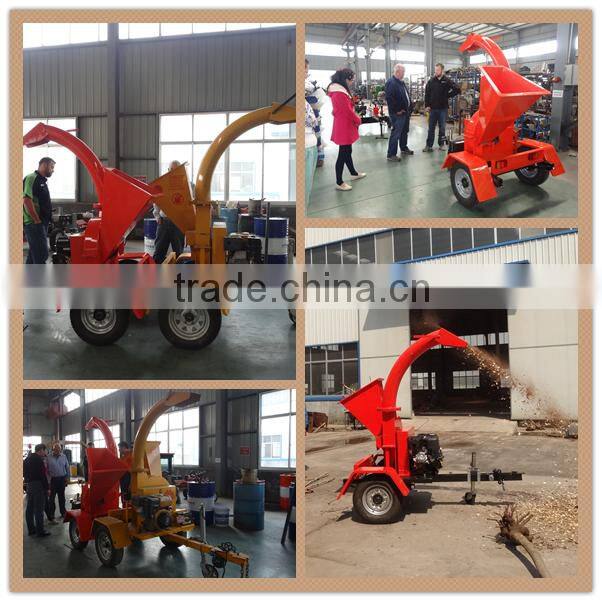

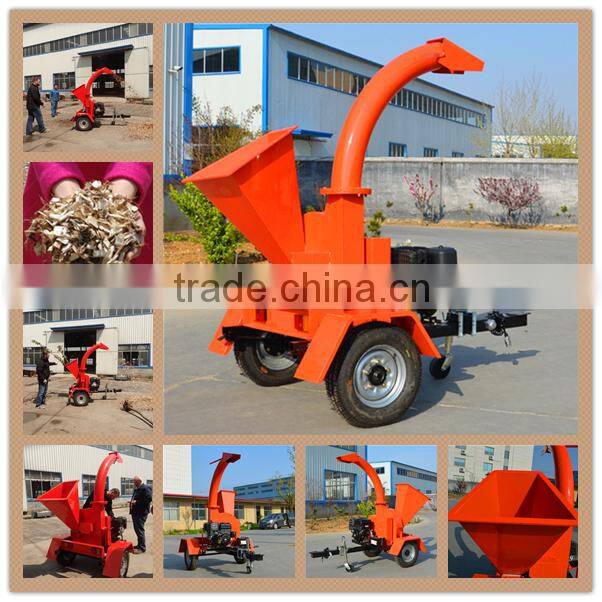

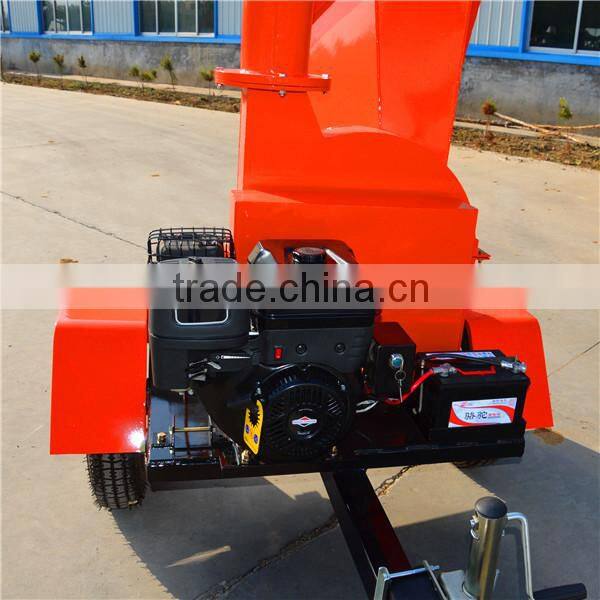

detailed pictures:
| HOW TO ORDER |
| [Step 1] Send a good inquiry by email or Trademanager. |
| [Step 2] We offer you quotes. |
| [Step 3] Confirm delivery time/engine brand/freight operation. |
| [Step 4] Arrange production after 30% deposit received by T/T or 100% payment received by Paypal/Escrow. |
| [Step 5] Confirm consignee and notiry party information. |
| [Step 6] Balance payment received and book ship arrange shipping. |
| [Step 7] Commercial invoice, packing list and copy bill of lading sent to you. |
| [Step 8] Wood chipper received. |
| TAIAN SERVICE |
| A. TAIAN TENGYU HEAVY INDUSTRIAL offer third party inspection service, such as BV. SGS. COI etc. |
| B. OEM ODM acceped, customized available. |
| C. Sample acceptable, free parts supplied freely. |
| D. 1 years long warranty period, free parts delivered by air within one week under your request. |
| E. FOB, CIF, CNF, DDU & DDP accepted, we can help shipping. |
| F. Our delivery time not over 20 days. |
If you have interested our products, please feel free to contact with us. We will be at your servie.
