13HP B&S gasoline engine small wood chipping forestry machine with sharp blade disk

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Wood Chipper
Use	wood chipper	Power Type	Gasoline
Place of Origin	Shandong, China	Brand Name	TAIAN
Model Number	TC4	Dimension(LWH)	2.9x2.2x1.8m
Weight	460kg	Warranty	1 yesr or 1000 working hours
After-sales Service Provided	Overseas third-party support available

Product Description

13HP B&S gasoline engine small wood chipping forestry machine with sharp blade disk :

WOOD CHIPPER

Are you series about chipping? The new model wood chipper has landed and is already becomming the most demanded chipper in Europe and also Australia. This revolutionary machine means you no longer need to prepare a side chute chipper for branches, you simply feed the entire branch directly in the TC4 chute.

SPECIFICATIONS:

Engine
Model	B&S
Capacity/Infeed
Capacity	100mm(4inch)
Infeed chute	*550mm340mm440m*
Infeed opening	*210mm180mm**
Infeed height	1500mm
Discharge height	2200mm
Discharge chute	Full 360 degree rotation -easy swing/pin locking
Chipper Disc Housing
Disc size	*600mm25mm**
Disc Weight	86kg
Disc Speed	1430rpm
Bearing	Twin spherical roller bearing
Shaft	50mm High tensile steel
Knives	*Two knives made of hardened chipper steel,60mm220mm10mm double edged,Knives are located in fully machined pockets and are reversible and resharpenable*
Anvil	Made from hard wearing Duraflex with four usable sides.Easy external adjustment
Chipper housing	5mm plate front and back,4mm plate top hood and belly
Fan Paddles	Four fan paddles are bolted on to disc
Chassis	*50mm50mm4mm R HS chassis/75mm75mm6mm draw bar*
Dimensions	*2900mm1800mm2200mm*
Weight	460kg
Suspension	Leaf spring
Springs	750kg capacity

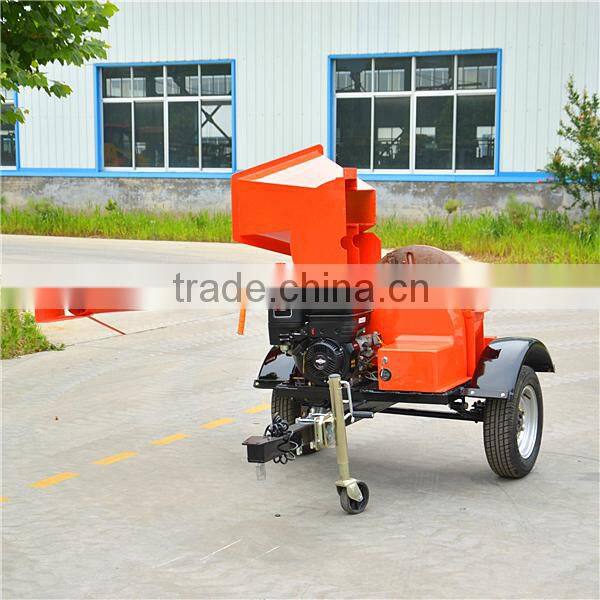

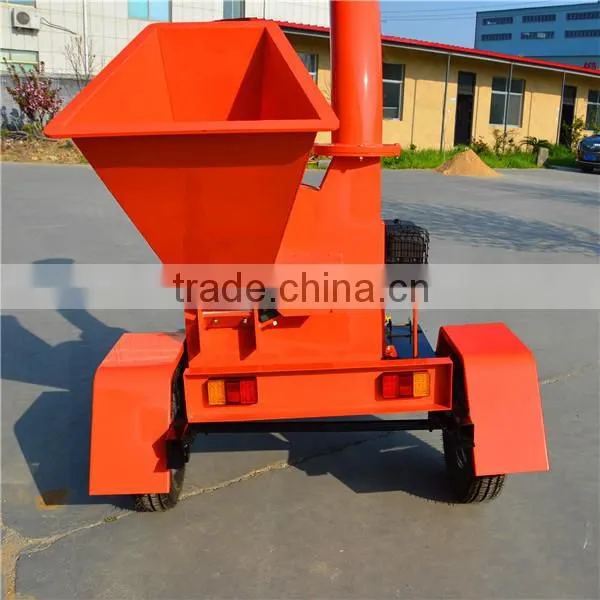

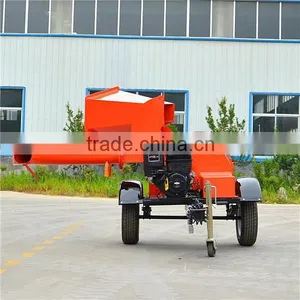

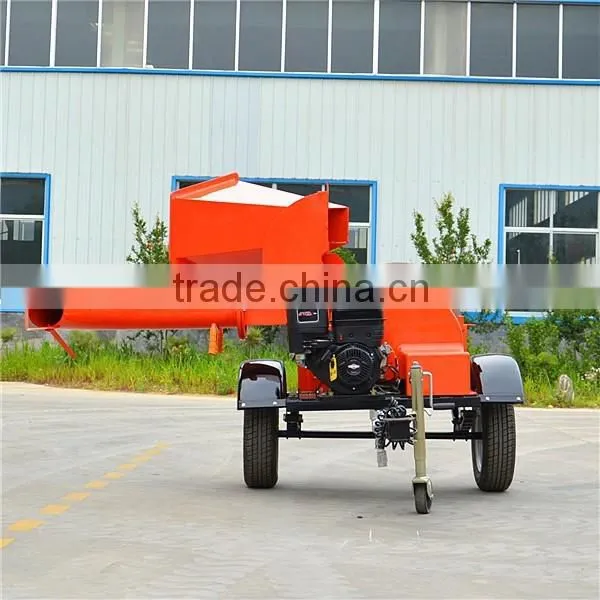

detailed pictures:

high effiency

HOW TO ORDER

[Step 1] Send a good inquiry by email or Trademanager.

[Step 2] We offer you quotes.

[Step 3] Confirm delivery time/engine brand/freight operation.

[Step 4] Arrange production after 30% deposit received by T/T or 100% payment received by Paypal/Escrow.

[Step 5] Confirm consignee and notiry party information.

[Step 6] Balance payment received and book ship arrange shipping.

[Step 7] Commercial invoice, packing list and copy bill of lading sent to you.

[Step 8] Wood chipper received.

TAIAN SERVICE

A. TAIAN TENGYU HEAVY INDUSTRIAL offer third party inspection service, such as BV. SGS. COI etc.

B. OEM ODM acceped, customized available.

C. Sample acceptable, free parts supplied freely.

D. 1 years long warranty period, free parts delivered by air within one week under your request.

E. FOB, CIF, CNF, DDU & DDP accepted, we can help shipping.

F. Our delivery time not over 20 days.

If you have interested our products, please feel free to contact with us. We will be at your servie.
