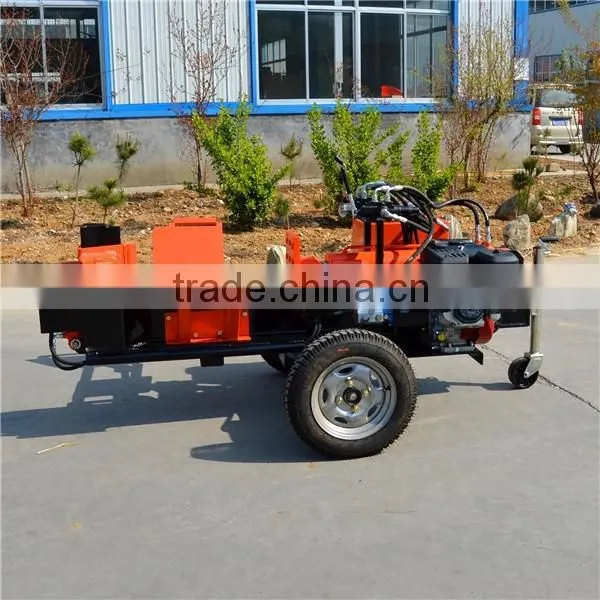

high efficiency wood log splitter log wood cutting machine :
For buying log splitters, customers cared about: What type of valves are being used? What size is the rod and piston? How big is the hydraulic fluid tank? How efficient is the splitting wedge itself? Can the frame support extreme loads caused by knotted or twisted logs? What kind of engine provides the power? These factors are the real contributors to overall power, and combined with the real ton ratings from a reliable manufacturer, so we can give you a good idea of what to expect.
A log splitter is a piece of machinery or equipment used for splitting firewood from softwood or hardwood logs that have been pre-cut into sections (rounds), usually by chainsaw or on a saw bench. Many log splitters consist of a hydraulic or electrical rod and piston assembly and these are often rated by the tons of force they can generate. The higher the pressure rating, the greater the thickness or length of the rounds that can be split. The log splitter consists of all four major hydraulic components.
A new log splitter is generally thought of in the late fall to get wood ready to burn in our fireplaces. But log splitter comes in very handy any time of the year. Heavy storms tumble trees in the winter and spring. With a log splitter that fallen tree can be cut down to size for easy handling.
1. World famous Briggs & Stratton gasoline engine, powerful and long lasting.
2. Convenient and labor saving hydraulic jack for easy transporting by trailer
3. 100mm powerful hydraulic cylinder offer 140KN pushing power.
4. Wearable alloying sharp knife can better suits hard wood
5. Combined knives makes the splitting more easy and suitable to various size of wood.
6. Automatic feeding fencer enable you to split several woods together or to split the big woods into several pieces.
7. Auto-return valve makes the operation easy and safe.
8. Solid strong universal steering wheel can bear frequently moving and guarantee the long lasting of the machine
9. Small size and light weighted, smart and easy to be transported.

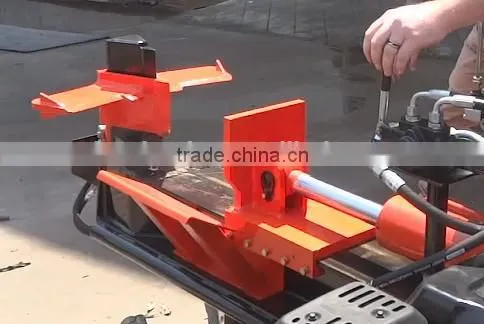

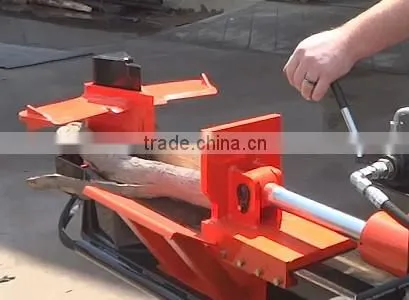

Auto-return valves:

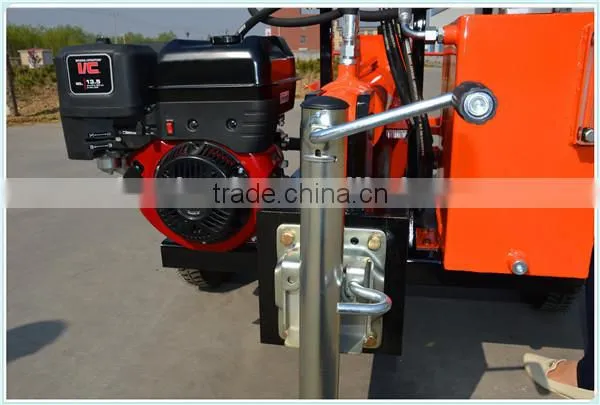

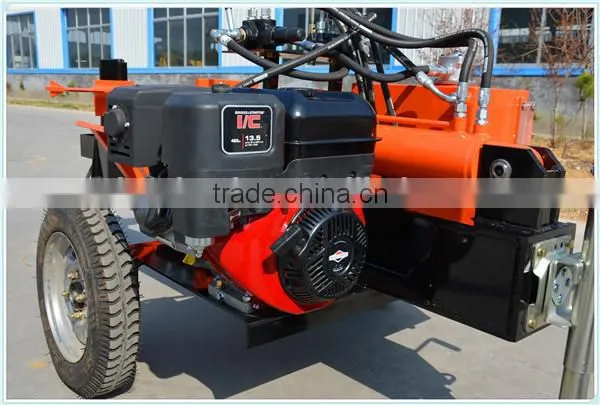

B&S gasoline engine:

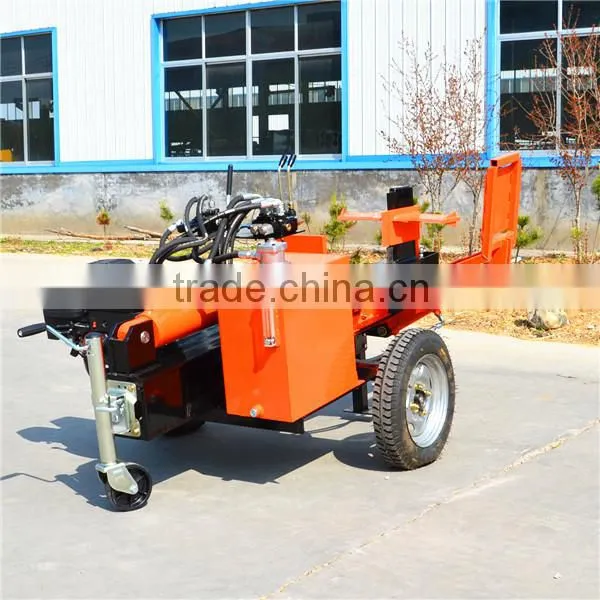

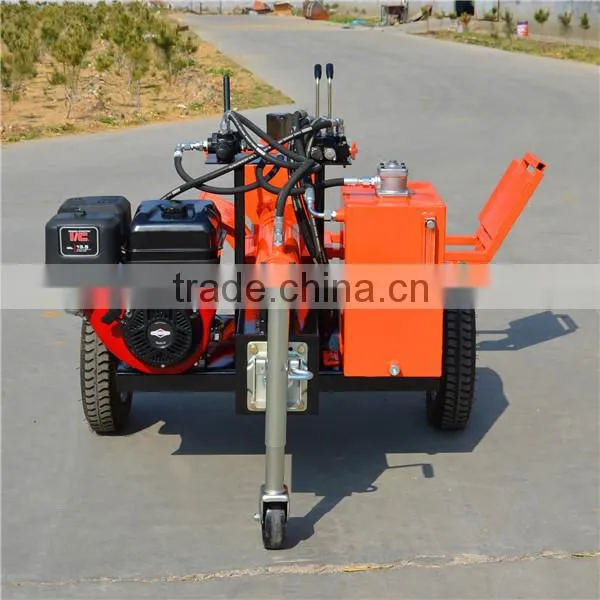

Lifting Jack:

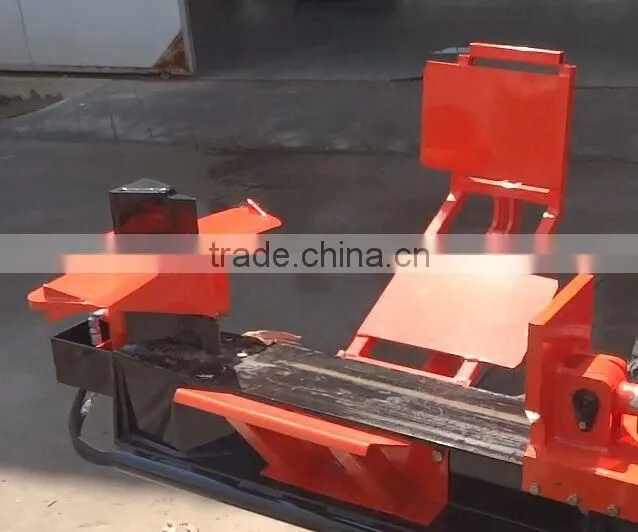

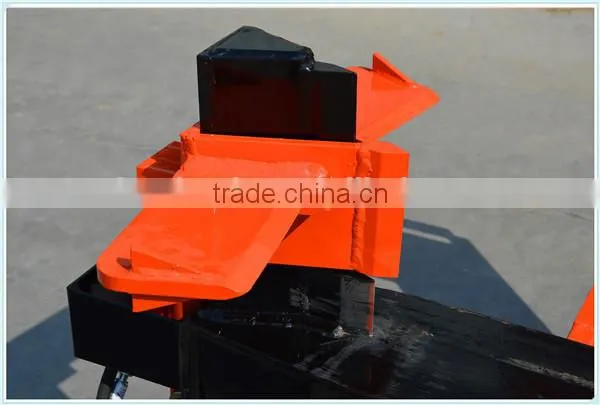

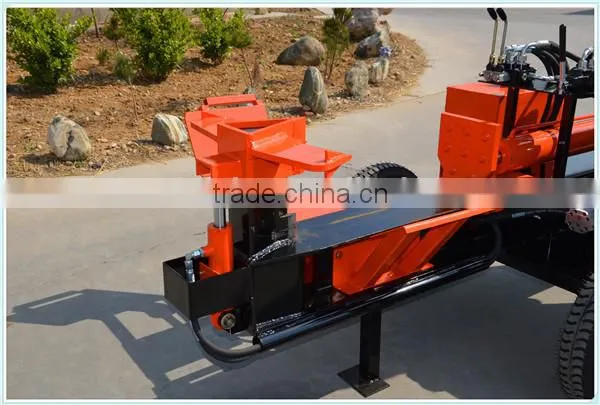

Round-way edge cutting:

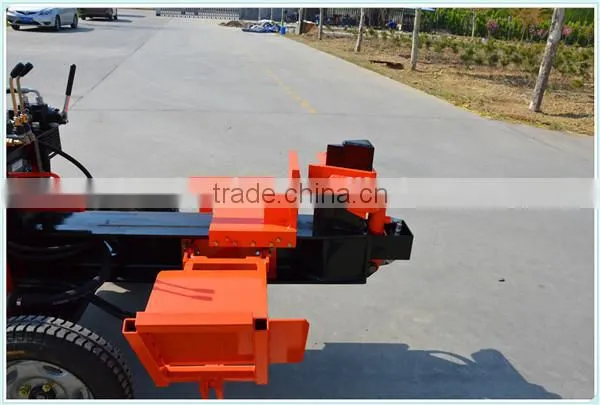

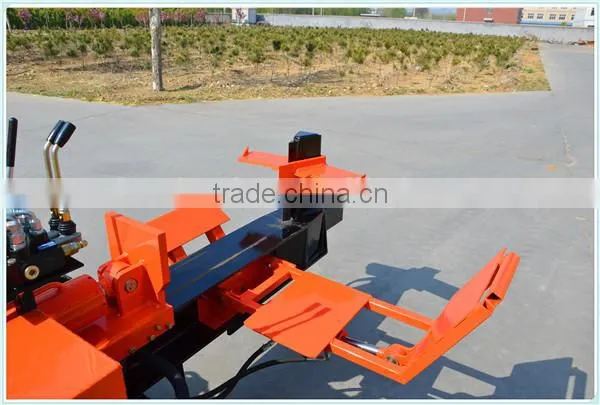

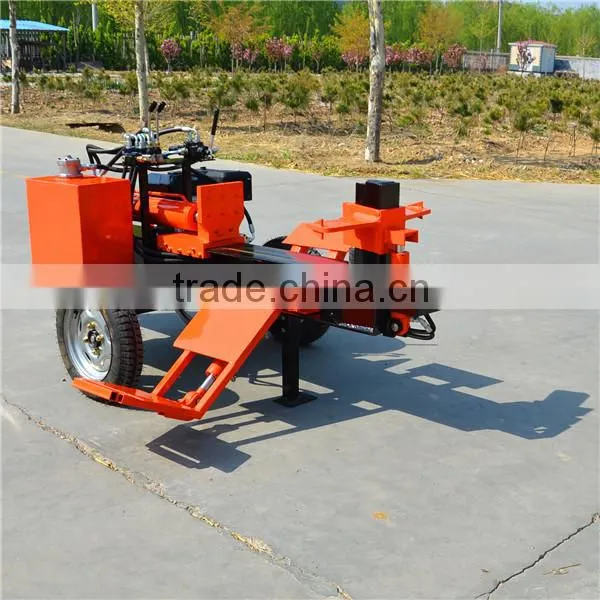

Adjustable ramp:
Model |
TS400 |
Dimension (L x W x H) |
2250*1200*1000mm |
Splitting Tons |
28 |
Weight |
450kg |
Cylinder bore |
100mm |
Cylinder rod diameter |
45mm |
Cylinder stroke |
650mm |
System pressure |
18Mpa |
Hydraulic flow |
40L/min |
Max. Diameter of wood |
400mm |
Engine |
Briggs & Stratton 25T2, gasoline, air cooled, 13.5hp, 3600rpm |
Our company can design, manufature and sell all types of log splitter.If you are a dealer or distributor on log splitter business, please feel free to contact with us. We will be at your service.
