Taian Dongyue Carrying Machinery Co., Ltd.: Shandong, China; Main products: Multifunctional Wheel Loader

Home > Products > Wheel Loader > front loader with quick hitch

front loader with quick hitch

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Port Qingdao China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	TAIAN
Model Number	TY18	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	4650mmx 1870mmx 2720mm	Rated Load	1800kgs
Certification	CE	Warranty	one year or 1000 working hours whichever comes first
After-sales Service Provided	Overseas third-party support available

Product Description

front loader with quick hitch:

Advantage

1.We have been making such kind of loader for 14 years, every single part of the loader has been tested by market, thus it is a reliable mature product.

2.Standard quick hitch system enable it can use many different kind of attachments.

3.Special treatment of vibration and noise makes it stand out from other loaders.

4.Optional rear hydraulic output makes it a combination of loader and tractor.

5.With the support of an experienced engineering team, we can realize customers’ special requirements

Technical data

Model		TY18
Engine Details	Engine model	Yunnei 4102
	Engine power	60kw
	Rated Speed	2400/r/min
	Engine cooling way	Water cooling
	Fuel Consumption ratio	230g/kw.h (standard working condition)
	Engine type	In-line arrangement,4 cycle diesel Engine
Bucket	Bucket Capacity	0.8 m3
	Bucket width	1700mm
	Bucket type	Heavy-duty bolt on teeth
Overall Dimensions	Overall Length	4650mm
	Overall Height	2720mm
	Overall Width	1870mm
Brake System	Service Brake	Four Wheel disk brake
	Parking Brake	Hand operated
Max. lifting Height		3450mm
Rated Load		1800kg including attachment
Transmission System		Hydraulic converter + drive shaft + axles
Tyre Model		17.5-16
Wheelbase		2400mm
Track		1345mm
Min Turning Radius:		4950mm
Weight		3800kgs
System Pressure		19Mpa
Hydraulic output		96L/min
Max. Height to the Pin		4200 mm
Braking Type		Air braking
Axle		With hub reducer
Hydraulic Oil Model		L-HL46
Battery		105Ah * 2, 24V

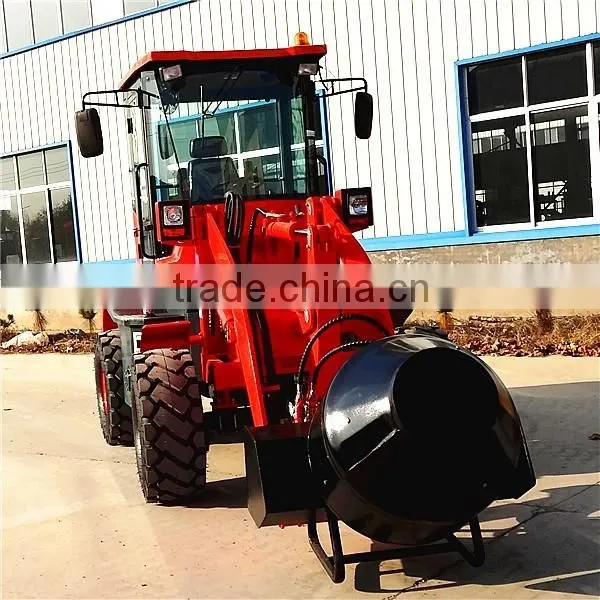

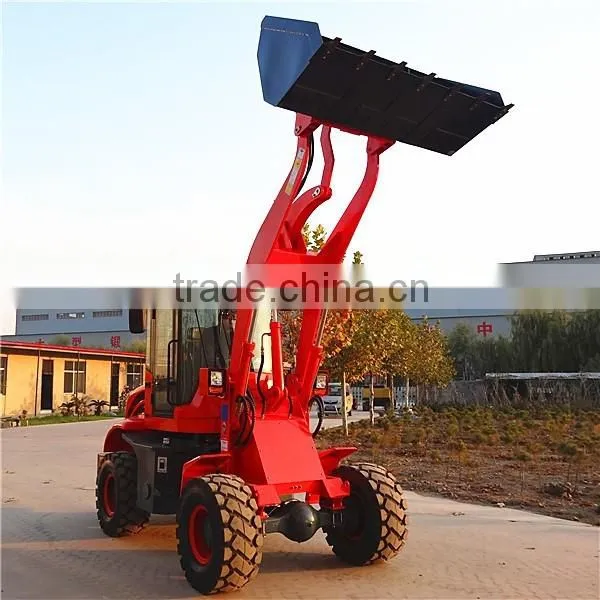

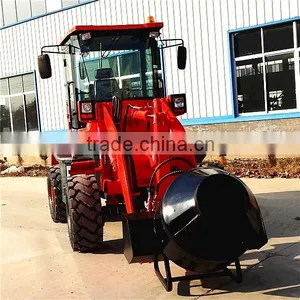

Detailed Images

If you are interested in this machine and need a quotation, Please contact with: Steven.

INTERNATIONAL DEPT. OF:

Company name:Taian Tengyu Heavy Industrial Co., Ltd

(also called Taian Dongyue Carrying Machinery Co., Ltd)

ADD:North Nanliu Street, Shigao Industrial Zone, Taian City, Shandong China
