Taian Dongyue Carrying Machinery Co., Ltd.: Shandong, China; Main products: Multifunctional Wheel Loader

Home > Products > Wheel Loader > Factory Direct Sales Front End Wheel Loader for 80hp Farm Tractor

Factory Direct Sales Front End Wheel Loader for 80hp Farm Tractor

FOB Price

Negotiable / Unit

2 Units(Min. Order)

Port Qingdao China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	TAIAN
Model Number	TY18	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	4650mmx1870mmx2720mm	Rated Load	1800kgs
Certification	CE	Warranty	one year or 1000 working hours whichever comes first
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Factory direct sales front end wheel loader for 80hp farm tractor:

Product Description

front end wheel loader

1. The boom can reach 3.5m greatly increase its working scope.

2. The articulated structure and axle transmission design makes it powerful and has better pass through ability

3. Adjustable spring seat and optional air conditioner makes the operating more comfortable.

4. Quick coupling system, joystick and buttons makes the operating easy and convenient.

5.Steering System: Articulated Frame with hydraulic power steering

6.Driving System: Hydraulic converter, four wheel drive

7.Self levering

Technical data

Model		TY18
Engine Details	Engine model	Yunnei 4102
	Engine power	60kw
	Rated Speed	2400/r/min
	Engine cooling way	Water cooling
	Fuel Consumption ratio	230g/kw.h (standard working condition)
	Engine type	In-line arrangement,4 cycle diesel Engine
Bucket	Bucket Capacity	0.8 m3
	Bucket width	1700mm
	Bucket type	Heavy-duty bolt on teeth
Overall Dimensions	Overall Length	4650mm
	Overall Height	2720mm
	Overall Width	1870mm
Brake System	Service Brake	Four Wheel disk brake
	Parking Brake	Hand operated
Max. lifting Height		3450mm
Rated Load		1800kg including attachment
Transmission System		Hydraulic converter + drive shaft + axles
Tyre Model		17.5-16
Wheelbase		2400mm
Track		1345mm
Min Turning Radius:		4950mm
Weight		3800kgs
System Pressure		19Mpa
Hydraulic output		96L/min
Max. Height to the Pin		4200 mm
Braking Type		Air braking
Axle		With hub reducer
Hydraulic Oil Model		L-HL46
Battery		105Ah * 2, 24V

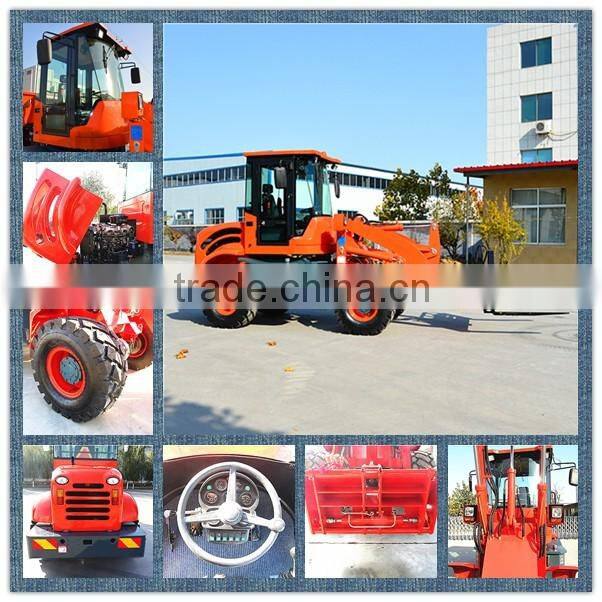

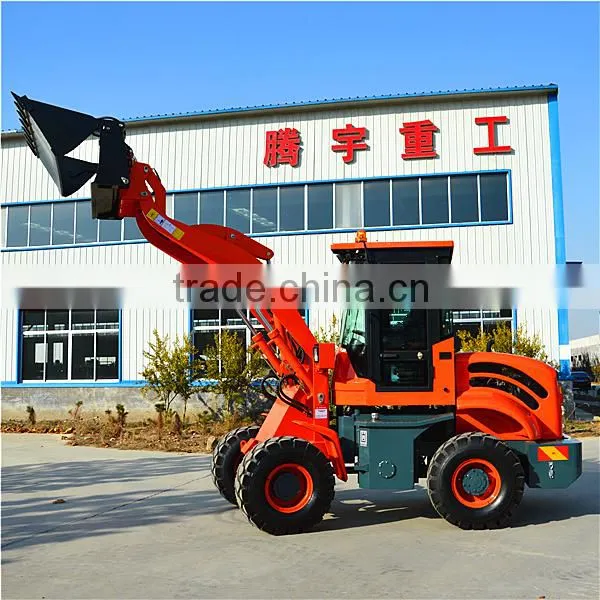

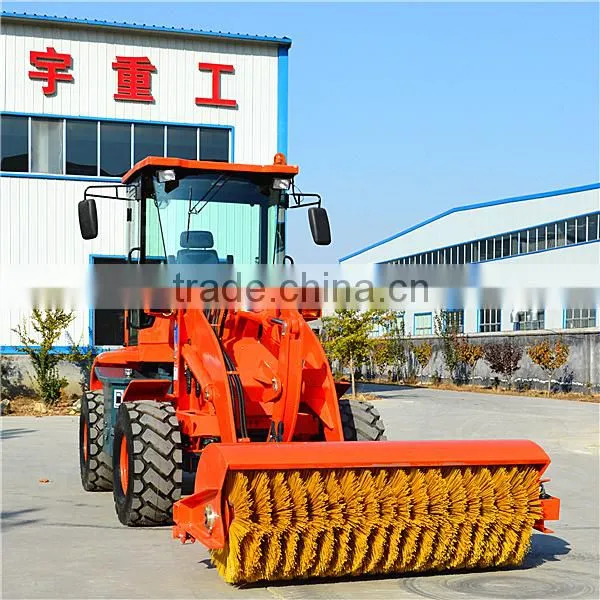

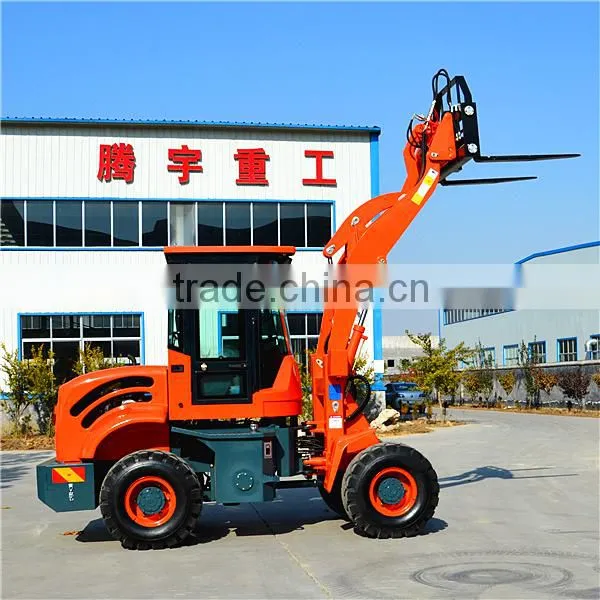

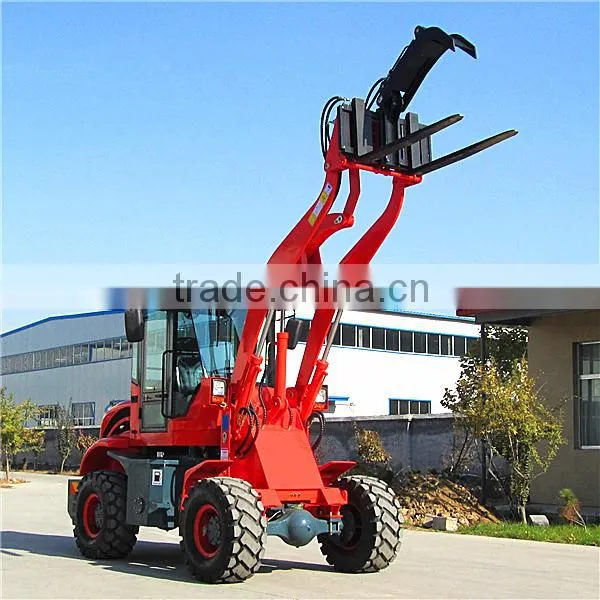

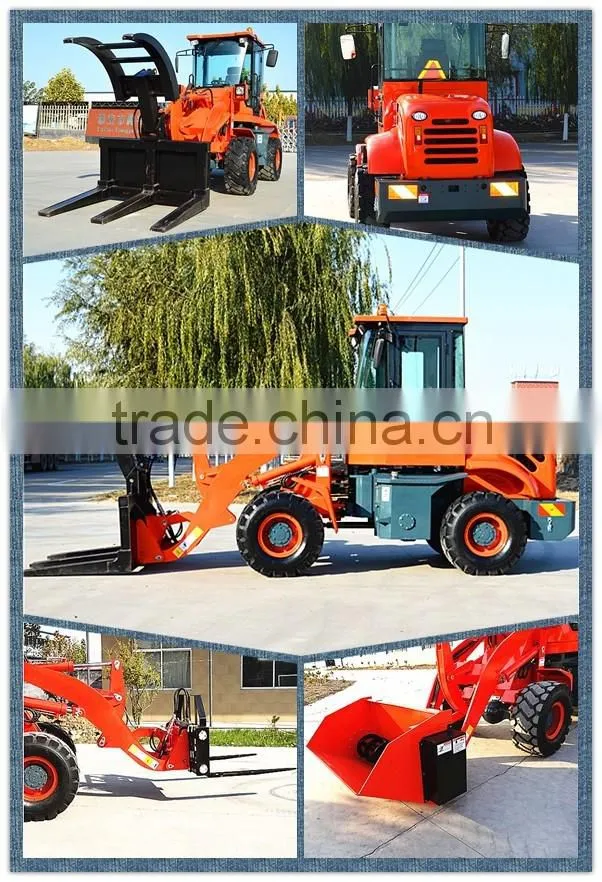

Detailed Images

Our Services

1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).

2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.

3.The repairation or replacement for the parts should not exceed the warranty period.

4.The warranty is valid on the condition of all the terms listed in the contract was observed.

If you are interested in this machine and need a quotation, Please contact with: Steven.
