Factory Directly Sale Mini Wheel Loader Made in China

Factory Directly Sale Mini Wheel Loader Made in China photo-1

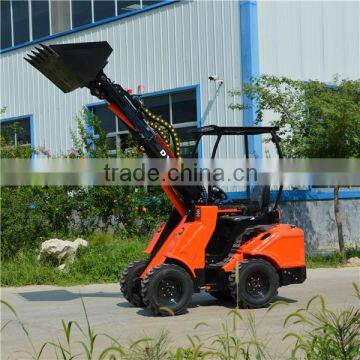

Factory Directly Sale Mini Wheel Loader Made in China photo-2

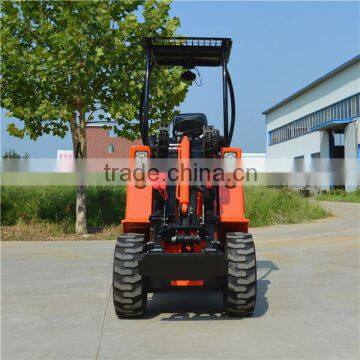

Factory Directly Sale Mini Wheel Loader Made in China photo-3

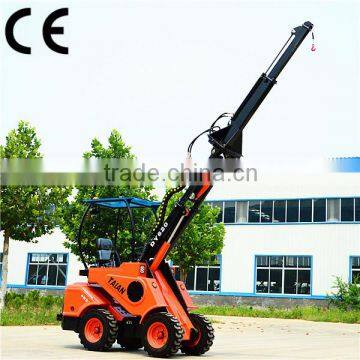

Factory Directly Sale Mini Wheel Loader Made in China photo-4

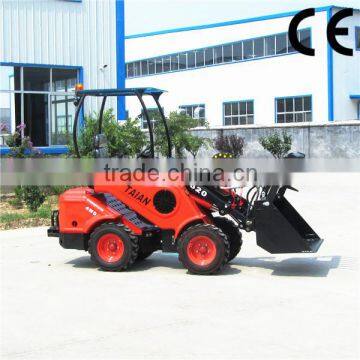

Factory Directly Sale Mini Wheel Loader Made in China photo-5

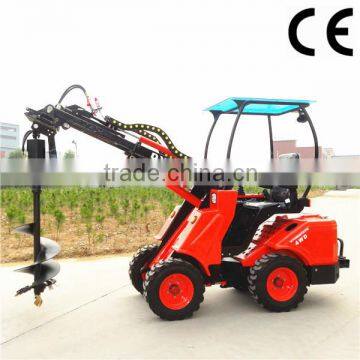

Factory Directly Sale Mini Wheel Loader Made in China photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TAIAN
Model Number:
DY620
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name TAIAN
Model Number DY620
Place of Origin Shandong, China
Type Mini Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 2195x980x2150MM
Rated Load 500KGS
Certification CE, EPA, FOPS ROPS
Warranty One Year
After-sales Service Provided No overseas service provided

Factory directly sale mini wheel loader made in china

Safety

mini wheel loader

1.ROPS Cabin or canopy can protect the driver in any case if there’s a tilt danger.

2.Top rotating warning light give an eye-catching signals to people around.

3.Warning signals for maintenance and operating protect the machine from over-use.

4.Reversing beeper and lights, traffic lights, rear and front working lights well protects people around and also the operator.

5.Cylinder protection can prevent any possible damage caused by the boom falling down.

Features

mini wheel loader

1.Different engines available, chinese or oversea brands.

2.Standard quick hitch system

3.Wide view cabin with interior, modern control board and suspension seat makes the operation comfortable and enjoyable

4.Low vibration and noise

5.Different type of transmission system available

6.Rear hydraulic output optional

Technical data

Model

DY620

Dimension (LxWxH)

2195 mm*980 mm*2150 mm

Max. reach(boom extended)

2750mm

Max. reach(boom retracted)

2480mm

Bucket capacity

300L

Rated loading capacity

500kg-800kg

Min. turning radius

1980mm

Turning angle

400

Speed

10 km/h

Weight

1100 kg

Standard tire

23X8.5-12

Tire pressure

2.8 bar

Oil tank capacity

35L

Pressure

190bar

Working oil flow

33L/min

Tracking oil flow

50L/min

Oil model(mineral oil)

L-HL46

Fuel tank capacity

18L

Battery capacity

55Ah

Voltage

12v

Engine brand

Chinese Changchai 3M78

Engine type

3 cylinders, water cooling

Rated power/speed

16kw / 2800r/min

OPTIONS OF ENGINE

Engine brand

Yanmar 3TNV382A

Engine type

3 cylinders, water cooling

Rated power/speed

22.2KW / 3000r/min

Pictures

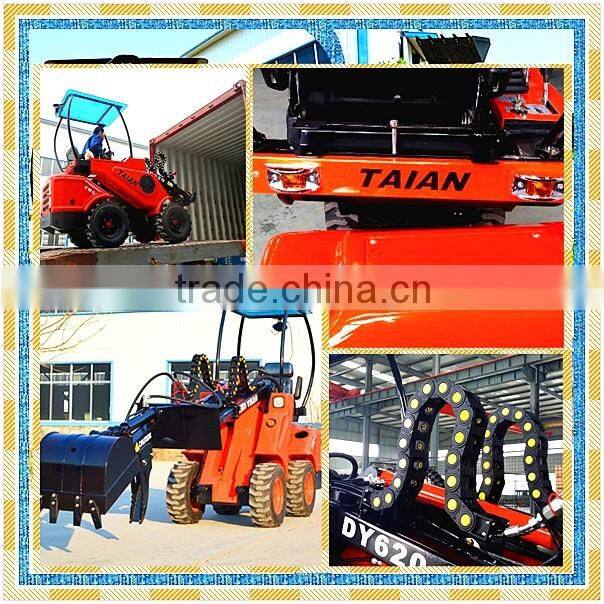

 Factory directly sale mini wheel loader made in chinaFactory directly sale mini wheel loader made in china

Our Services

1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).

2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.

3.The repairation or replacement for the parts should not exceed the warranty period.

4.The warranty is valid on the condition of all the terms listed in the contract was observed.

If you are interested in this machine and need a quotation, Please contact with: Steven.
