Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > LZ908F Diesel Mini Skid Steer Loader

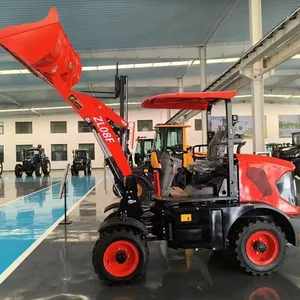

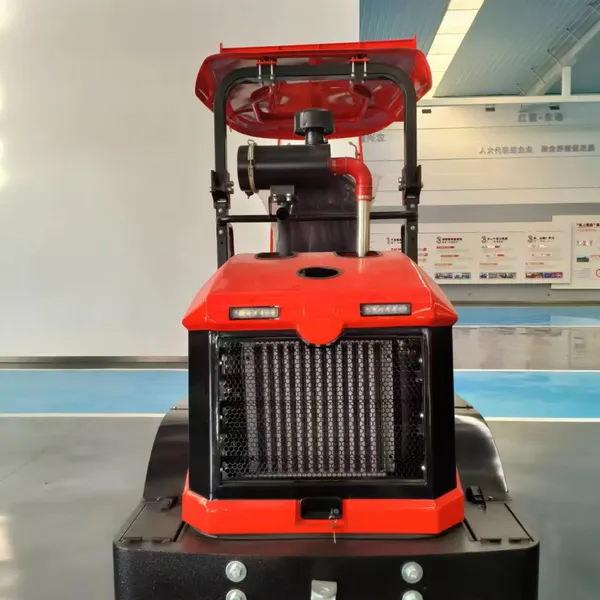

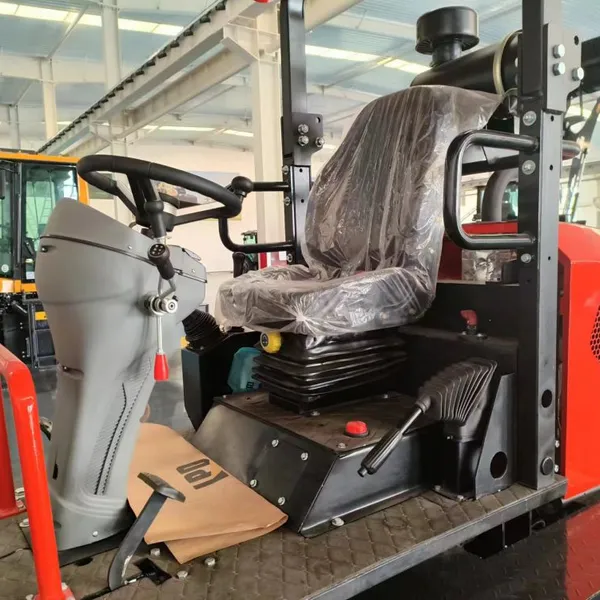

LZ908F Diesel Mini Skid Steer Loader
US$ 5500 - 8900
MOQ: 6 Units
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
LZ908F-K
Type:
Front Loader
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
China
Model Number
LZ908F-K
Type
Front Loader
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
One year
Condition
New
Dimension(Long * Breadth * High)
4650x1680x2530 mm
Moving Type
Wheel Loader
Rated Load
800KG
Technical parameters Informations:
| ( Model) | LZ908F-K | |||||
| (Rated Contained Mass) | 800 kg | |||||
| (Total Weight) | 2280mm | |||||
| （Axle Type） | Isuzu | |||||
| Transmission Type） | 265 Torque Converter | |||||
| High-low Speed Power Shift Transmission | ||||||
| （Operate Mode） | Mechanical Pilot | |||||
| （Brake Type） | Oil Brake | |||||
| (Bucket Capacity) | 0.35 m³ | |||||
| (Bucket Width) | 1600 mm | |||||
| Dimension) | 4650x1680x2530 | |||||
| (Wheelbase) | 1085 mm | |||||
| (Axle Spacing) | 1840 mm | |||||
| (Unloading Height) | 2350 mm | |||||
| (Min. Turning Radius) | 4080 | |||||
| (Mini. Ground Clearance) | 240 mm | |||||
| (Unloading Distance) | 840 mm | |||||
| (Tires Size) | 10-16.5-14PR | |||||
| (Driving Speed) | Ⅰ (F/R) | 7.1 km/h | ||||
| Ⅱ (F/R) | 18 km/h | |||||
| (Engine) | (Model) | Xichai 4DW91-45 | ||||
| (Rated Power) | 37 kW | |||||
| (Rated Speed) | 2400 rpm | |||||
| (Emission Standards) | Emission Ⅱ,Optional EURO EmissionⅤ | |||||
| (Displacement) | 2.67 L | |||||
