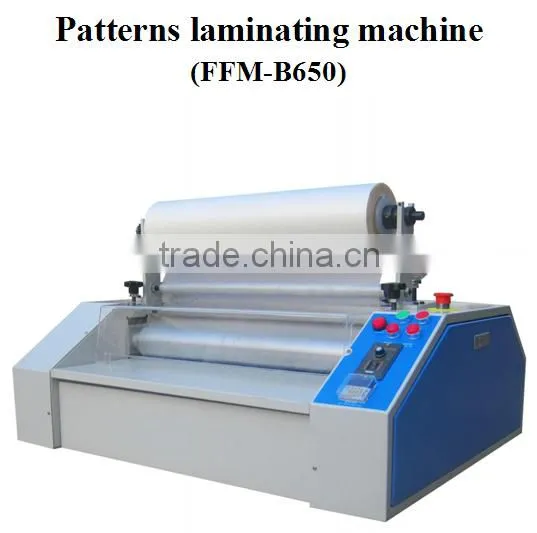

24 Inch 650mm Embossing And Plain Bopp Laminating Machine

24 Inch 650mm Embossing And Plain Bopp Laminating Machine photo-1
24 Inch 650mm Embossing And Plain Bopp Laminating Machine photo-2
24 Inch 650mm Embossing And Plain Bopp Laminating Machine photo-3
24 Inch 650mm Embossing And Plain Bopp Laminating Machine photo-4
24 Inch 650mm Embossing And Plain Bopp Laminating Machine photo-5
24 Inch 650mm Embossing And Plain Bopp Laminating Machine photo-6
US$ 1,000 - 1,333 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Laminating Machine
Computerized:
No
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Laminating Machine
Computerized No
Place of Origin Guangdong, China
Brand Name HY
Model Number FFM-B
Voltage 220v
Power(W) 2.5kw
Dimension(L*W*H) 910*604*520mm
Weight 86.5kg
Certification CE
Warranty 1 year
After-sales Service Provided Overseas service center available







                                              24 Inch 650mm Embossing And Plain Bopp Laminating Machine









24 Inch 650mm Embossing And Plain Bopp Laminating Machine

This machine can apply photo ,picture, painting and paper etc.with bopp film which has good preservative waterproof and excellent performance . Through the process of laminating,the graphics will be fresh, colorfast, non-yellowing. This method is now widely applied in wedding photography, spraying and painting as well as document, calligraphy , invitations and more.





Specifications







Maximum Laminating Width:

25” (650mm)

Maximum Laminating Thickness:

0.7“(20mm)

Laminating speed

15m/minute

Temperature range

100-130°C

Embossing roller in the machine

1 pc.

Embossing Roller

Can be changed

Working roller quantities

6pcs.

Available size

25”(650mm),31”(800mm)

Voltage

AC220v/50hz/single phase

Power

2.5kw

Machine size

35*23*20”(910*604*520mm)

Package size:

38*36*24”(990*930*625mm)

Net Weight:

86.5kg

Gross Weight:

130.5kg

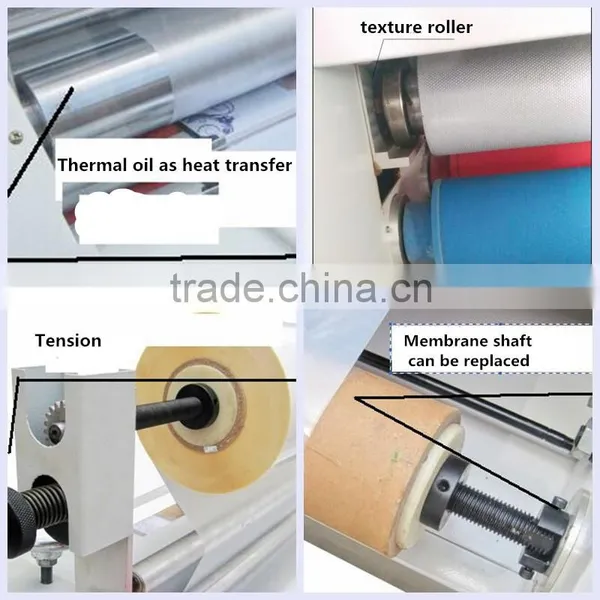

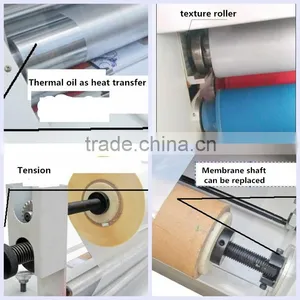

Main Feature

  • Embossing and plain hot lamination in one machine
  • Adjustable laminating speed
  • Adjustable roller position suitable for various material thickness
  • 11 texture designs to be choosed,one texture design in the machine
  • Texture roller can be changed
  • Automaticly collect the laminated sheet
  • Small occupation
  • Light weight and easy to use
  • Easy to clean the machine with alcohol

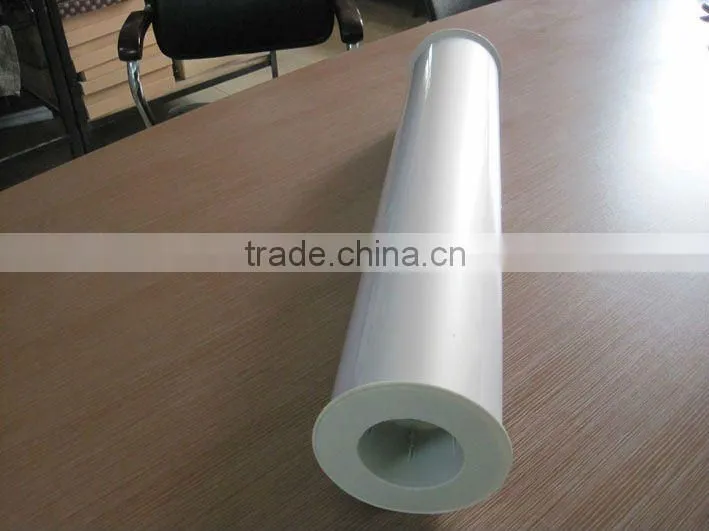

Materials:Thermal Film:





24 Inch 650mm Embossing And Plain Bopp Laminating Machine





Package





Plywood box is suitable for the export and long transportation,free fumigation





Payment





We usually accept payment terms :T/T,WESTERN UNION,L/C.and quotation:EXW. FOB.CFR.CIF .FCA.CIP. CPT. ,and so on.





Shipment







Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.) or FCA,

We arrange the local shipment,which’s easy for you to control the transportation cost.







Warranty





1 years warranty for the machines.
- Any warranty shipping cost to us is responsible by buyer





Certificate OF Quality





 24 Inch 650mm Embossing And Plain Bopp Laminating Machine
