Specifications
Temperature controlled soldering Iron and a temperature and air flow controlled hot air rework gun

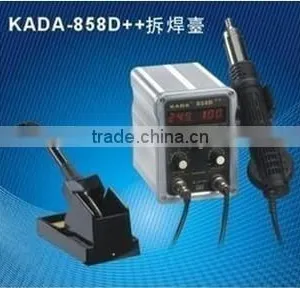

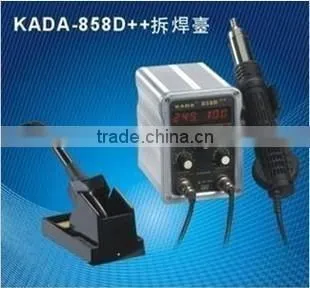

Kada 858D+ Rework Hot Air Solder With Soldering Iron 220V SMD Digital Display Soldering Stations
Description:
Kada 858D+ Rework Hot Air Solder is hot selling now.
Kada 858D+ Rework Hot Air Solder including temperature controlled soldering Iron and a temperature and air flow controlled hot air rework gun combo with space saving microcomputer station control unit.
Its extruded aluminium body for robust, long life system. Not some folded thin sheet metal type offered elsewhere.
Its small compact 4 x 6 inches or 100 x 150mm footprint to fit busy workbenches
Its extruded aluminium body for robust, long life system. Not some folded thin sheet metal type offered elsewhere.
Its small compact 4 x 6 inches or 100 x 150mm footprint to fit busy workbenches
40W Soldering pencil:
- It can quick heating (to soldering temperature within seconds)
- It is fully adjustable temperature from 200 – 480 C
- < 2 mV voltage leakage
- It has long Life ceramic element
- It is with standard Hakko type tips
- Its soft cable for operation comfort.
- With proper tip, can be used for LEAD FREE soldering
Hot Air Handpiece:
- Close Circuit Temperature Sensing technology enable you to rework on FLEXIBLE plastic circuit boards.
- Adjustable airflow and temperature make the unit suitable for multiple usages from soldering to heat shrinking.
- Sensor on handpiece put the blower in to standby mode when placed on its holder.
- Automatic cooling function to prolong the life of heating elements.
- Brushless fan for quiet operation and trouble free usage life.
- 100 lpm blower capacity
- Temperature range 100 – 450 C
- Noise < 45 dB
- Flexible soft cable for operating comfort
- 3 Nozzles are included in this sale, 2x medium and 1x large
Kada 858D+ Rework Hot Air Solder is suitable for soldering/unsoldering components such as QFP, SOIC, PLCC, BGA, connectors, connecting cables etc.
Kada 858D+ Rework Hot Air Solder can also be used for heat shrinking, heating, paint removal, Glue removal, Defrosting, Preheating, vulcanising and a million of other usages.
If you haven't used a hot air station to solder surface mount, you don't know what you are missing. Sure, you can use a lot of hand techniques to do surface mount. However, removing SMD is trivially easy with hot air. Also, some delicate components like ceramic capacitors don't like to be suddenly heated up, so hot air is best for those too.
Kada 858D+ Rework Hot Air Solder Including 3 different nozzles for the hot air gun, to cover a wide range of rework jobs.
What you may need when you doing reballing?
1. Solder Flux
2. Soldering wire/desoldering wick
3. Solder ball
4. Bga Stencils
5. Bga reballing station
6. And other bga rework accessories
