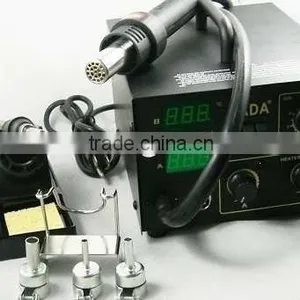

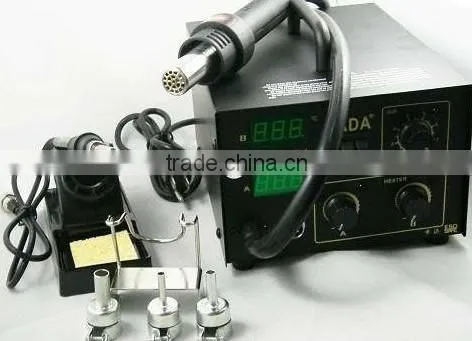

KADA 852D+ Digital Display SMT SMD 2 in 1 Soldering Systerm 110V
Description:
KADA 852D+ SMT SMD 2 in 1 soldering systerm is under discount now. KADA 852D+ 110V is available.
Advantage:
This is a brand new, Model 852D+ soldering/rework station from Kada, an entry level desoldering/soldering rework station for surface or hole mount components. With 852D+ , you get a temperature controlled rework station in a compact and convenient setup for the Air and Heater knobs to control the heat and volume of air produced.
With the hot air output of this unit, you can perform surface mount rework in seconds, without damage to either components or PC boards. Just attach a nozzle onto the hot air tool, place the nozzle over the QFP, SOP, PLCC or SOJ to be desoldered, apply hot air to melt the solder without ever touching the component or PC board, and gently lift the component from the board. Soldering of the replacement SMD is just as easy. Other applications include thermal testing of electronic components, shrink-wrapping protective packaging, and welding thermoplastics.
The KADA 852D+ SMD allows soldering of QFPs and SOPs with its wide range of adjustment of the air volume and temperature settings. For greater efficiency the same nozzle can be used for both soldering and desoldering. It also features automatic cooling to protect the heating element and handle when the power switch is turned off. This rework station is ESD-Safe and it is made of metal and coated with a static-dissipative paint and allows for Soldering and desoldering QFPs and SOPs.
Specification of KADA 852D+:
Power Voltage: 220V AC (110V AC)
Power Consumption: 270W (Max.)
Pump: Diaphragm Pump
Capacity: 24L/min (Max.)
Leakage Voltage of Iron Tip: <0.5mV
Standard Iron Tip: AT-900M
Hot Air Temperature: 100 to 480C
Tip of Iron Temperature: 200 to 480C
Outer Dimensions: 187(W)x150(H)x245(D)mm
Packing included with KADA 852D+ are as following :
1. KADA 852D+ main body
2. Hot air nozzles
3. Hot air gun
4. Soldering iron
5. Soldering iron tips
What you may need when you doing reballing?
1. Solder Flux
2. Soldering wire/desoldering wick
3. Solder ball
4. Bga Stencils
5. Bga reballing station
6. And other bga rework accessories
