High Quality Good Abrasion Resistant Uhmwpe Rod,abrasion Resistant Uhmwpe Rod,abrasion Resistant Hdpe/ Uhmwpe and pp Rod

Name: High Quality Good Abrasion Resistant Uhmwpe Rod,abrasion Resistant Uhmwpe Rod,abrasion Resistant Hdpe/ Uhmwpe and pp Rod
Brand: XINXING
Availability: InStock

FOB Price

US$ 3 - 6 / Kilogram

1000 Kilograms(Min. Order)

Port Qingdao Tianjin
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	XINXING
Model Number	XXR25	Material	PE
Thickness	5-200mm	Size	as your request

Product Description

High quality good abrasion resistant uhmwpe rod,abrasion resistant uhmwpe rod,abrasion resistant hdpe/ uhmwpe and pp rod

High quality good abrasion resistant uhmwpe rod

HDPE rod, high quality high-density polyethylene HDPE rod

HDPE rod, UHMW Natural Round Rod

HDPE rod, UHMWPE Rod, nylon rod

wear resistant White HDPE Rods and bars manufacturer

For sale wear resistant White HDPE Rods and bars

Product Description

1.Application:

It can be used as anti-erode machines components, available for wire and cable insulation

material of high frequency insulation and high voltage insulation, soundproof material for air-conditioner, cushion material of packing industry, food machine, water-sports material. The density is 0.954g/cm3.

--Chain and belt guides

--Sliding and power transmission components

--Chain sprockets and gear wheels

--Sliding components and bearings

--Track and guide rollers

2.specification:

diameter:15mm-300mm

size:1000,2000mm or as order.

3.Technology parameters:

Item	Density	Tensile strength	vicatsoftening temperature:
Unit	g/cm	Mpa	oC
Target	0.919-0.925	>25	>90

4. Key Features and Benefits Of PE Rod

RoHS & REACH compliant ,Stain resistant ,Lightweight , Grafitti resistant ,Moisture resistant ,Low coefficient of friction ,Durable ,Odor resistant ,Abrasion resistant ,Easily fabricated ,Chemical resistant ,High impact strength ,Weldable/Bendable - suitable for fabrication, UV Resistant - Black only, Physiologically inert - approved for food applications (Natural only), Electrical insulation - it is a good insulator, Weatherproof - it doesn't absorb water, Chemical resistance - resists corrosive chemical

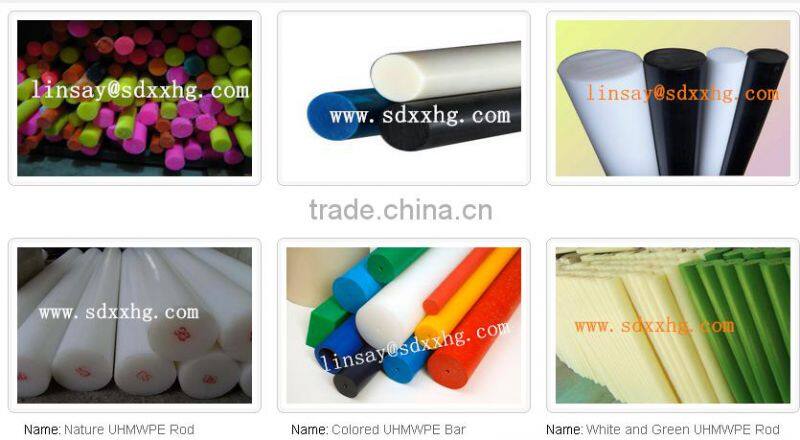

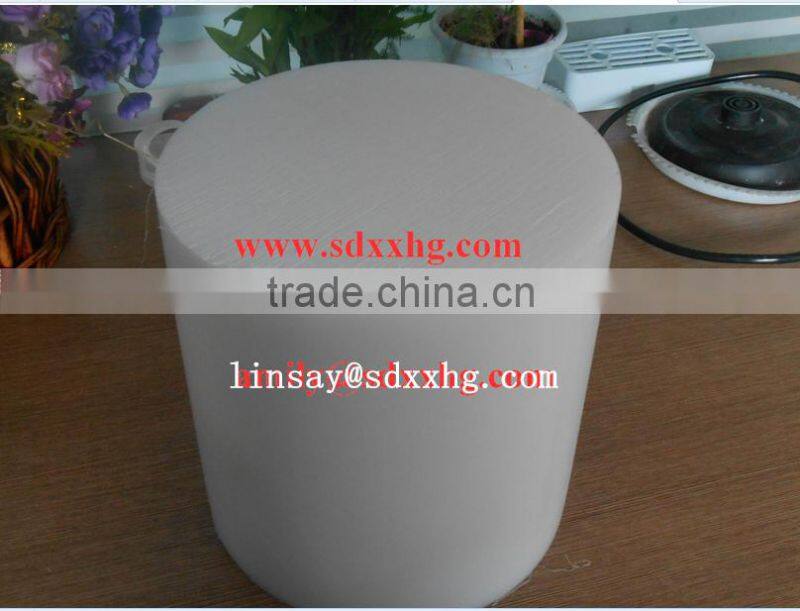

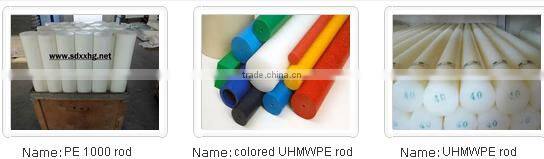

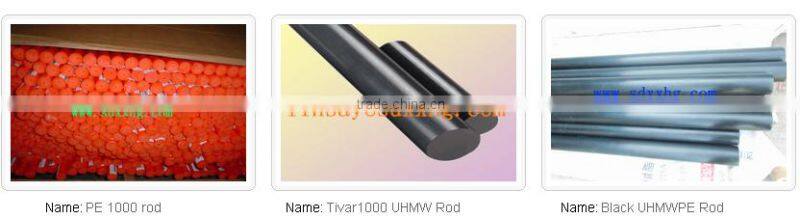

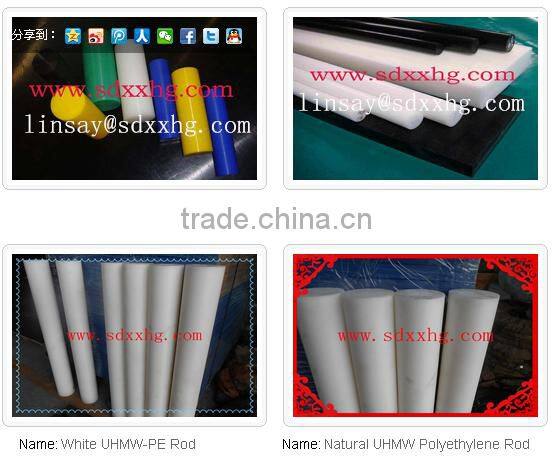

1.UHMWPE rod (ultra high molecular weight polyethylene rod)

Product name	UHMWPE rod
Features	Self-lubricating. Good Abrasion&wear resistance (15 times more resistant to abrasion than carbon steel). Corrosion & impact resistant. low temperature resistant. Non-water absorption Easy to machine
Size	Dia(diameter):20-300mm Length:250mm,500mm,1000mm,etc. * We can also provide any other size as your special need.
Color	white,black,red,blue,green,yellow,etc.
Application	Application: Replace carbon steel, stainless steel, bronze used in textile, paper making, food machinery, transportation, medical machinery, coal machinery, chemical industry and other departments. Examples: Technical spindle, picking stick, gear, coupling, flower stem, buffer block, eccentric block, rod bushing and other wear resistant parts in textile industry. Besides, owing to its wear resistant is better than carbon steel, it can be shaped various different parts for machinery, including the gear in food machinery, worm gear, worm, bearing etc.

Property data sheet of HDPE/UHMWPE rod:

Item	Test method	Test result	unit
Specific weight	ASTM D-792	0.96	g/cm3
Yield strength	ASTM D-638	25	MPa
Ultimate strength	ASTM D-638	45	MPa
Breaking Elongation	ISO527	355	%
Impact strength	ISO179	130	Mj/mm2
Abrasion	ISO15527	83	Steel=100
Shore Hardness	ISO868	65	Shore D
Friction Coefficient	ASTM D-1894	0.11	Unitless
Coefficient of thermal expansion	ASTM D-696	0.0002	℃
Volume resistifity	IEC600093	≤1000	∩*cm
Surface resistifity	IEC600093	≤1000	∩
Water Absorption	ASTM D-570	0.0094	%
Melt point	ASTM D-3417	138	℃

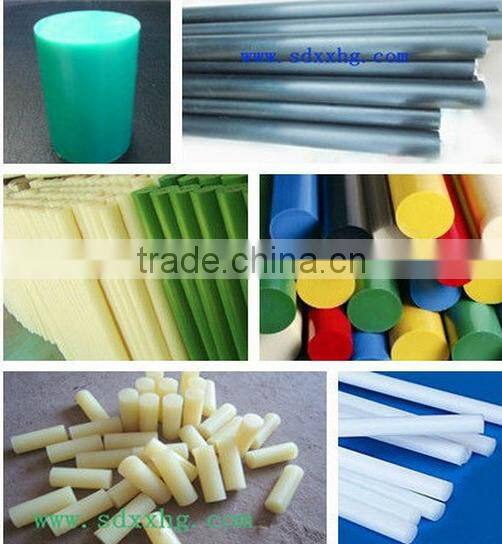

2. HDPE rod (high density polyethylene rod)

Product name	HDPE rod
Features	Self-lubricating. Lightweight Durable Corrosion & impact resistant. Great weather resistance Easy to weld but difficult to bond. Easily fabricated
Size	Dia(diameter):10-480mm Length:250mm,500mm,1000mm,etc. * We can also provide any other size as your special need.
Color	white,black,red,blue,green,yellow,etc.
Application	Application: Replace carbon steel, stainless steel, bronze used in textile, paper making, food machinery, transportation, medical machinery, coal machinery, chemical industry and other departments. Examples: Technical spindle, picking stick, gear, coupling, flower stem, buffer block, eccentric block, rod bushing and other wear resistant parts in textile industry. Besides, owing to its wear resistant is better than carbon steel, it can be shaped various different parts for machinery, including the gear in food machinery, worm gear, worm, bearing etc.

Property data sheet of HDPE rod

Property	Testing Method	Value
Molecular Weight 1E6 g/mol	ASTM D6474	1-3
Density g/cm³	ISO 1183-1	0.94-0.98
Abrasion %	ISO15527	100
Dynamic coefficient of friction	ISO8295	≤0.15
Shore hardness	ISO868	≥63
Water absorption %	ASTM D-570	≤0.1
Temperature resistance 0C		-200 to +80
Elongation at break at 23 degree %	ISO 527	≥200
Melt Temperature 0C		130-140

Our Services

Why choose us:

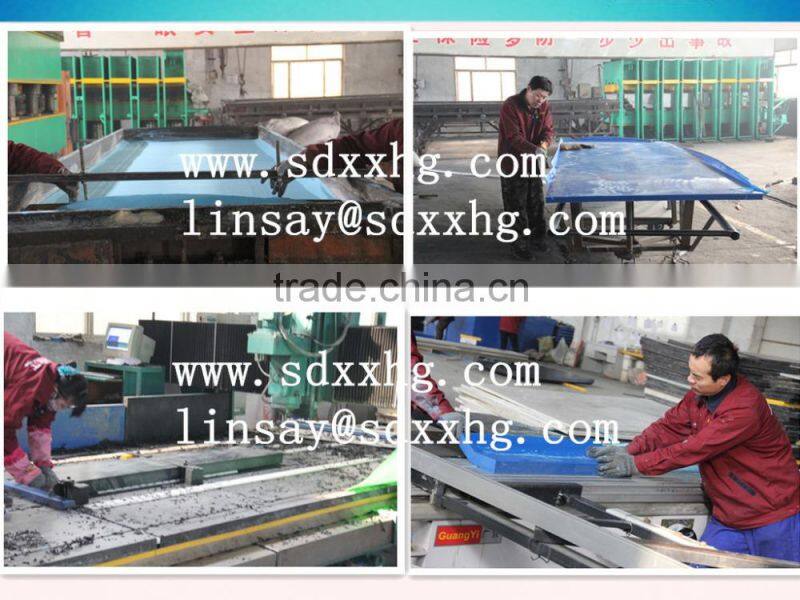

1. The quantity of our presses is the most in UHMWPE industry

2. Have a long history of nearly twenty years, so we have rich experience and technology in UHMWPE industry.

3. We design the presses by ourself with special two machine recycled which can reduce time production, so our year output is the most.

4. We have our own laboratory, have the most excellent sales team, have our own technique department and supplies to the products all over the world to many large customers.

We promise to:

Produce exceptional quality products

Give knowledgeable, helpful and attentive service

Provide quick responses and fast turn-around times

For Engineer Plastics, XINXING is your first choice.

We would like to give you all the help!
