Round UHMW Plastic Rod, UHMW polyethylene Bar, Abrasion and impact resistant 10-490mm diameter HDPE rods
- 5000 Ton / Tons per Month
- Qingdao Tianjin
- T/T Credit Card
- China supply customized cheap colored 4mm plastic welding rods
- High Precision Plastic Injection Manufacturers Pom Rod Price Pom Peek Rod
- Pom Acetal Plastic In Stock Acetal Pom Supplier Custom
- Polyoxymethylene Rod Pom Sheet Material High Quality Plastic Bar Plastic Injection Manufacturers
- Pom Peek Rod High Precision Esd Acetal In Stock
- Pom Esd Material High Quality Engineering Plastics Factory Price Wholesale
Product Details
Place of Origin: | Shandong, China |
Product Description

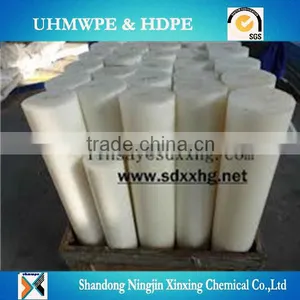

Round UHMW Plastic Rod, UHMW polyethylene Bar, Abrasion and impact resistant 10-490mm diameter HDPE rods
1.Application:
It can be used as anti-erode machines components, available for wire and cable insulation
material of high frequency insulation and high voltage insulation, soundproof material for air-conditioner, cushion material of packing industry, food machine, water-sports material. The density is 0.954g/cm3.
--Chain and belt guides
--Sliding and power transmission components
--Chain sprockets and gear wheels
--Sliding components and bearings
--Track and guide rollers
2.specification:
diameter:15mm-300mm
size:1000,2000mm or as order.
3.Technology parameters:
Item | Density | Tensile strength | vicatsoftening temperature: |
Unit | g/cm | Mpa | oC |
Target | 0.919-0.925 | >25 | >90 |
4. Key Features and Benefits Of PE Rod
RoHS & REACH compliant ,Stain resistant ,Lightweight , Grafitti resistant ,Moisture resistant ,Low coefficient of friction ,Durable ,Odor resistant ,Abrasion resistant ,Easily fabricated ,Chemical resistant ,High impact strength ,Weldable/Bendable - suitable for fabrication, UV Resistant - Black only, Physiologically inert - approved for food applications (Natural only), Electrical insulation - it is a good insulator, Weatherproof - it doesn't absorb water, Chemical resistance - resists corrosive chemical

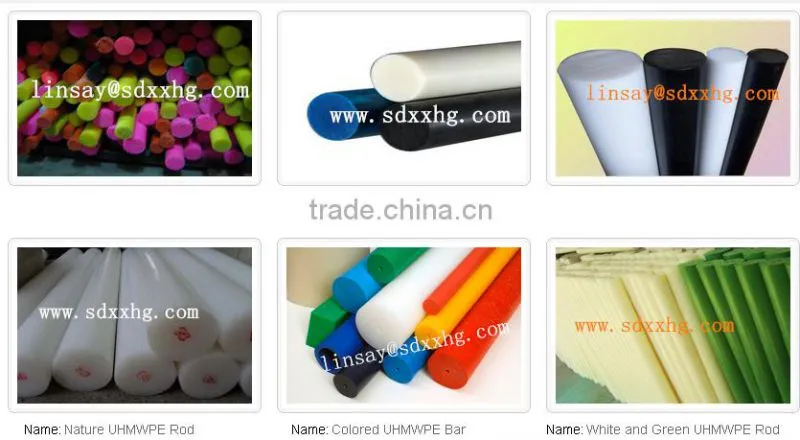

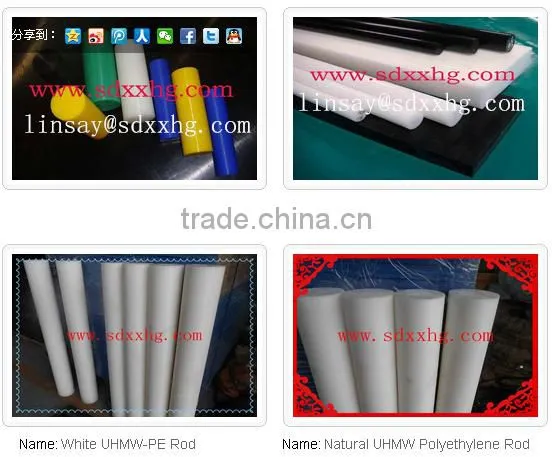

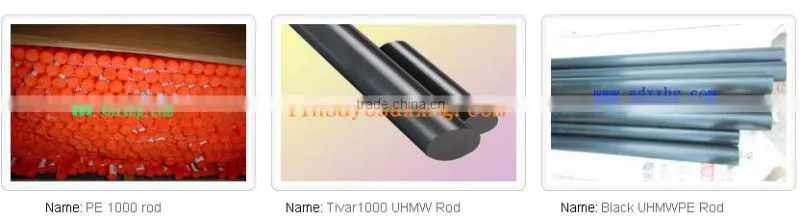

1.UHMWPE rod (ultra high molecular weight polyethylene rod)
Product name | UHMWPE rod |
Features | Self-lubricating. Good Abrasion&wear resistance (15 times more resistant to abrasion than carbon steel). Corrosion & impact resistant. low temperature resistant. Non-water absorption Easy to machine |
Size | Dia(diameter):20-300mm Length:250mm,500mm,1000mm,etc. * We can also provide any other size as your special need. |
Color | white,black,red,blue,green,yellow,etc. |
Application | Application: Replace carbon steel, stainless steel, bronze used in textile, paper making, food machinery, transportation, medical machinery, coal machinery, chemical industry and other departments.
Examples: Technical spindle, picking stick, gear, coupling, flower stem, buffer block, eccentric block, rod bushing and other wear resistant parts in textile industry. Besides, owing to its wear resistant is better than carbon steel, it can be shaped various different parts for machinery, including the gear in food machinery, worm gear, worm, bearing etc. |
Property data sheet of HDPE/UHMWPE rod:
Item | Test method | Test result | unit |
Specific weight | ASTM D-792 | 0.96 | g/cm3 |
Yield strength | ASTM D-638 | 25 | MPa |
Ultimate strength | ASTM D-638 | 45 | MPa |
Breaking Elongation | ISO527 | 355 | % |
Impact strength | ISO179 | 130 | Mj/mm2 |
Abrasion | ISO15527 | 83 | Steel=100 |
Shore Hardness | ISO868 | 65 | Shore D |
Friction Coefficient | ASTM D-1894 | 0.11 | Unitless |
Coefficient of thermal expansion | ASTM D-696 | 0.0002 | ℃ |
Volume resistifity | IEC600093 | ≤1000 | ∩*cm |
Surface resistifity | IEC600093 | ≤1000 | ∩ |
Water Absorption | ASTM D-570 | 0.0094 | % |
Melt point | ASTM D-3417 | 138 | ℃ |
2. HDPE rod (high density polyethylene rod)
Product name | HDPE rod |
Features | Self-lubricating. Lightweight Durable Corrosion & impact resistant. Great weather resistance Easy to weld but difficult to bond. Easily fabricated |
Size | Dia(diameter):10-480mm Length:250mm,500mm,1000mm,etc. * We can also provide any other size as your special need. |
Color | white,black,red,blue,green,yellow,etc. |
Application | Application: Replace carbon steel, stainless steel, bronze used in textile, paper making, food machinery, transportation, medical machinery, coal machinery, chemical industry and other departments.
Examples: Technical spindle, picking stick, gear, coupling, flower stem, buffer block, eccentric block, rod bushing and other wear resistant parts in textile industry. Besides, owing to its wear resistant is better than carbon steel, it can be shaped various different parts for machinery, including the gear in food machinery, worm gear, worm, bearing etc. |
Property data sheet of HDPE rod
Property | Testing Method | Value |
Molecular Weight 1E6 g/mol | ASTM D6474 | 1-3 |
Density g/cm³ | ISO 1183-1 | 0.94-0.98 |
Abrasion % | ISO15527 | 100 |
Dynamic coefficient of friction | ISO8295 | ≤0.15 |
Shore hardness | ISO868 | ≥63 |
Water absorption % | ASTM D-570 | ≤0.1 |
Temperature resistance 0C |
| -200 to +80 |
Elongation at break at 23 degree % | ISO 527 | ≥200 |
Melt Temperature 0C |
| 130-140 |
Why choose us:
1. The quantity of our presses is the most in UHMWPE industry
2. Have a long history of nearly twenty years, so we have rich experience and technology in UHMWPE industry.
3. We design the presses by ourself with special two machine recycled which can reduce time production, so our year output is the most.
4. We have our own laboratory, have the most excellent sales team, have our own technique department and supplies to the products all over the world to many large customers.
We promise to:
Produce exceptional quality products
Give knowledgeable, helpful and attentive service
Provide quick responses and fast turn-around times
For Engineer Plastics, XINXING is your first choice.
We would like to give you all the help!
