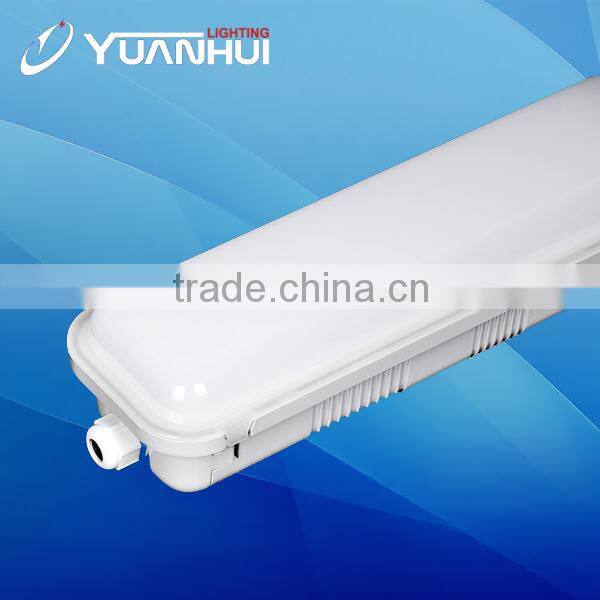

New Led Tri-proof Light 50W

Specifications

     New Led Tri-proof Light 50W

Model: WP-56W

4ft LED ip65 LED Vaporproof led light fixture

   1.Model Name:LED triproof lamp

   2.Model No:WP-56W

   1.Housing Material:PC

   2.Diffuser Material:PC

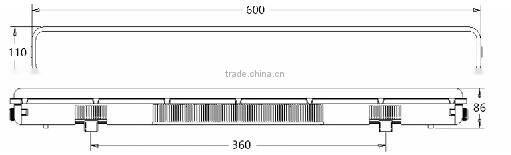

   3.Product Size (mm):1530*110*86

1.Input Voltage:AC100-240V,277V

2.Input Frequency:50/60Hz

3.Power Factor:≥0.95

4.Input Power:56W

5.Lamp Efficiency:90%

6.LED:3528

7.LED Quantity:896PCS

8.LED Lumen:Clear Diffuser:6400LM / Opal Diffuser:5700LM

9.Color Temperature:Warm White:2700-3000K   Cool White:4000-4500K                     Daylight:6000-6500K

10.Ra:Ra>80

11.Working Temperature:Working Environment: -35°C-45°C

12.IP Rated:IP65

13.Lifetime:>50000h

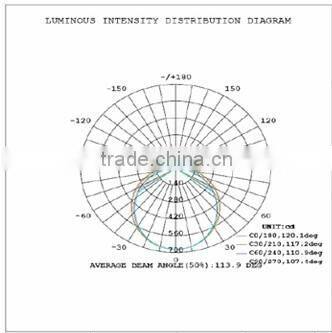

1).Luminous Intensity Distribution Diagram:

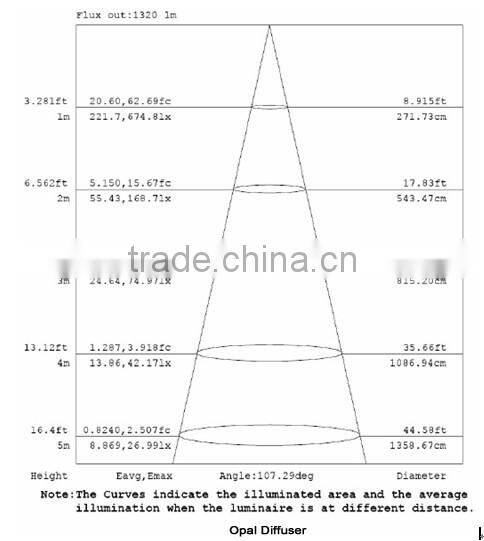

   2).AAI Figure:

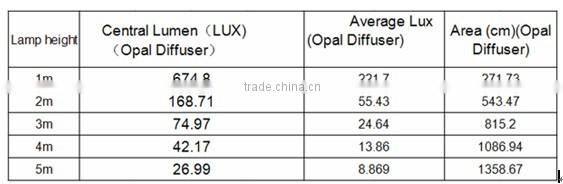

3).Illumination data:

LED triproof lamp is an efficeint outdoor lamp,with high output lumen. It is widely used in Car Parking Lot, Warehouse, Train station and other Publich areas.

Advantages:

1).The first advantage of this lamp is its heat dissipation system, which increase lamp’s lifetime largely. In detail, it uses heat sink and MCPCB to dissipate the heat caused by LED chips and using Air convection to cool the working environment of driver.

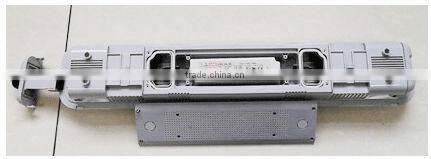

2).Using Air convection theory: The driver of this lamp is isolated in a separate room, we call it ventilated driver room, with a small board coving the top. On the board, there are many small holes, and in the bottom of the room, has four small holes.

Ventilated driver room: warm air goes out through driver cover holes and cool air supplies from bottom holes.

3).Moreover, this lamp has function of sensor, emergency kit and DALI system.

   If customers want the lamp light on automatically when people pass and turn off or only keep 20% light when people leaves, it could put sensor into the lamp. Or if other customers want the lamp still light on for 2 to 3 hours when the power cut, it could put

emergency kit inside the lamp. Even, we could apply DALI system with this lamp, using computer to control all lamps in one area, it is really easy and efficient, saving lots of work for people.

4).The bright spot of the lamp is the fast connect system, by using male and female connectors, it could save 70% time to install lamps and save lots of labor cost nnect wires to the removable male connector, and push it into the lamp, connect with female connector.

5). It has all certifacates that authorized by DEKRA test lab, including CE-LVD, EMC, ROHS, GS, SAA, C-TICK, UL, CUL, DLC.
